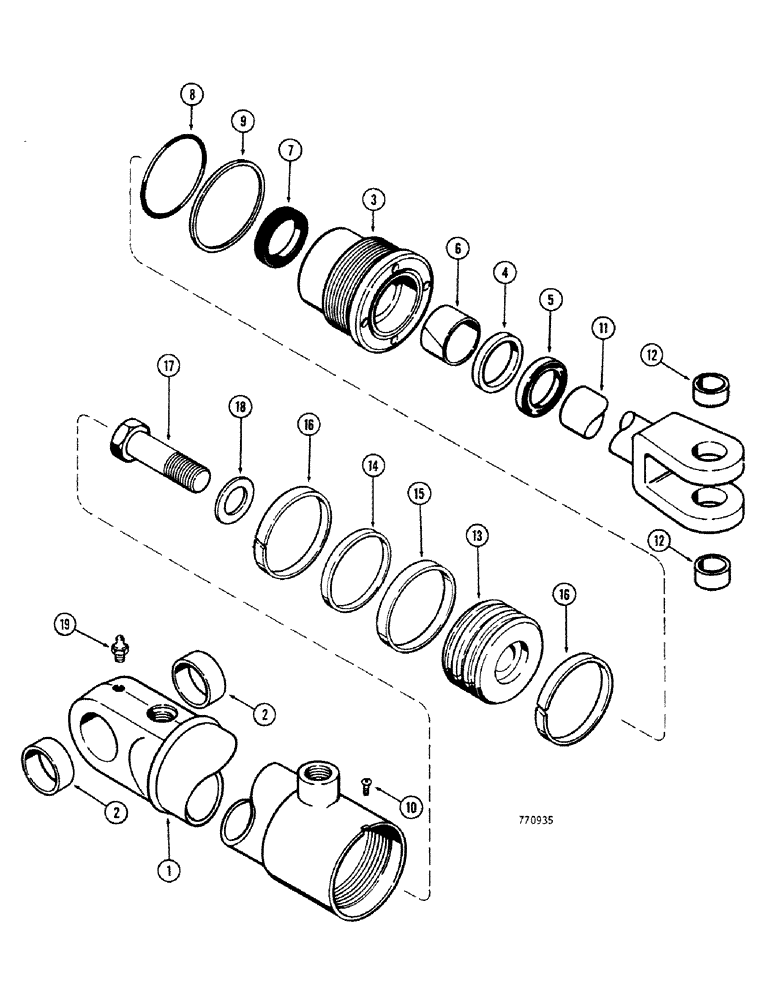

Запчасти Case 680CK (280) - G101225 LOADER HYDRA-LEVELING CYLINDER, 3" DIA. CYLINDER W/ 7 1/4" STROKE W/ ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

G101225

CYLINDER

ASSEMBLY - hydra-leveling, Includes: Ref. 1 - 19

2шт.

1

D35129

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G34622

SEAL

GLAND ASSEMBLY - cylinder, Inlcudes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER rod

1шт.

Part of Seal Kit P/N G101290

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING center

1шт.

Part of Seal Kit P/N G101290

1шт.

7

D36970

CUP

SEAL rod

1шт.

Part of Seal Kit P/N G101290

1шт.

Service option - extreme heat or cold

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G101290

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit P/N G101290

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33556

ROD

ASSEMBLY - piston, 1-3/4" (44 MM) O.D., Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G100704

PISTON

- cylinder

1шт.

14

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

SEAL piston

1шт.

Part of Seal Kit P/N G101290

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING seal backup

1шт.

Part of Seal Kit P/N G101290

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear

2шт.

Part of Seal Kit P/N G101290

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G101290

SEAL

KIT - seal, Includes Ref. 5, 6, 7, 8, 9, 14, 15, 16 and G100777

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - extreme heat or cold

1шт.

Part of Seal Kit P/N G101290

1шт.
