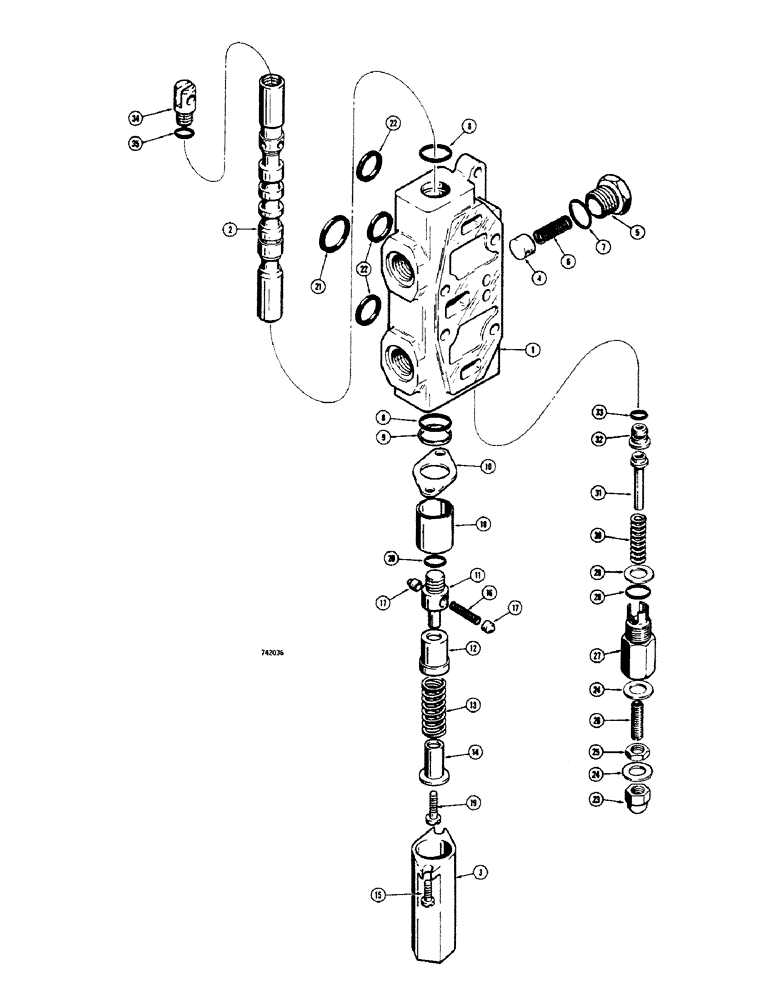

Запчасти Case 680CK (276) - L46721 3 POINT HITCH VALVE, D45435 LIFT SECTION (35) - HYDRAULIC SYSTEMS

D45435

SECTION - lift, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

D66312

CAP - valve

1шт.

4

D26824

SPOOL

POPPET - check

1шт.

5

D30696

CYLINDER END CAP

CAP - check valve

1шт.

6

D26826

COMPRESSION SPRING

SPRING - section

1шт.

7

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring

2шт.

9

D32215

RING

- backup

1шт.

10

D40817

PLATE - retaining

1шт.

11

D32090

RETAINER - poppet

1шт.

12

D32093

RETAINER - spring

1шт.

13

D32094

SPRING - centering

1шт.

14

D32095

RETAINER

- spring

1шт.

15

D40818

SCREW - fillister head, 1/4" - 20 NC x 1/2"

2шт.

16

D32091

SPRING - poppet

1шт.

17

D32092

POPPET - section

2шт.

18

D66313

SLEEVE - poppet

1шт.

19

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- fillister head, 1/4" - 20 NC x 3/4"

2шт.

20

D40816

O-RING

SEAL - "O" ring

1шт.

21

905952R1

COTTER PIN,M3.2 x 50

SEAL - quad ring

1шт.

22

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

SEAL - quad ring

3шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) must be set to correct pressure when installed on valve, Includes: Ref. 23 - 33

2шт.

23

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

24

23150

WASHER

GASKET - copper

2шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

26

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

28

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

29

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

33

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

34

D66314

LUG - spool

1шт.

35

D40816

O-RING

SEAL - "O" ring

1шт.
