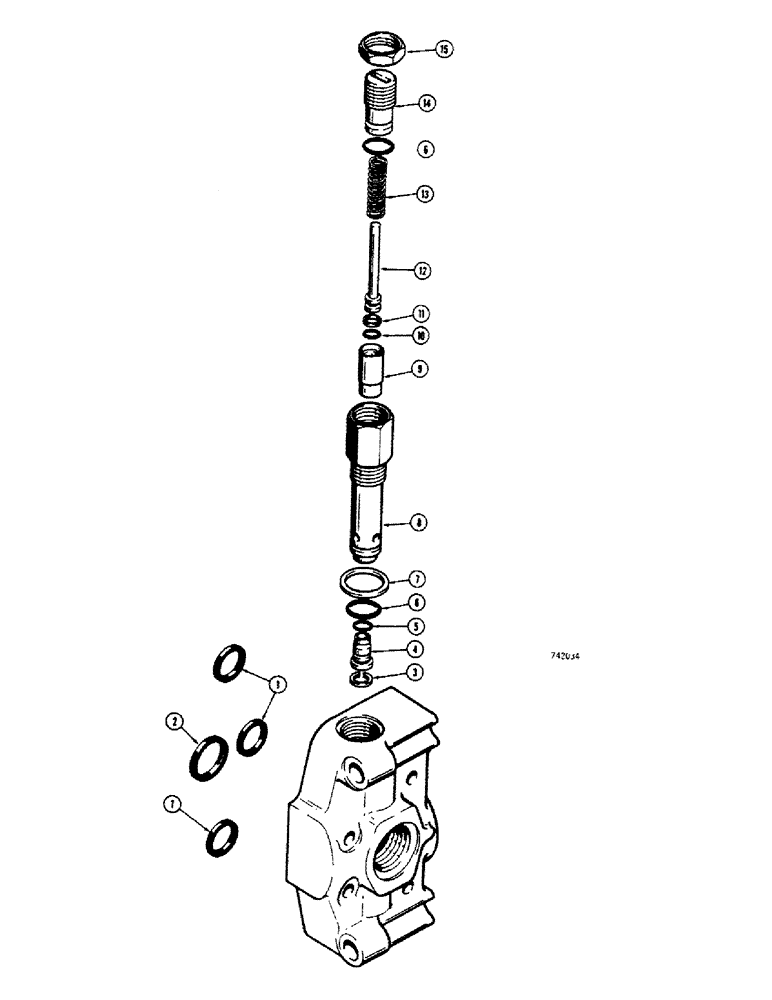

Запчасти Case 680CK (272) - L46721 3 POINT HITCH VALVE, D26816 INLET SECTION (35) - HYDRAULIC SYSTEMS

D26816

SECTION - valve inlet, Includes: Ref. 1 - 15

1шт.

1

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - Quad ring

3шт.

2

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - Quad ring

1шт.

D31989

CARTRIDGE

- relief valve, main (1800 PSI), Includes: Ref. 3 - 15

1шт.

3

D26858

RING, SNAP

RETAINER - snap ring, poppet

1шт.

4

D26856

POPPET - relief valve

1шт.

5

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring, poppet

1шт.

6

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, shell and adjusting screw

2шт.

7

D26859

X

WASHER - gasket, shell

1шт.

8

D26848

SHELL - cartridge

1шт.

9

D26855

SEAT

- floating

1шт.

10

A11026

GASKET

SEAL - "O" ring, plunger

1шт.

11

D26853

BACK-UP RING

RING - backup, plunger seal

1шт.

12

D26852

PLUNGER - displacement

1шт.

13

D26860

VALVE SPRING

SPRING - compression

1шт.

14

D26849

SCREW - spring adjusting

1шт.

15

D26850

NUT

- lock, adjusting screw

1шт.
