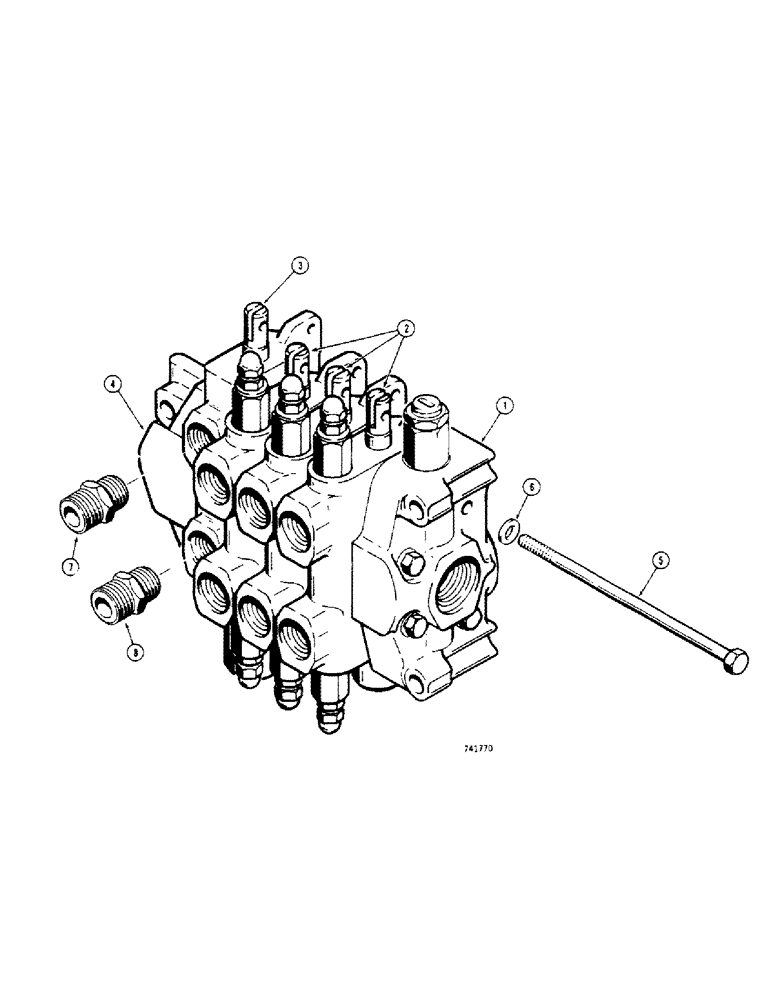

Запчасти Case 680CK (270) - L46721 3 POINT HITCH CONTROL VALVE (35) - HYDRAULIC SYSTEMS

L46721

VALVE ASSEMBLY - 3-point hitch, Includes: Ref. 1 - 8

1шт.

1

D26816

SECTION - inlet (Parts list Figure 272)

1шт.

2

D36813

VALVE BLOCK

SECTION - working (Pitch, tilt and implement) parts list Figure 274

3шт.

3

D45435

SECTION - lift (Parts list Figure 276)

1шт.

4

L46853

SECTION - outlet

1шт.

5

D66301

STUD - tie, valve sections(9-3/8" long)

4шт.

6

195-25

WASHER,3/8"

- plain (), Includes: Ref. 7 3/8"

4шт.

7

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTOR - upper port, lift section

1шт.

8

218-5260

BUSHING

ADAPTOR - lower port, lift section

1шт.
