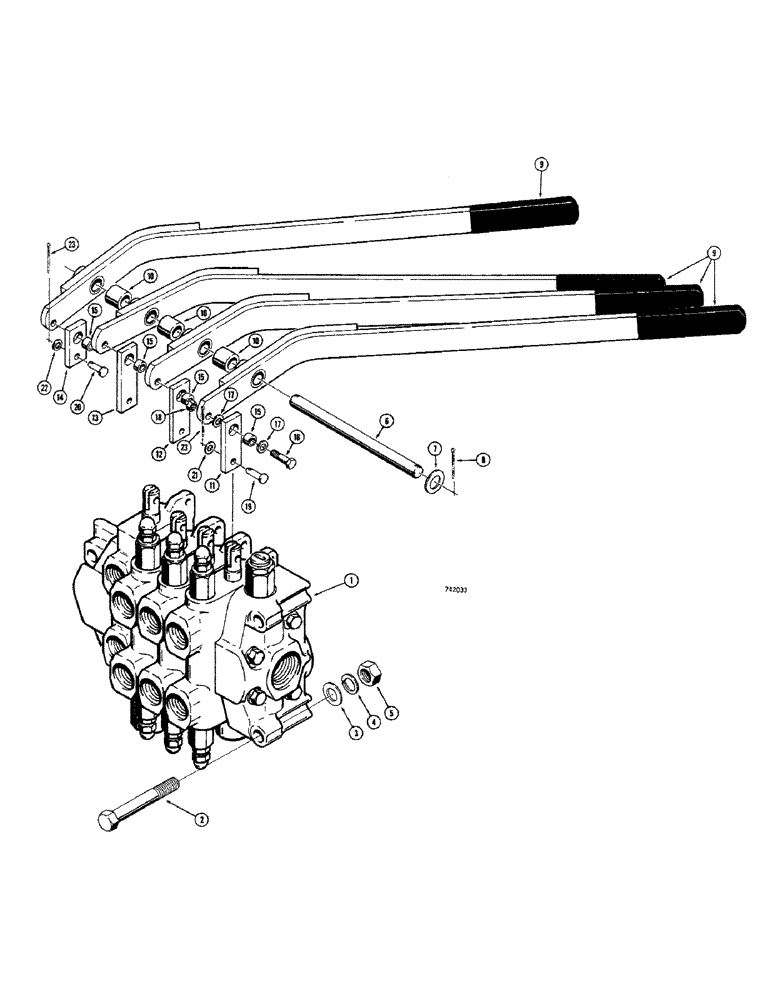

Запчасти Case 680CK (268) - 3 POINT HITCH, CONTROL LEVERS AND VALVE (35) - HYDRAULIC SYSTEMS

1

L46721

VALVE - control, 3 point hitch (Parts list Figure 270)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- plain () 3/8"

3шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

L46607

SHAFT - pivot, control levers

1шт.

7

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

9

L46639

LEVER - control, spool

4шт.

10

L46605

SPACER - control lever

3шт.

11

L46602

LINK - auxiliary lever to valve spool

1шт.

12

L46603

LINK - tilt lever to valve spool

1шт.

13

L46604

LINK - pitch lever to valve spool

1шт.

14

L46601

LINK - lift lever to valve spool

1шт.

15

L46729

SPACER - link

4шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

8шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 158 NC)

4шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lift spool only 3/8" x 1.060"

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

22

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

23

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

4шт.
