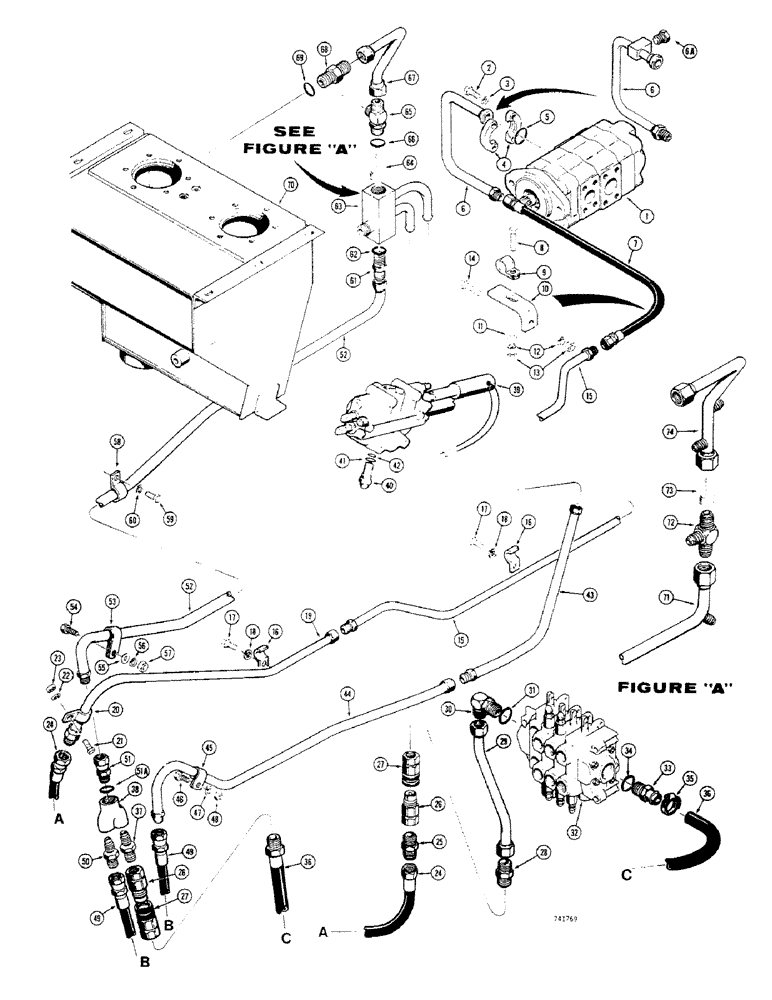

Запчасти Case 680CK (264) - 3 POINT HITCH HYDRAULICS, CONTROL VALVE PRESSURE AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

L26379

PUMP

- equipment (25 GPM and 17 GPM - 42 GPM total at 2000 PSI at 2000 RPM) parts list Figure 384

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

A16961

FLANGE

- split, 3/4"

2шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

L53121

TUBE,8, 7.5" L

- pump to backhoe valve, center inlet (At pump)

1шт.

6a

221-655

PLUG,Hex Hd, 3/4"-14

- tube, hex. head (3/4")

1шт.

7

D31796

HOSE

- pump to backhoe (29" long)

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

10

L47867

BRACKET - hose clamp

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

15

L47298

HARNESS

TUBE - pump to backhoe valve, center inlet (Intermediate)

1шт.

16

L25930

CLAMP

- tube

2шт.

17

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

18

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

19

L46689

TUBE - pump to backhoe valve, center inlet (Rear) 0.75" OD x 26.2, 15.1" L

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

24

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY, , To 3-Point Hitch Valve 0.75" ID x 33.50", SAE 100R2A

1шт.

25

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male

1шт.

26

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 392)

2шт.

27

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list Figure 392)

2шт.

28

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

29

L46719

TUBE - pressure, coupling to hitch valve

1шт.

30

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, Incl. Ref. 31 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

L46721

VALVE - control, 3 point hitch (Parts list Figure 270)

1шт.

33

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM - hose, valve outlet, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

36

L46720

HOSE - return, Serial Range: valve-junction

1шт.

37

217-1075

HYD CONNECTOR,1" - 11-1/2 NPTF x 3/4" - 14 NPTF

ADAPTER - straight, male

1шт.

38

L19608

CONNECTOR, ELEC

JUNCTION - return, 3 point hitch and loader valve

1шт.

39

REF

INSTRUCTION

VALVE - loader control (See Figures 350 thru 352 (1) for proper valve), Includes: Ref. 40 - 42

1шт.

40

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 41 and 42

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

42

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

43

L46460

TUBE - loader valve to junction (At loader valve) 1" OD x 16.7, 12.38" L

1шт.

44

L46459

TUBE

- loader valve, to junction (At junction)

1шт.

45

49840

CLAMP

- tube

1шт.

46

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.

49

L16416

HOSE ASSY.

HOSE - tube to junction (41" long)

1шт.

50

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, male

1шт.

51

L19599

FITTING

- straight, swivel, Includes: Ref. 51A

1шт.

51a

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

52

L46457

TUBE - return, junction to manifold (Used before tractor ser. no. 9106750) 1.25" OD x 75.6" L

1шт.

53

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

54

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

55

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

56

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

57

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

58

A14183

CLAMP - tube

1шт.

59

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

60

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

61

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, male (Used with L24325 manifold only), Includes: Ref. 62

1шт.

62

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

63

L24325

MANIFOLD - oil cooler (Used before tractor ser. no. 9106750)

1шт.

64

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

65

218-5293

TEE - return line (Used with L24325 manifold only), Includes: Ref. 66 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

66

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

67

L46755

TUBE,1.25" OD

- return, manifold to reservoir (Used before tractor ser. no. 9106750)

1шт.

68

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 69

1шт.

69

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

70

L47293

TANK

- hydraulic oil reservoir (See Figure 158 for filters and related parts)

1шт.

71

L48493

TUBE - return 1.25" OD x 5.25" L

1шт.

72

218-609

TEE - male

1шт.

73

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

74

L48487

TUBE - return, to reservoir 1.25" OD x 11.4" L

1шт.
