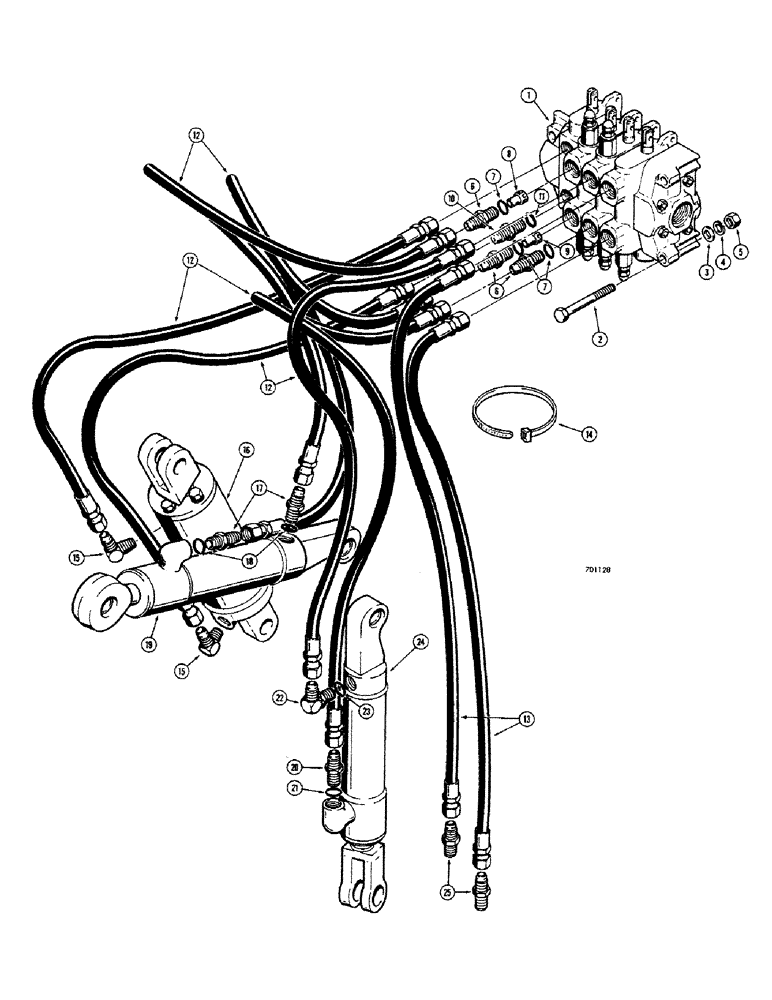

Запчасти Case 680CK (262) - 3 POINT HITCH HYDRAULICS, LIFT, TILT AND PITCH CYLINDERS (35) - HYDRAULIC SYSTEMS

1

L46721

VALVE - control, 3 point pitch (Parts list Figure 270)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- plain () 3/8"

3шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 7

7шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

L46628

RESTRICTOR - check, 3/32" dia. (Pitch cylinder upper port)

1шт.

9

L46627

RESTRICTOR - check, 1/16" dia. (Pitch cylinder lower port)

1шт.

10

L46724

CONNECTOR - special, restrictor (Lift cylinder lower port)

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

D23062

HOSE

- valve to lift, pitch and tilt cylinders (Upper and lower ports) 38" long

6шт.

13

L46723

HOSE

- valve to auxiliary cylinder (Upper and lower ports) 42" long

2шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - hose

1шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (Both ports of lift cylinders)

2шт.

16

A23530

CYLINDER

- hydraulic, lift (Parts list Figure 348)

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male (Both ports of pitch cylinder), Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

G32369

CYLINDER

- hydraulic, pitch (Parts list Figures 336-340)

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight (Rod end of tilt cylinder), Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Closed end of tilt cylinder), Incl. Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

G32368

CYLINDER - hydraulic, tilt (Parts list Figures 342-346)

1шт.

25

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight (Both ports of auxiliary cylinder)

2шт.
