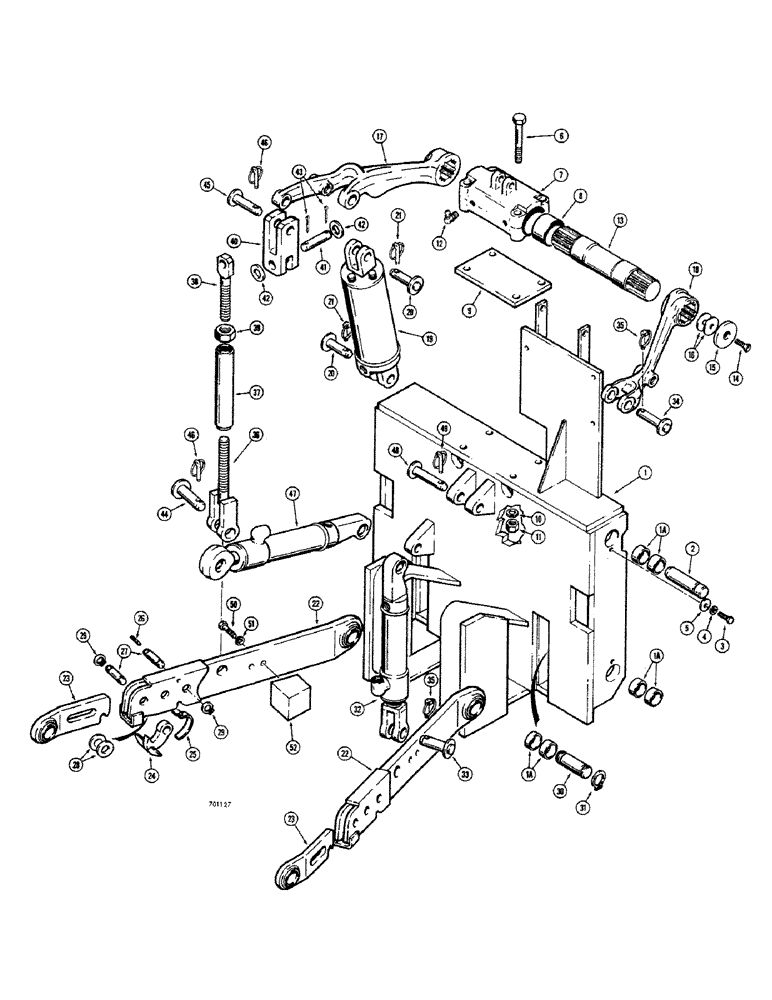

Запчасти Case 680CK (258) - 3 POINT HITCH, MOUNTING FRAME AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

1

L47854

FRAME - mounting, 3 point hitch, Includes: Ref. 1A

1шт.

1a

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- mounting frame

12шт.

2

L47855

PIN - mounting frame, Serial Range: frame-chassis

4шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

5

L40681

LOCK WASHER

- lock, mounting pin

4шт.

6

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

HHCS - 5/8" - 11 NC x 5-1/2"

4шт.

A23420

HOUSING ASSEMBLY - cross shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - cross shaft

1шт.

8

A23422

BUSHING

- pivot, cross shaft

2шт.

9

L46517

PLATE - mounting, housing

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1610

NUT,5/8"-11, G5, Hvy

- hex. (5/8" - 11 NC)

4шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

13

A23419

SHAFT - cross, lift arm

1шт.

14

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- machine, flat head (3/8" - 16 NC x 1")

2шт.

15

A27679

PLATE - lock, lift, Serial Range: arm-shaft

2шт.

16

A27678

SHIM - adjustment, cross shaft

1шт.

17

L46559

ARM - lift, L.H.

1шт.

18

L45712

ARM - lift, R.H.

1шт.

19

A23530

CYLINDER

- hydraulic, lift (Parts list Figure 348)

1шт.

20

L45730

PIN - mounting, lift cylinder

2шт.

21

D33805

PIN

- retaining, Klik

2шт.

A57732

ARM

ASSEMBLY - draft, R.H., Includes: Ref. 22 - 29

1шт.

A57733

ARM

ASSEMBLY - draft, L.H., Includes: Ref. 22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

ARM - draft, R.H.

1шт.

22

NSS

NOT SOLD SEPARAT

ARM - draft, L.H.

1шт.

23

A57196

LINK

- folding, draft arm (R.H.)

1шт.

23

A57197

LINK

- folding, draft arm (L.H.)

1шт.

24

A57199

LATCH

- folding link

1шт.

25

A57200

SPRING

- folding link latch

2шт.

26

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

27

A33530

PIN,19.05mm OD x 50.01mm L

- latch and folding link

2шт.

28

A34059

WASHER

- folding link latch pin (Inside)

1шт.

29

A33531

SNAP RING,#75, Ext

RING, Snap, , folding link latch pin #75, Ext

4шт.

30

D34654

PIN

- mounting, draft arm

2шт.

31

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

32

REF

INSTRUCTION

CYLINDER - hydraulic, tilt (Parts list Figure 342-346)

1шт.

33

L45728

PIN - cylinder mounting, lower

1шт.

34

L45724

PIN - cylinder mounting, upper

1шт.

35

D33805

PIN

- retaining, Klik

2шт.

36

L46558

YOKE AND ROD - adjustment, lower

1шт.

37

L45720

TURNBUCKLE - draft arm adjustment

1шт.

38

L46540

ROD - adjustment, upper

1шт.

39

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex., jam (1-1/4" - NC)

1шт.

40

L46496

SWIVEL - upper, Serial Range: rod-arm

1шт.

41

L46563

PIN - swivel to upper rod

1шт.

42

195-53

WASHER,1" x 2" x .134"

- plain (1")

2шт.

43

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, Split (Cotter), 1/8" x 1 1/2"

2шт.

44

L45728

PIN - mounting, lower yoke

1шт.

45

L46562

PIN - mounting, upper swivel

1шт.

46

D33805

PIN

- retaining, Klik

2шт.

47

REF

INSTRUCTION

CYLINDER - hydraulic, pitch (Parts list Figure 336-340)

1шт.

48

L46565

PIN - mounting, cylinder

1шт.

49

D33805

PIN

- retaining, Klik

1шт.

50

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

52

L47676

BLOCK - rub

2шт.
