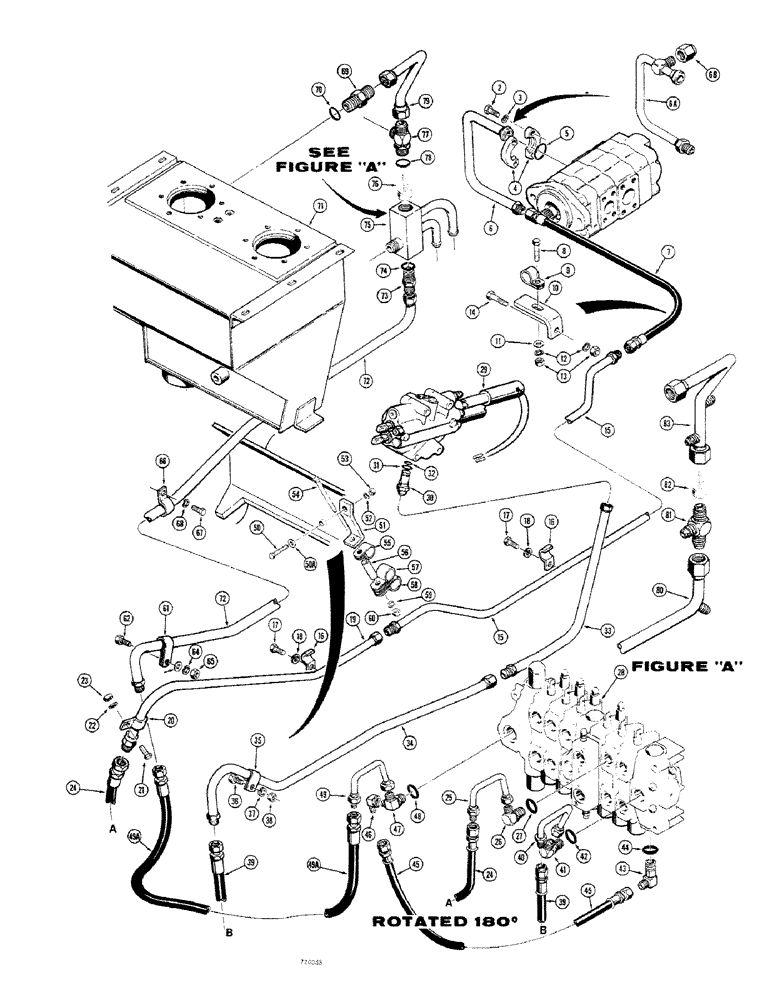

Запчасти Case 680CK (250) - BACKHOE HYDRAULICS, CONTROL VALVE PRESSURE AND RETURN LINES, (BEFORE TRAC. S/N 91085950) (35) - HYDRAULIC SYSTEMS

1

L26379

PUMP

- equipment (25 GPM and 17 GPM - 42 GPM total at 2000 PSI at 2000 RPM) parts list Figure 384

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

A16961

FLANGE

- split, 3/4"

2шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

L25900

TUBE ASSY.

TUBE - pump to backhoe valve, center inlet (At pump) when stock is exhausted, order 1-L51578 tube and 1-218-335 tube cap

1шт.

6a

L51578

TUBE

- pump to backhoe valve, center inlet (At pump)

1шт.

6b

218-335

CAP,37 Degree, 1 1/16"-12

- tube (1-1/16" - 12 NF)

1шт.

7

D31796

HOSE

- pump to backhoe (29" long)

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

10

L47867

BRACKET - hose clamp

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

15

L47298

HARNESS

TUBE - pump to backhoe valve, center inlet (Intermediate)

1шт.

16

L25930

CLAMP

- tube

2шт.

17

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

18

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

19

L46689

TUBE - pump to backhoe valve, center inlet (Rear) 0.75" OD x 26.2, 15.1" L

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

24

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY, , To Backhoe Valve, Center Inlet 0.75" ID x 33.50", SAE 100R2A

1шт.

25

L26462

TUBE ASSY.

TUBE - to backhoe valve, center inlet

1шт.

26

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 90 degrees, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

28

REF

INSTRUCTION

VALVE - hydraulic, backhoe control (Parts list Figure 364)

1шт.

29

REF

INSTRUCTION

VALVE - loader control (See page 350 for proper valve)

1шт.

30

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 31 and 32

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

32

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

33

L46460

TUBE - loader valve to backhoe valve, end inlet (At loader valve) 1" OD x 16.7, 12.38" L

1шт.

34

L46459

TUBE

- loader valve to backhoe valve, end inlet (At backhoe valve)

1шт.

35

49840

CLAMP

- tube

1шт.

36

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

38

25-104

NUT,1/4"-20, G5

1шт.

39

L16416

HOSE ASSY.

HOSE - tube to backhoe valve, end inlet (41" long)

1шт.

40

L16420

TUBE - at backhoe valve, end inlet (Before tractor ser. no. 9108158) 0.39" OD x 8.0, 3.5" L

1шт.

40

L51552

TUBE

- at backhoe valve, end inlet (Tractor ser. no. 9108158 and after)

1шт.

41

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 42 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

42

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

L42910

ELBOW UNION

ELBOW - adjustable, 90 degrees (Special), Includes: Ref. 44

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

45

D44752

HOSE

- return, end inlet to outlet (25" long)

1шт.

46

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

47

D44753

FITTING

TEE - special, return hose to outlet, Includes: Ref. 48

1шт.

48

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

49

L47877

TUBE,1.25" OD

- return, valve outlet to reservoir (Before tractor ser. no. 9108158)

1шт.

49

L51396

TUBE

- return, valve outlet to reservoir (Tractor ser. no. 9108158 and after)

1шт.

49a

L16417

HOSE ASSY.

HOSE - return, backhoe valve to reservoir (52-1/2" long)

1шт.

50

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

50a

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

51

L47541

BRACKET

- hose clamp support

1шт.

52

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

54

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

55

D40471

CLAMP

- hose, upper

1шт.

56

G49622

SPACER,5/8" Tube x 1 7/16"

- hose clamp

1шт.

57

R13931

CLAMP

- hose, center

1шт.

58

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose, lower

1шт.

59

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

60

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

61

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

62

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

63

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

64

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

65

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

66

A14183

CLAMP - tube

1шт.

67

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

68

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

69

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 70

1шт.

70

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

71

L47293

TANK

- hydraulic oil reservoir (See Figure 158 for filters and related parts)

1шт.

72

L46457

TUBE - return, backhoe valve to manifold 1.25" OD x 75.6" L

1шт.

73

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 74

1шт.

74

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

75

L24325

MANIFOLD - oil cooler

1шт.

76

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

77

218-5293

TEE - return line, Includes: Ref. 78 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

78

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

79

L46755

TUBE,1.25" OD

- return, manifold to reservoir

1шт.

80

L48493

TUBE - return 1.25" OD x 5.25" L

1шт.

81

218-609

TEE - male

1шт.

82

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

83

L48487

TUBE - return, manifold to reservoir 1.25" OD x 11.4" L

1шт.
