Запчасти Case 680CK (240) - BACKHOE HYDRAULICS, BOOM, DIPPER AND BUCKET CYLINDERS, BOOM (35) - HYDRAULIC SYSTEMS

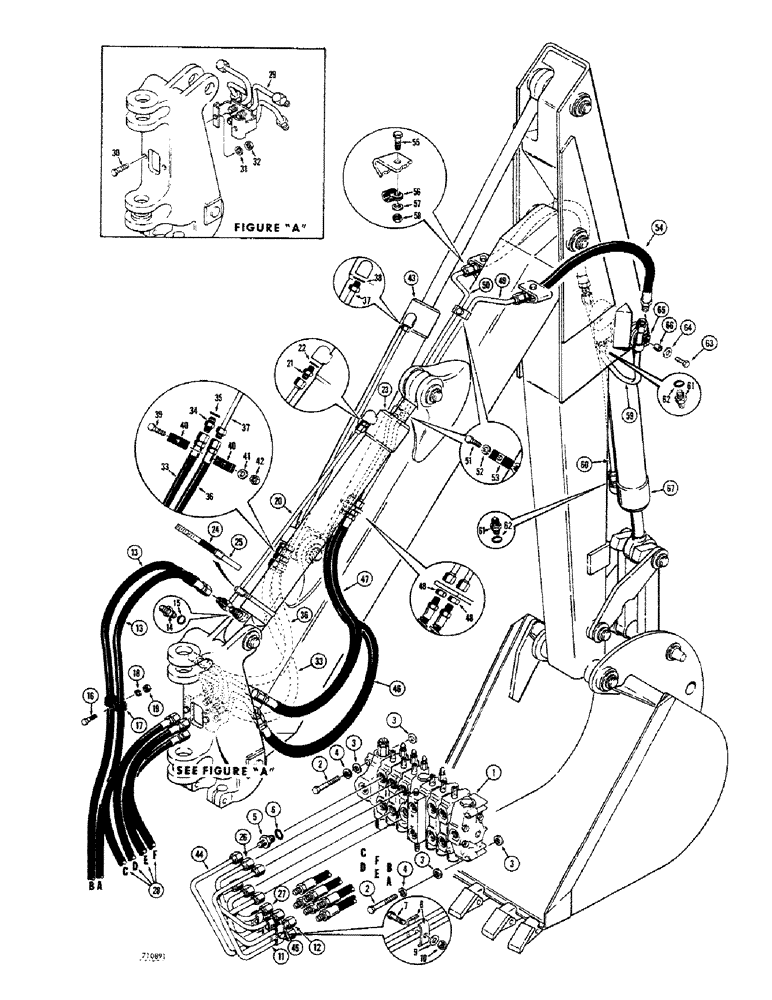

Схема запчастей Case 680CK - (240) - BACKHOE HYDRAULICS, BOOM, DIPPER AND BUCKET CYLINDERS, BOOM (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control (Parts list Figures 364 and 366)

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

3шт.

3

95-8

WASHER,1/2"

- standard wrot 1/2"

6шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 6

6шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

8

D20045

PLATE ASSY.

CLAMP - tube

6шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- plain

3шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

11

D44755

TUBE

- boom section, upper port (Before tractor ser. no. 9108158), cylinder hydraulics

1шт.

11

L50416

TUBE ASSY.,0.75" OD

TUBE - boom section, upper port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

12

D44757

TUBE - boom section, lower port (Before tractor ser. no. 9108158), cylinder hydraulics

1шт.

12

L50419

TUBE,0.75" OD

- boom section, lower port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

13

D44679

HOSE ASSY.

HOSE - valve to boom section cylinder (64" long), cylinder hydraulics

2шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

16

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Used with D38292 bracket, boom cylinder hydraulics Hex, 7/16"-14 x 1 3/4", G5

1шт.

16

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Used with L53462 bracket, boom cylinder hydraulics Hex, 7/16"-14 x 2", G5

1шт.

16a

D35228

SPACER

- tube clamp (Used with L53462 bracket only), boom cylinder hydraulics

1шт.

17

D42833

CLAMP

- hose, boom cylinder hydraulics

2шт.

18

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, , boom cylinder hydraulics 7/16"

1шт.

19

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , If used, boom cylinder hydraulics 7/16"-14, GB

1шт.

20

D40653

TUBE - boom cylinder, rod end, boom cylinder hydraulics

1шт.

21

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, boom cylinder, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, boom cylinder hydraulics

1шт.

23

REF

INSTRUCTION

CYLINDER - boom (See Figures 318-322 for cylinders), boom cylinder hydraulics

1шт.

24

D46440

SADDLE

SPACER - clamp, boom cylinder hydraulics

1шт.

25

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder, boom cylinder hydraulics

1шт.

26

D44810

TUBE - dipper section, upper part (Before tractor ser. no. 9108158), dipper cylinder hydraulics

1шт.

26

L50955

TUBE ASSY.

TUBE - dipper section, upper port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

27

D40642

TUBE

- dipper section, lower port (Before tractor ser. no. 9108158), cylinder hydraulics

1шт.

27

L50953

TUBE ASSY.

TUBE - dipper section, lower port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

28

D42600

HOSE

- valve to manifold (22-1/2" long), dipper cylinder hydraulics

4шт.

29

D44652

MANIFOLD

- hose, at swing tower, dipper cylinder hydraulics

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dipper cylinder hydraulics Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

med. sect., dipper cylinder hydraulics 3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), dipper cylinder hydraulics

2шт.

33

L50241

HOSE

- manifold to dipper cylinder, closed end (49-1/2" long)

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

L50243

HOSE

- manifold to dipper cylinder, rod end (47-1/2" long)

1шт.

37

D45536

TUBE - dipper cylinder, rod end. Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

40

D33316

CLAMP

- hose

2шт.

41

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

43

REF

INSTRUCTION

CYLINDER - dipper (See Figures 328 & 330 for cylinders)

1шт.

44

L50059

TUBE,0.75" OD

- bucket section, upper port (Before tractor ser. no. 9108158), cylinder hydraulics

1шт.

44

L50419

TUBE,0.75" OD

- bucket section, upper port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

45

L50058

TUBE

- bucket section, lower port (Before tractor ser. no. 9108158), cylinder hydraulics

1шт.

45

L50416

TUBE ASSY.,0.75" OD

TUBE - bucket section, lower port (Tractor ser. no. 9108158 and after), cylinder hydraulics

1шт.

46

L50242

HOSE ASSY.

HOSE - manifold to bucket cylinder, rod end (60" long), hydraulics

1шт.

47

L50242

HOSE ASSY.

HOSE - manifold to bucket cylinder, closed end (60" long), hydraulics

1шт.

48

D26231

NUT

- hex., jam (Special), bucket cylinder hydraulics

2шт.

49

D44680

TUBE - bucket cylinder, R.H., hydraulics

1шт.

50

D44682

TUBE - bucket cylinder, L.H., hydraulics

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

med. sect., bucket cylinder hydraulics 3/8"

2шт.

53

D40236

CLAMP

- tube, bucket cylinder hydraulics

2шт.

54

L45127

HOSE ASSY.

HOSE - bucket cylinder, upper (38-1/2" long), hydraulics

2шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

56

D40471

CLAMP

- tube, bucket cylinder hydraulics

2шт.

57

195-25

WASHER,3/8"

- plain (), bucket cylinder hydraulics 3/8"

2шт.

58

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), bucket cylinder hydraulics

2шт.

59

L45124

TUBE,0.75" OD

- bucket cylinder, closed end, hydraulics

1шт.

60

L45126

TUBE,0.75" OD x 33.3, 2.7" L

- bucket cylinder, rod end, hydraulics

1шт.

61

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, bucket cylinder hydraulics, Incl. Ref. 62

2шт.

62

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, bucket cylinder hydraulics

1шт.

63

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bucket cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

64

95-8

WASHER,1/2"

- standard wrot, bucket cylinder hydraulics 1/2"

2шт.

65

L47567

CLAMP

- hose, bucket cylinder hydraulics

2шт.

66

D3879

SPACER

- clamp, bucket cylinder hydraulics

2шт.

67

REF

INSTRUCTION

CYLINDER - bucket (Parts list Figure 332 and 334), hydraulics

1шт.
