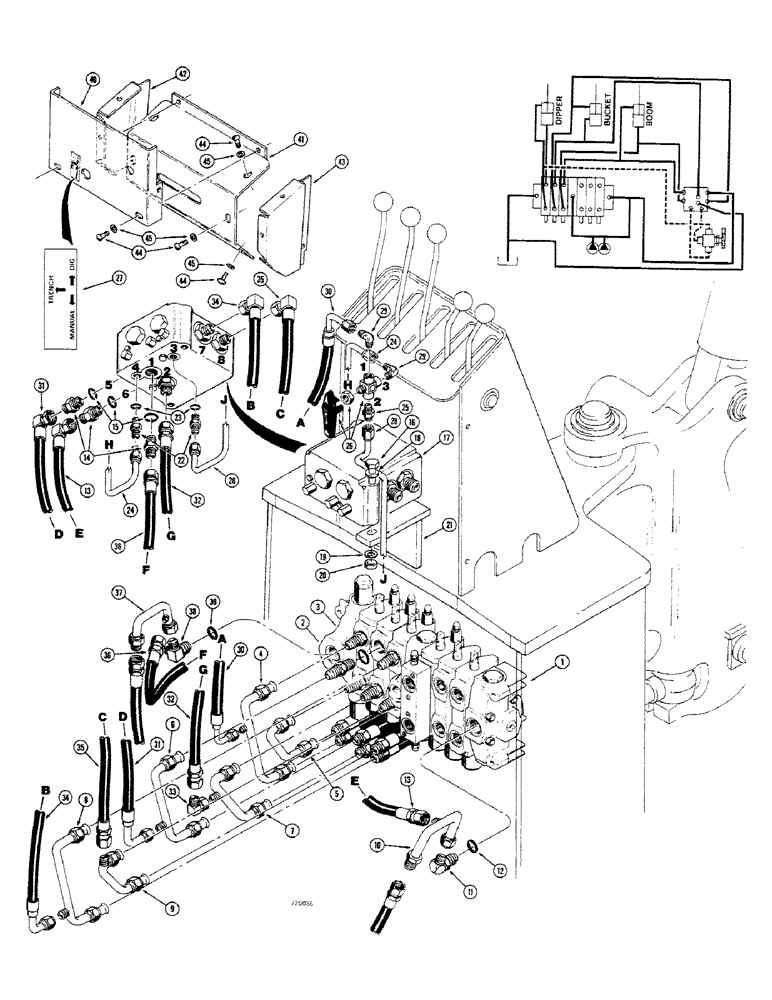

Запчасти Case 680CK (234) - HYDRA-GUIDE CONTROLS, CONTROL TOWER CLOSURE PARTS, (REQUIRED (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - backhoe control (Parts list Figure 364 or 366)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight

6шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (Replaces 218-5008)

1шт.

4

L51409

TUBE - upper valve port, dipper section 7.6, 5.2" L

1шт.

5

L50416

TUBE ASSY.,0.75" OD

TUBE - lower valve port, dipper section

1шт.

6

L51392

TUBE ASSY.

TUBE - upper valve port, bucket section

1шт.

7

L51390

TUBE - lower valve port, bucket section

1шт.

8

L51676

TUBE,5.2, 2" L

- upper valve port, boom section

1шт.

9

L51384

TUBE - lower valve port, boom section 3.9, 1.5" L

1шт.

10

L51395

TUBE - controller valve to backhoe valve inlet

1шт.

11

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 12 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

L51377

HOSE ASSY.

HOSE - backhoe valve inlet to no. 6 port of control valve

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 15

3шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

17

D54561

VALVE

- control, Hydra-Guide (Parts list Figure 382)

1шт.

18

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

21

L50134

SUPPORT - control valve, Serial Range: (Welded-frame)

1шт.

22

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - male, straight, Incl. Ref. 23

2шт.

23

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

L51106

TUBE - no. 4 port of control valve to no. 3 port of selector valve 0.25" OD

1шт.

25

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

26

D54455

VALVE

SELECTOR - valve, Hydra-Guide

1шт.

27

321-1795

X

DECAL - selector valve

1шт.

28

L50136

TUBE - no. 2 port of selector valve to no. 3 port of control valve 0.25" OD

1шт.

29

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

2шт.

30

L51382

HOSE - no. 1 port of selector valve to dipper tube - upper port

1шт.

31

L51401

HOSE - no. 5 port of control valve to bucket tube - upper port

1шт.

32

L51379

HOSE

- no. 2 port of control valve to bucket tube - lower port

1шт.

33

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- adjustable, 90 degrees

1шт.

34

L51657

HOSE - no. 7 port of control valve to boom tube - upper port

1шт.

35

L51380

HOSE - no. 8 port of control valve to boom tube - lower port

1шт.

36

L51378

HOSE - no. 1 port of control valve to outlet tube - backhoe valve

1шт.

37

L51443

TUBE - backhoe valve - outlet section

1шт.

38

D44753

FITTING

TEE - special, return hose to outlet, Includes: Ref. 39

1шт.

39

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

40

L51315

COVER - console, rear (Selector valve mounting), control tower closure parts

1шт.

41

L51317

COVER - console, rear (Lower), control tower closure parts

1шт.

42

L51321

COVER - console, side (L.H.), control tower closure parts

1шт.

43

L51319

COVER - console, side (R.H.), control tower closure parts

1шт.

44

75-58

BOLT (MACHINE),5/16" x 1/2"

SCREW - machine, round head (5/16" - 18 NC x 1/2"), control tower closure parts

8шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16"), control tower closure parts

8шт.
