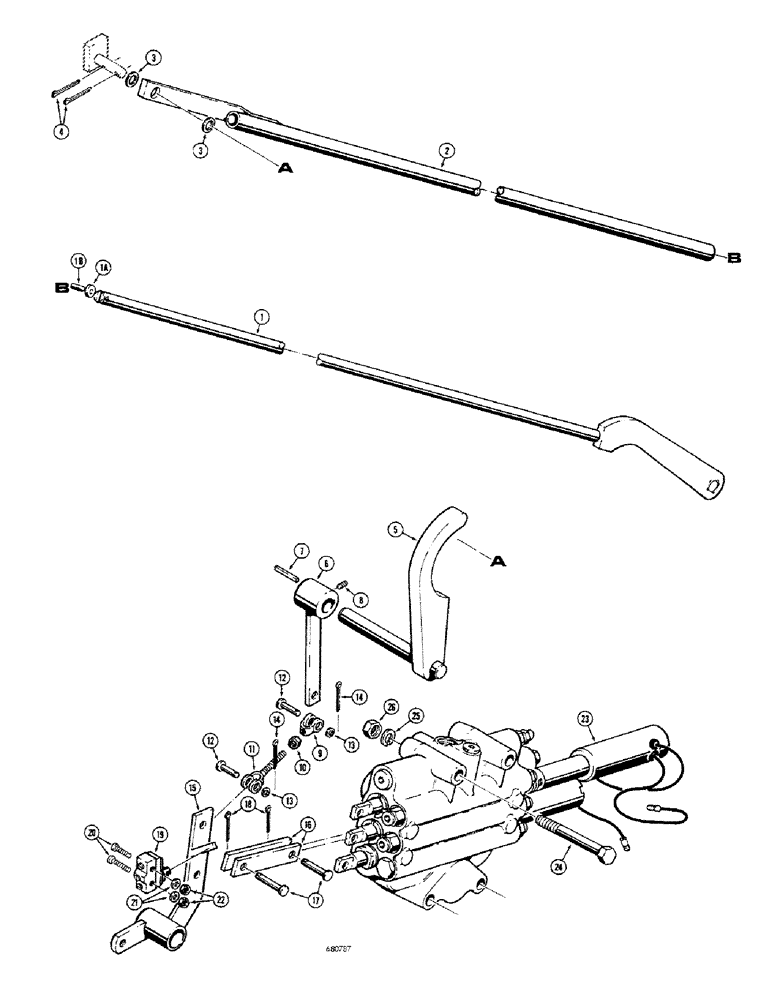

Запчасти Case 680CK (208) - LOADER CONTROLS, ANTI-ROLLBACK PARTS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L26599
ROD - control, anti-rollback
1шт.
1a
L19090
ROLLER
- control rod
1шт.
2
L26612
BRACKET
TUBE - support, control rod
1шт.
3
195-33
WASHER,1/2"
- plain () 1/2"
2шт.
4
132-28
COTTER PIN,3/32" x 1"
PIN, Split (Cotter), 3/32" x 1"
2шт.
5
L26620
LEVER
- control, anti-rollback
1шт.
6
L26614
DRAG LINK
LINK - pivot, anti-rollback control
1шт.
7
A27001
KEY
- parallel, 3/16" x 1-3/8"
1шт.
8
83-66
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex. socket head (3/8" - 16 NC x 3/8")
1шт.
9
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - rod (5/16")
1шт.
10
25-155
JAM NUT,Jam, 5/16"-24, G5
- hex., jam (5/16" - 24 NF)
1шт.
11
L17663
YOKE
ROD AND YOKE - control
1шт.
12
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, 5/16" x .940"
2шт.
13
95-5
WASHER,3/8" x 7/8" x .083"
- plain (5/16")
2шт.
14
132-25
COTTER PIN,3/32" x 5/8"
PIN, Split (Cotter), 3/32" x 5/8"
2шт.
15
L18631
LEVER - tilt control (Before tractor ser. no. 9106567)
1шт.
15
L51635
LEVER - tilt control (Tractor ser. no. 9106567 and after; also ser. nos. 9106556 and 9106565)
1шт.
16
L26340
LINK - tilt lever to valve spool
2шт.
17
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, 5/16" x .940"
2шт.
18
132-25
COTTER PIN,3/32" x 5/8"
PIN, Split (Cotter), 3/32" x 5/8"
2шт.
19
A19513
SWITCH
- actuator, neutral start (If used) see Figure 206 for related electrical components
1шт.
20
171-68
SCREW - machine, flat head (#6 - 32 NC x 1-1/4") if used
2шт.
21
195-506
WASHER,#6
- plain () zinc plated (If used) #6
2шт.
22
129-15
NUT,#6-32
(If used) #6-32
2шт.
23
REF
INSTRUCTION
VALVE - hydraulic, loader control (See Figures 350 through 352 (1) for valve)
1шт.
24
13-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
HHCS - 3/8" - 16 NC x 4-1/2"
3шт.
25
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
3шт.
26
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
3шт.
Выбрано товаров: 29
