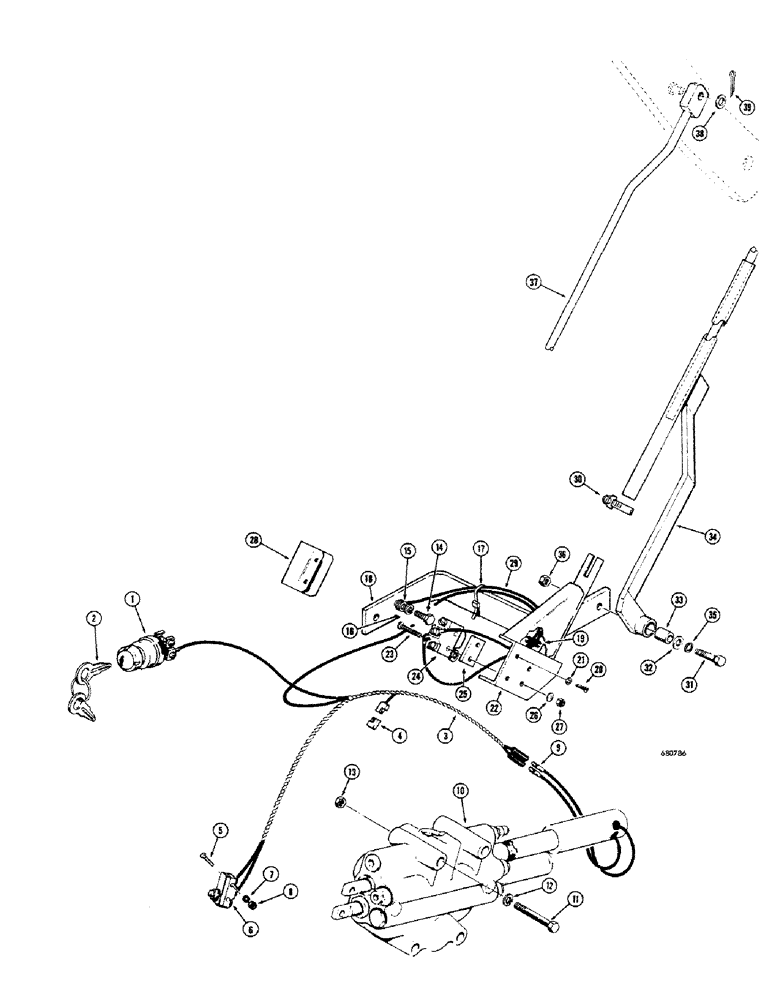

Запчасти Case 680CK (206) - LOADER CONTROLS, RETURN-TO-DIG PARTS (35) - HYDRAULIC SYSTEMS

L17820

SWITCH

AND KEY - electrical

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

A20346

KEY

- switch, ignition

1шт.

3

L13757

HARNESS

- wiring, return-to-dig (When stock is exhausted, order L48074 harness for service)

1шт.

3

L48074

HARNESS - wiring, return-to-dig (Used before tractor ser. no. 9106567)

1шт.

3

L51633

HARNESS - wiring, bucket control (Tractor ser. no. 9106567 and after; also ser. no. 9106556 and 9106565), Includes: Ref. 1 and 2

1шт.

4

L11760

DIODE

- switch protection

1шт.

5

173-267

RHMS - #6 - 32 NC x 1-1/4" (If used)

2шт.

6

A19513

SWITCH

- actuator, neutral start (If used)

1шт.

7

195-506

WASHER,#6

- plain () zinc plated (If used) #6

2шт.

8

129-15

NUT,#6-32

(If used) #6-32

2шт.

9

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type (Included with valve)

2шт.

10

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 350 through 352 (1)

1шт.

11

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

3шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire to limit switch bracket

1шт.

18

L26619

BRACKET

- limit switch box mounting

1шт.

19

NLS

NO LONGER SERVICED

- limit switch box

1шт.

20

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4") zinc plated

2шт.

21

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

22

D40884

BOX

- limit switch mounting

1шт.

23

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4") zinc plated

2шт.

24

D40921

SWITCH

- limit, return-to-dig

1шт.

25

D40924

SHIM

SPACER - switch

1шт.

26

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

27

129-15

NUT,#6-32

2шт.

28

D40922

COVER

- limit switch

1шт.

29

L40568

WIRE - ground (When stock is exhausted, order L48074 harness for service)

1шт.

29

L48074

HARNESS - wiring, return-to-dig (Used before tractor ser. no. 9106567)

1шт.

29

L51633

HARNESS - wiring, bucket control (Tractor ser. no. 9106567 and after; also ser. no. 9106556 and 9106565)

1шт.

30

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube, worm type screw

1шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

32

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

33

D40925

SPACER

SLEEVE - tube

1шт.

34

L15037

TUBE - rod support

1шт.

35

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

37

L13753

ROD - limit switch

1шт.

38

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

39

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

1шт.
