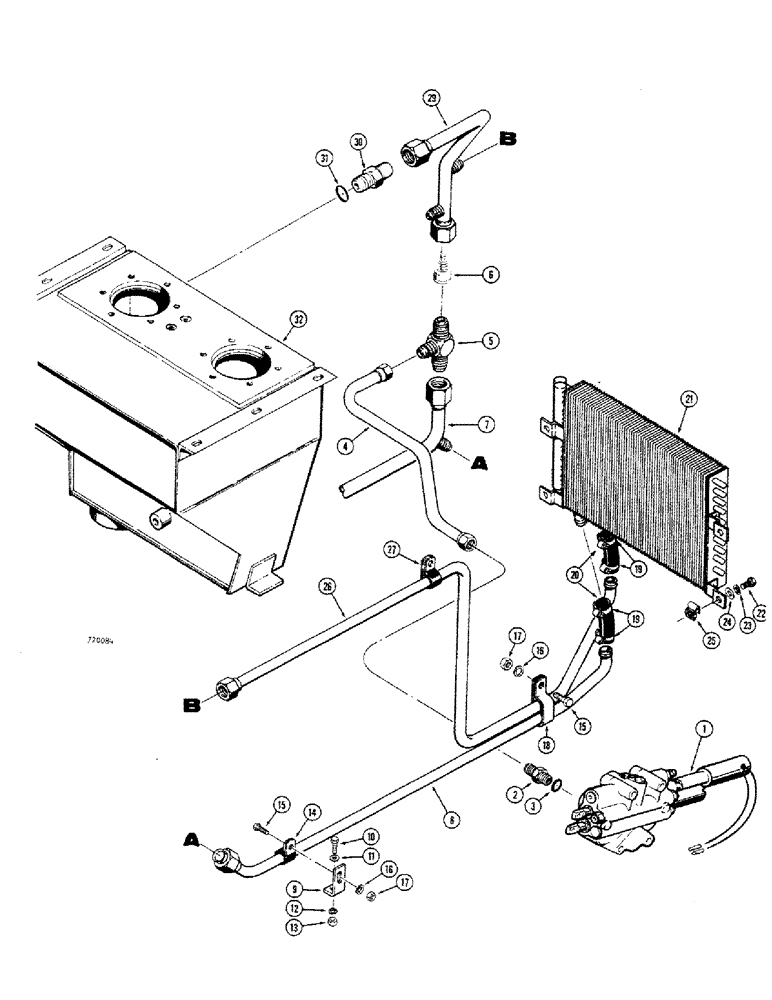

Запчасти Case 680CK (200) - EQUIPMENT PRIMARY HYDRAULICS, OIL COOLER AND RETURN LINES ( TRAC. S/N 9106750 AND AFTER) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 350 through 352 (1) for proper valve)

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L46458

TUBE - return, loader, Serial Range: valve-manifold

1шт.

5

218-609

TEE - male

1шт.

6

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

7

L48493

TUBE - return 1.25" OD x 5.25" L

1шт.

8

L48489

TUBE - oil cooler, lower (Before ser. no. 9108541) 0.75" OD x 36.4, 6.9" L

1шт.

8

L52719

TUBE - oil cooler, lower (Tractor ser. no. 9108541 and after) 0.75" OD

1шт.

9

L48494

BRACKET - cooler tube clamp (If used)

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

49855

CLAMP

- oil cooler tube (If used)

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

18

L17508

CLAMP

- cooler tubes

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

20

R13969

HOSE - tube connector, upper (7-3/4" long)

1шт.

20

L13707

HOSE,0.75" ID x 1.25" OD

0.75" ID x 5.00", SAE 100R2, Tube Connector, Lower (5" long)

1шт.

21

A57183

COOLER ASSY.

COOLER - hydraulic oil (Before tractor ser. no. 9108541)

1шт.

21

L43582

COOLER

- hydraulic oil (Tractor ser. no. 9108541 and after)

1шт.

22

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

23

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

24

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

25

131-607

NUT

- Tinnerman (5/16" - 18 NC)

4шт.

26

L48491

TUBE - oil cooler, upper (Before tractor ser. no. 9108541) 0.75" OD

1шт.

26

L51284

TUBE - oil cooler, upper (Tractor ser. no. 9108541 and after)

1шт.

27

49799

GASKET

CLAMP - tube

1шт.

29

L48487

TUBE - return, to tank 1.25" OD x 11.4" L

1шт.

30

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 31

1шт.

31

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

L47293

TANK

- hydraulic oil reservoir (See Figure 158 for related parts)

1шт.
