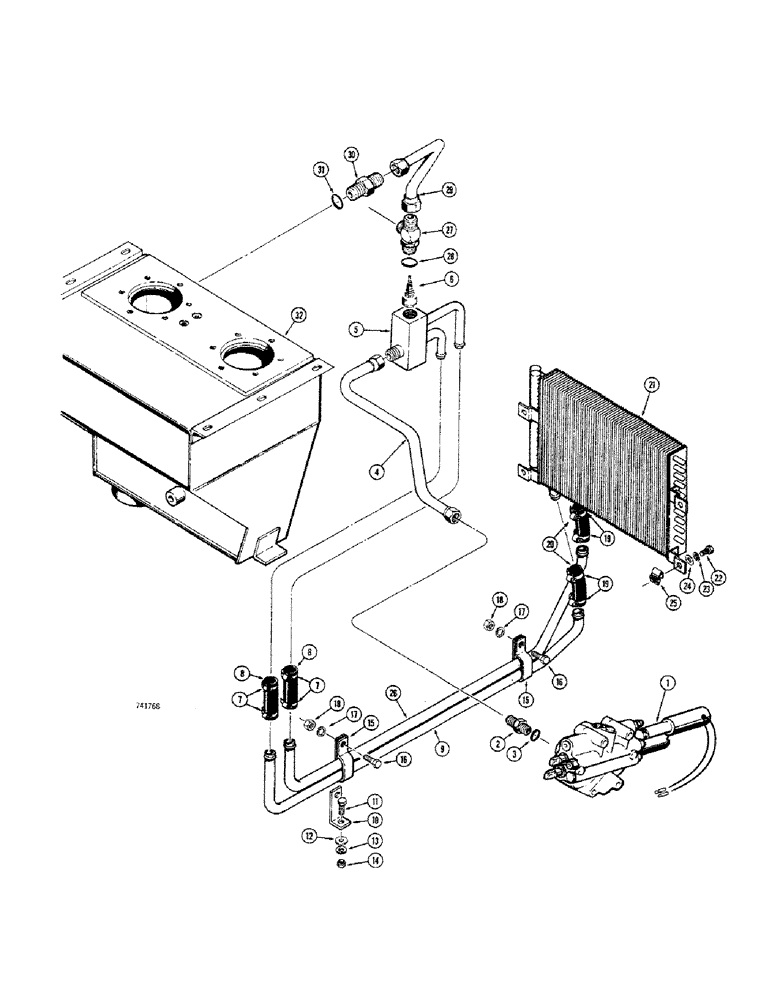

Запчасти Case 680CK (198) - EQUIPMENT PRIMARY HYDRAULICS, OIL COOLER AND RETURN LINES ( BEFORE TRAC. S/N 9106750) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 350 through 352 (1) for valve)

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L46458

TUBE - return, loader, Serial Range: valve-manifold

1шт.

5

L24325

MANIFOLD - oil cooler

1шт.

6

L13790

LOCK VALVE

VALVE - relief, oil cooler

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

8

L13707

HOSE,0.75" ID x 1.25" OD

0.75" ID x 5.00", SAE 100R2, Tube Connector

2шт.

9

L46757

TUBE -, Serial Range: manifold-cooler

1шт.

10

L47485

BRACKET - cooler tube clamp

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

15

L17508

CLAMP

- cooler tube

2шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

20

R13970

HOSE ASSY.

HOSE - tube connector

2шт.

21

A57183

COOLER ASSY.

COOLER - hydraulic oil

1шт.

22

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

23

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

24

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

25

131-607

NUT

- Tinnerman (5/16" - 18 NC)

4шт.

26

L46756

TUBE - return, Serial Range: cooler-manifold

1шт.

27

218-5293

TEE - return line, Includes: Ref. 28 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

28

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

29

L46755

TUBE,1.25" OD

- return, manifold to reservoir

1шт.

30

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 31

1шт.

31

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

L47293

TANK

- hydraulic oil reservoir (See Figure 158 for related parts)

1шт.
