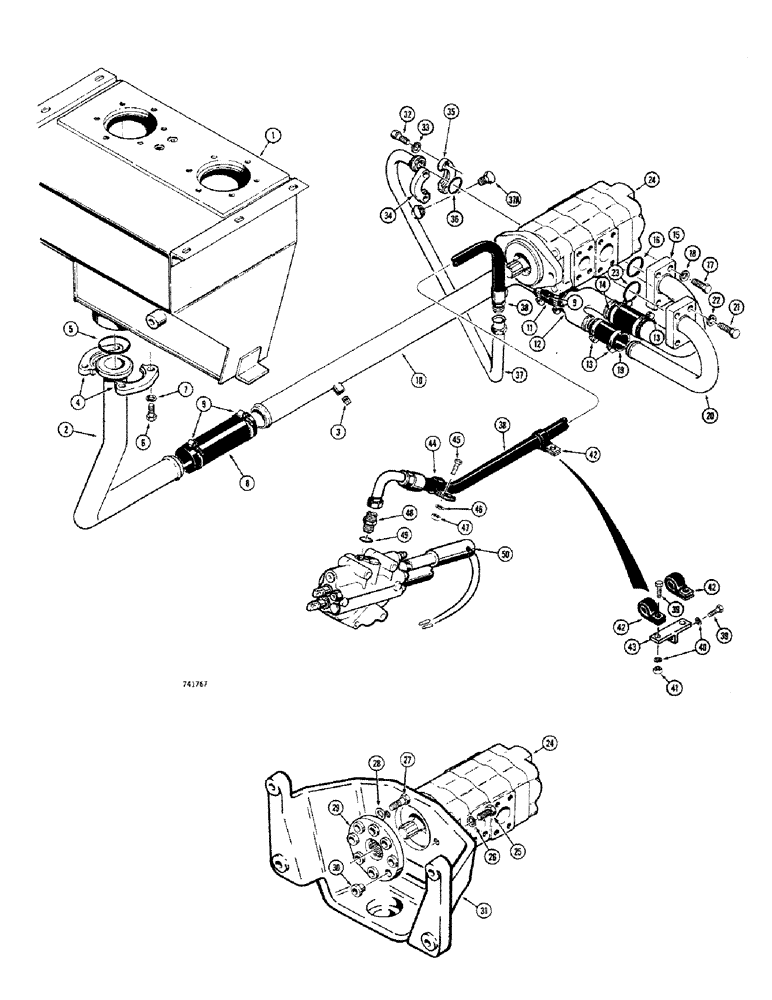

Запчасти Case 680CK (196) - EQUIPMENT PRIMARY HYDRAULICS, HYDRAULIC TANK TO PUMP AND LOADER VALVE (35) - HYDRAULIC SYSTEMS

1

L47293

TANK

- hydraulic oil reservoir

1шт.

2

L45284

TUBE - suction, Serial Range: tank-pump

1шт.

3

221-674

DRAIN PLUG,Sq Hd, 1/2" NPT

PLUG - drain, magnetic (1/2" NPT)

1шт.

4

A14141

FLANGE

- split, tube (2")

2шт.

5

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

SEAL - "O" ring, flange

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

8

L25993

HOSE,2.00" ID x 8.00"

Suction, Tank to Junction Tube 2.00" ID x 8.00"

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

10

L45323

TUBE - suction, Serial Range: tube-pump

1шт.

11

L40465

HOSE - low pressure, tank to joint (4" long) 2" I.D.

1шт.

12

L40462

JOINT TURNING

Y JOINT - junction, suction, Serial Range: tube-pump

1шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

14

L19862

HOSE,1.50" ID x 4.00", SAE 100R1

Low Pressure, Joint to Pump 1.50" ID x 4.00", SAE 100R1

1шт.

15

L40002

TUBE,1.5" OD x 2.8" L

- suction, joint to pump

1шт.

16

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

19

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, junction to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

20

L40464

TUBE

- suction, junction to pump (1-1/4")

1шт.

21

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

22

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

23

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

24

L26379

PUMP

- hydraulic, equipment (25 GPM and 17 GPM - 42 GPM total at 2000 PSI at 2000 RPM) See Figure 384

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

27

L11274

LOCK BOLT

BOLT - special, coupling mounting

8шт.

28

195-29

WASHER,7/16"

- plain () 7/16"

8шт.

L16692

COUPLING, BREAK AWAY

COUPLING - pump to crankshaft pulley, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

30

G36905

BLOCK

BUSHING - hub

8шт.

31

L46461

BRACKET

- pump and engine mounting

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

34

A12306

FLANGE

- split, tube (1")

1шт.

35

L19864

CLAMP

FLANGE - split, tube (1") sheared edge

1шт.

36

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

37

L53124

TUBE

- pump to loader control valve, at pump

1шт.

37a

221-655

PLUG,Hex Hd, 3/4"-14

- tube, hex. head (3/4")

1шт.

38

L46758

HOSE ASSY.

HOSE - pressure, pump to loader control valve (59" long)

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

40

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

42

R13931

CLAMP

- hose

2шт.

43

L18957

BRACKET - hose mounting

1шт.

44

R13931

CLAMP

- hose

1шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

46

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

48

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

50

REF

INSTRUCTION

VALVE - hyd., ldr. control (See Figures 350 through 352 (1) for proper valve)

1шт.
