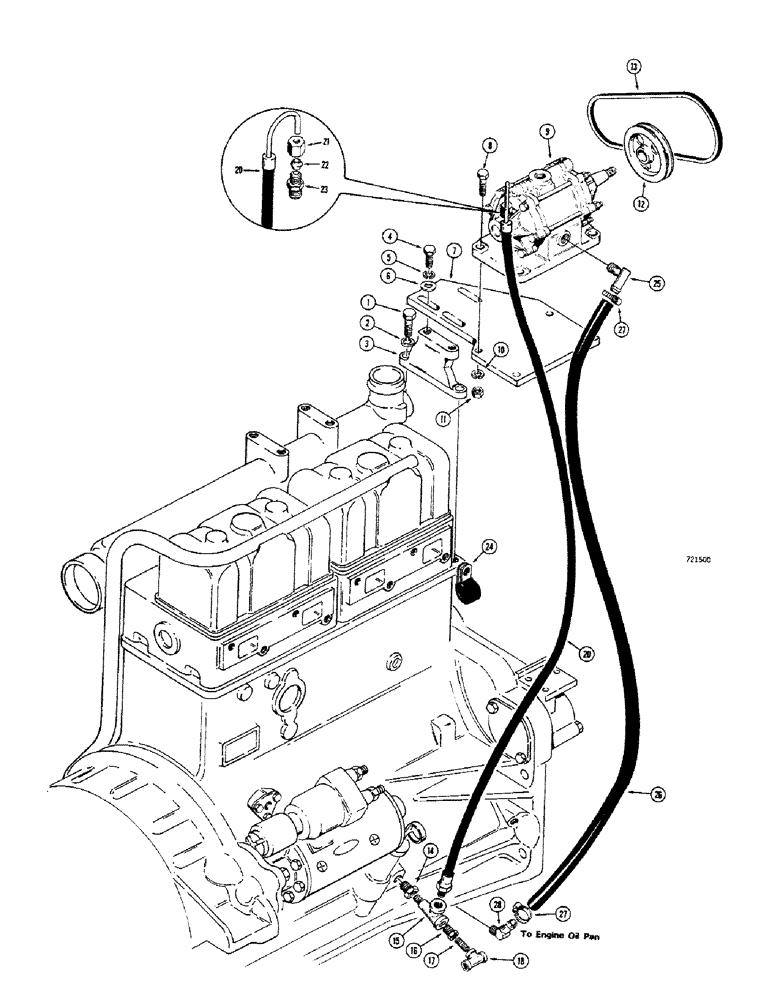

Запчасти Case 680CK (118) - BRAKE SYSTEM, VACUUM PUMP AND LUBRICATION LINES (33) - BRAKES & CONTROLS

1

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

3

A61155

BRACKET

- pump mounting

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

3шт.

5

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

3шт.

6

195-2042

WASHER,.469" x 1 1/2" x .134"

- plain (7/16")

3шт.

7

L47530

PLATE ASSY.

PLATE - mounting, vacuum, Serial Range: pump-bracket

1шт.

8

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

9

A18534

PUMP

- vacuum (Parts list page 122)

1шт.

10

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

11

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

4шт.

12

A18536

PULLEY

- drive, vacuum pump

1шт.

13

L11403

BELT,36.50" L

Vacuum pump drive 36.50" L

1шт.

14

221-1053

BUSHING

- reducing (3/8" NPT x 1/4" NPT)

1шт.

15

221-691

TEE

- pipe, street (1/4" NPT)

1шт.

16

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing (1/4" NPT x 1/8" NPT)

1шт.

17

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - pipe (1/8" NPT x 3/4" long)

1шт.

18

221-1421

TEE,Pipe, 1/8" NPT

- pipe (1/8" NPT)

1шт.

20

L40890

HOSE ASSY.

HOSE - lubrication, vacuum pump

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, flex tube, Includes: Ref. 21 - 23

1шт.

21

222-5060

NUT,1/2"-20

NUT - flex tube

1шт.

22

222-5047

SLEEVE,1/4" Tube

- flex tube

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - straight connector

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- lubrication hose

1шт.

25

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

STEM - hose, 90 degrees

1шт.

26

L48365

HOSE ASSY.

HOSE - return, pump lubrication (Cut to 34" long)

1шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

28

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

STEM - hose, 45 degrees

1шт.
