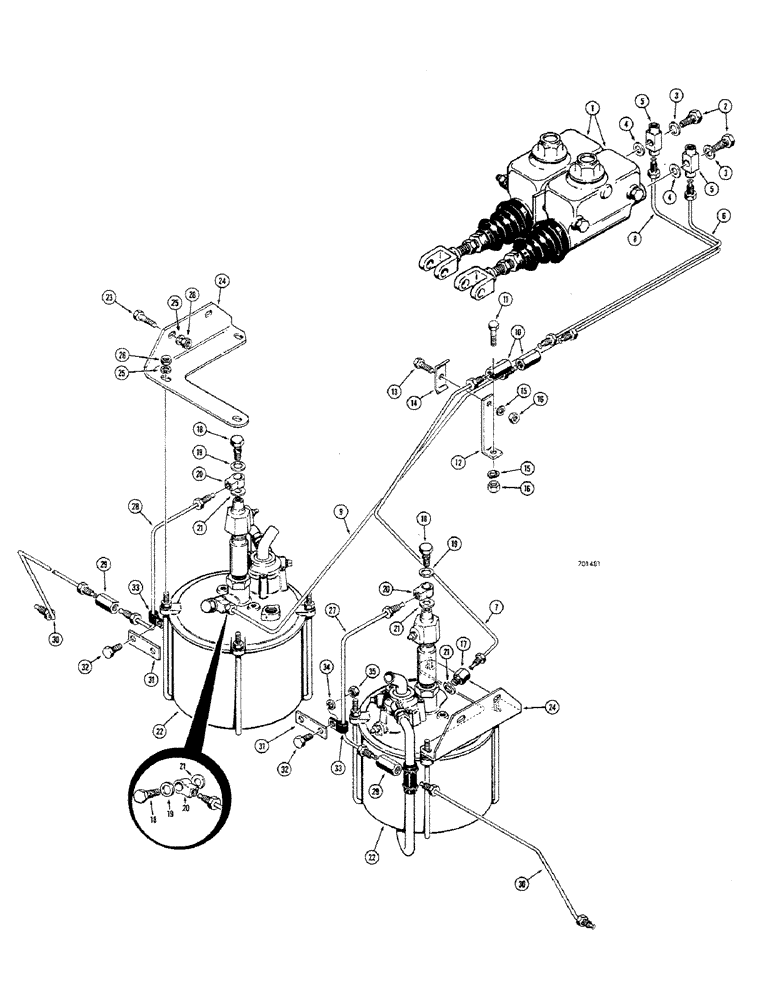

Запчасти Case 680CK (114) - BRAKE SYSTEM, MASTER CYLINDERS TO HYDROVAC CYLINDERS, TO WHEEL CYLINDERS (33) - BRAKES & CONTROLS

1

A18525

CYLINDER

- master, brake (Parts list Figure 112)

2шт.

2

A12864

BOLT

- swivel fitting to master cylinder

2шт.

3

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

WASHER - special (Outer)

2шт.

4

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- special (Inner)

2шт.

5

L16740

FITTING

- swivel, master cylinder to tube (Two ports)

2шт.

5

A18531

FITTING

- swivel, master cylinder to tube (One port)

2шт.

6

L46839

TUBE,0.25" OD

- R.H. master cylinder to hydrovac (Front section)

1шт.

7

L46963

TUBE,0.25" OD

- R.H. master cylinder to hydrovac (Rear section)

1шт.

8

L46841

TUBE - L.H. master cylinder to hydrovac (Front section) 0.25" OD

1шт.

9

L46961

TUBE,0.25" OD

- L.H. master cylinder to hydrovac (Rear section)

1шт.

10

222-1053

HYD CONNECTOR,1/4" Inv Fl

CONNECTOR - straight, tube

2шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

12

L47462

BRACKET - clamp mounting

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

A13622

PLATE, LOCKING

CLAMP - brake tube

1шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

A18273

FITTING

ADAPTER -, Serial Range: tube-hydrovac

1шт.

18

A12864

BOLT

- swivel, Serial Range: fitting-hydrovac

3шт.

19

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

WASHER - special (Outer)

3шт.

20

A18531

FITTING

- swivel

3шт.

21

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- special (Inner)

4шт.

22

A18520

FILTER ASSY

CYLINDER - hydrovac (Parts list Figure 124)

2шт.

23

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

4шт.

24

L46427

BRACKET - mounting, hydrovac cylinder

2шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

10шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

10шт.

27

L48228

TUBE,0.25" OD

- hydrovac to R.H. wheel cylinder (Inner)

1шт.

28

L48226

TUBE - hydrovac to L.H. wheel cylinder (Inner)

1шт.

29

222-1053

HYD CONNECTOR,1/4" Inv Fl

CONNECTOR - tube

2шт.

30

L48230

TUBE,0.25" OD x 14.1, 7.9" L

- hydrovac to wheel cylinder (Outer)

2шт.

31

L474693

BRACKET - clamp, brake tube

2шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

33

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

34

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
