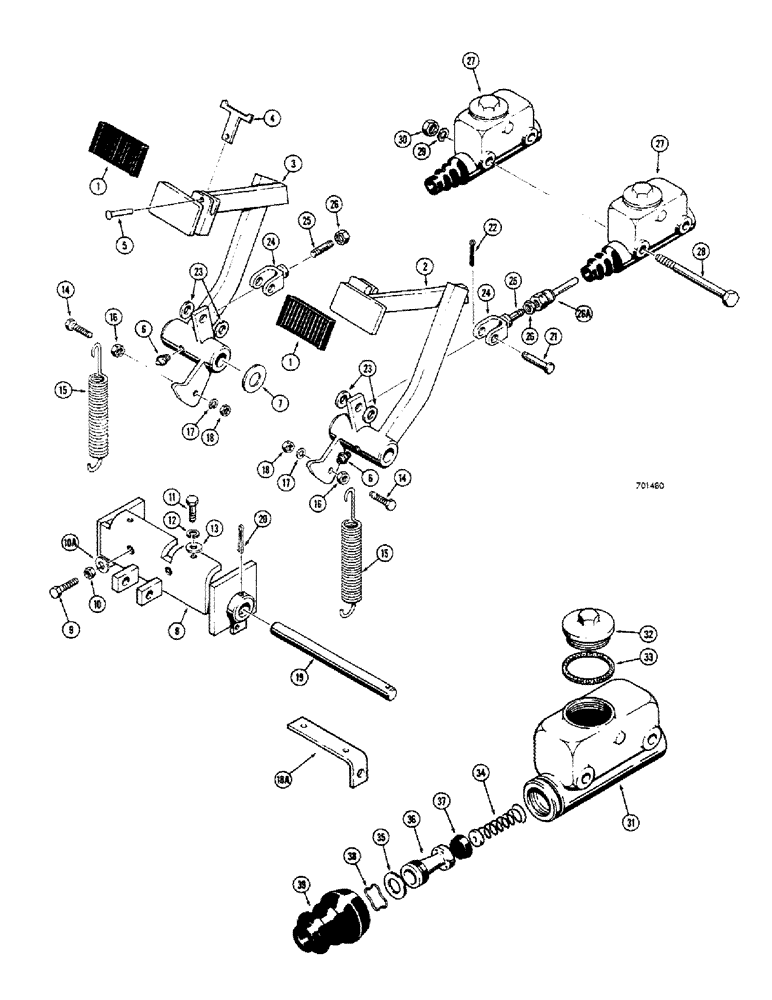

Запчасти Case 680CK (112) - BRAKE SYSTEM, BRAKE PEDALS AND MASTER CYLINDERS, A18525 (33) - BRAKES & CONTROLS

1

L11193

PAD

- brake pedal, rubber

2шт.

2

L46466

PEDAL

- brake, R.H. (When stock is exhausted use L50153 pedal)

1шт.

2

L50153

PEDAL

- brake, R.H.

1шт.

3

L46467

PEDAL

AND LOCK - brake, L.H. (When stock is exhausted, use L50154 pedal), Includes: Ref. 4 and 5

1шт.

3

L50154

PEDAL

AND LOCK - brake, L.H., Includes: Ref. 4 and 5

1шт.

4

A29086

LOCK - brake pedal

1шт.

5

45-420

RIVET - brake lock, 1/4" dia. x 1-1/4" But Hd, 1/4" x 1 1/4"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

7

A31207

SPACER - brake pedal

1шт.

8

L25580

BRACKET - mounting, brake pedal

1шт.

9

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

2шт.

10

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.

10a

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain (3/8")

2шт.

14

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

R15380

SPRING

- brake pedal return

2шт.

16

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., jam (1/4" - 20 NC)

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

18a

L46775

BRACKET - retaining, spring

1шт.

19

L25543

SHAFT - brake pedal pivot

1шт.

20

132-58

COTTER PIN

PIN - cotter, 1/8" dia. x 2-1/4"

1шт.

21

A27094

PIN

- yoke (1/2")

2шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

23

L40012

SPACER -, Serial Range: clevis-pedal

4шт.

24

A12442

YOKE - push rod

2шт.

25

L25539

ROD - push (When stock is exhausted, order L40731 rod for service)

2шт.

25

L40731

ROD - push

2шт.

26

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., jam (7/16" - 14 NC)

2шт.

26a

L45185

ROD - push, master cylinder

2шт.

27

A18525

CYLINDER

- master, brake (See breakdown below)

2шт.

28

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

2шт.

29

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

A18525

CYLINDER

- brake, master

2шт.

31

NSS

NOT SOLD SEPARAT

BODY - master cylinder, brake

1шт.

32

A19754

X

CAP - filler, brake master cylinder

1шт.

33

A19755

GASKET

- filler cap, break mater cylinder

1шт.

34

A19756

VALVE SPRING

SPRING - piston return, break master cylinder

1шт.

35

A19759

PLATE

- stop, break master cylinder

1шт.

A19762

KIT

- cylinder repair, break master

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - cylinder, break master

1шт.

37

NSS

NOT SOLD SEPARAT

CUP - piston, break master cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

LOCK WIRE - stop plate, break master cylinder

1шт.

39

A18527

BELLOWS

BOOT - protective, break master cylinder

1шт.
