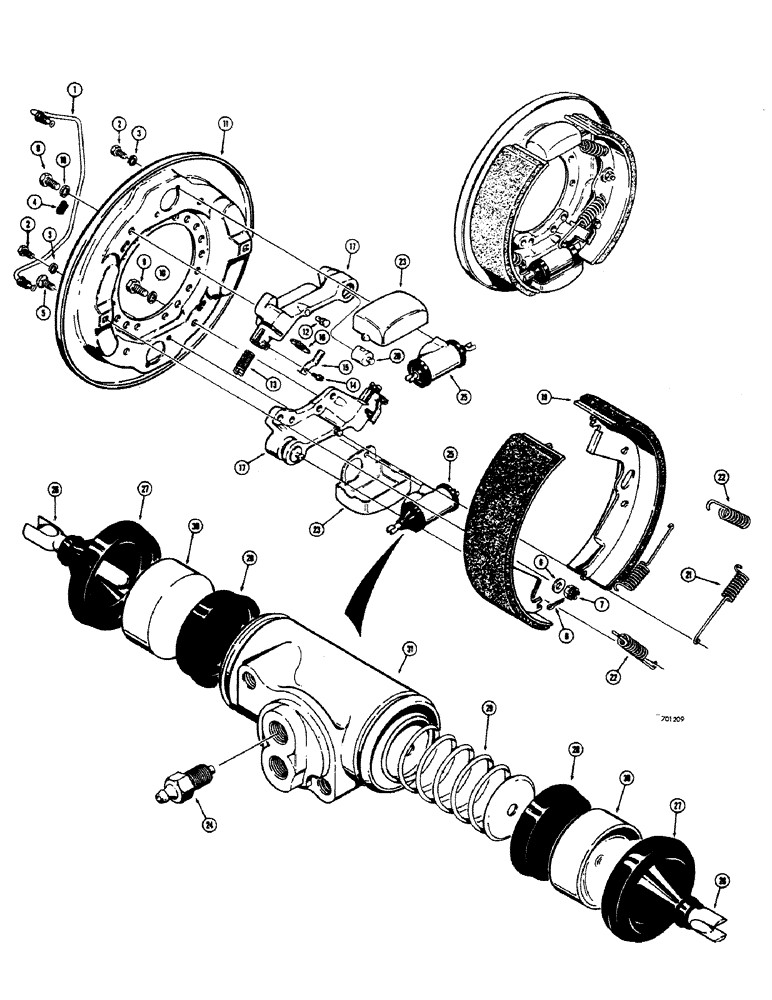

Запчасти Case 680CK (104) - L33036 AND L33037 BRAKE ASSEMBLIES (33) - BRAKES & CONTROLS

L33036

BRAKE LINE

BRAKE ASSEMBLY - front and rear axle, L.H., Includes: Ref. 1 - 31

2шт.

L33037

BRAKE ASSEMBLY - front and rear axle, R.H., Includes: Ref. 1 - 31

2шт.

1

L33105

TUBE,14.187, 4.843" L

- connector

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

3

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

4

L33110

COVER

- inspection

2шт.

L33104

BOLT (SPREADER)

BOLT KIT - shoe guide, Includes: Ref. 5 - 8

1шт.

5

L33094

BOLT

- special

2шт.

6

L33093

WASHER

- special

2шт.

7

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT - castle (3/8" - 24 NF)

2шт.

8

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

L33091

PLATE

ASSEMBLY - backing, L.H. brake, Includes: Ref. 9 - 18

1шт.

L33092

PLATE

ASSEMBLY - backing, R.H. brake, Includes: Ref. 9 - 18

1шт.

9

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2" - 20 NF x 3/4"

2шт.

10

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

12

L33095

AXLE PIN

PIN - spring return

2шт.

13

L33098

ADJUSTMENT SCREW

- adjusting, L.H. brake

2шт.

13

L33099

ADJUSTMENT SCREW,3/4" - 12 x 1.86"

- adjusting, R.H. brake

2шт.

14

193-543

SCREW,Hex Was Hd, #8-32 x 3/8"

- spring mounting

2шт.

15

L33100

VALVE SPRING

SPRING - adjusting wheel

2шт.

16

L33096

GEAR,18T

- adjusting

2шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - support

18шт.

19

L33102

SHOE

KIT - shoe and lining, brake

2шт.

20

L33103

PIN

- anchor, spring

2шт.

21

L33106

SPRING

- brake return, forward

2шт.

22

L33107

SPRING

- brake return, reverse

2шт.

23

L33108

GUARD

SHIELD - spark, L.H. brake

2шт.

23

L33109

GUARD

SHIELD - spark, R.H. brake

2шт.

24

A58464

BLEEDER,7/16" - 24 x 1 15/32"

BLEED SCREW - bottom wheel cylinder

1шт.

25

L33114

CYLINDER

ASSEMBLY - wheel, brake, Inlcudes: Ref. 26 - 31

2шт.

26

L33116

ROD

- push, cylinder

2шт.

L33117

KIT

- repair, wheel cylinder, Includes: Ref. 27 - 29

1шт.

27

L33118

BOOT

- sheel cylinder, brake

2шт.

28

A19981

KIT

CUP - wheel cylinder

2шт.

29

L33119

VALVE SPRING

SPRING - piston return

1шт.

30

L33115

PISTON

- wheel cylinder

2шт.

31

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.
