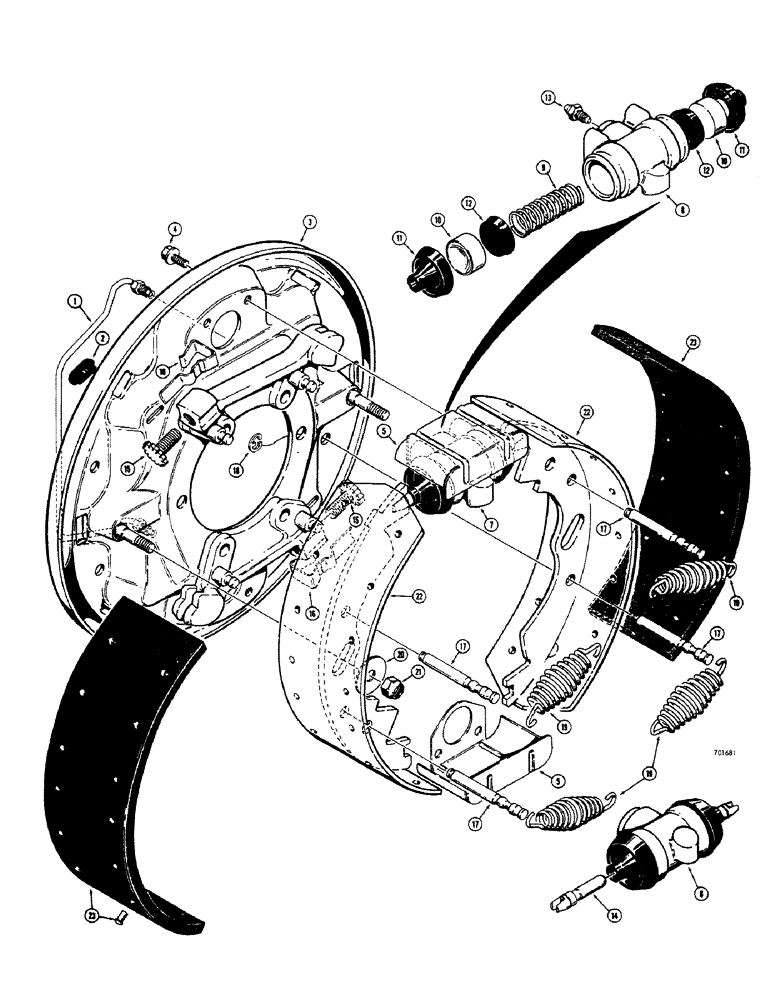

Запчасти Case 680CK (102) - WHEEL CYLINDERS, BRAKE SHOES AND LINING KITS, L47295, L52065 AND L54047 REAR AXLES (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
L35631
BRAKE ASSEMBLY - rear axle, L.H., Includes: Ref. 1 - 23
1шт.
L35630
BRAKE ASSEMBLY - rear axle, R.H., Includes: Ref. 1 - 23
1шт.
1
L33407
TUBE
- connector, wheel cylinder (L.H. brake)
1шт.
1
L33408
PIPE
TUBE - connector, wheel cylinder (R.H. brake)
1шт.
2
L33110
COVER
PLUG - adjusting hole
2шт.
3
L33850
PLATE ASSY.
PLATE - backing, L.H. brake
1шт.
3
L33851
PLATE ASSY.
PLATE - backing, R.H. brake
1шт.
4
L33415
BOLT
- wheel, Serial Range: cylinder-plate
4шт.
5
L33414
COVER ASSY
COVER - wheel cylinder
2шт.
6
L33410
CYLINDER
ASSEMBLY - rear brake, lower, Includes: Ref. 8 - 13
1шт.
7
L33409
CYLINDER BLOCK
CYLINDER ASSEMBLY - rear brake, upper, Includes: Ref. 8 - 13
1шт.
8
NSS
NOT SOLD SEPARAT
BODY - wheel cylinder
1шт.
9
L33420
VALVE SPRING
SPRING AND RETAINER - cylinder
1шт.
10
L33421
PISTON
- wheel cylinder
2шт.
L33423
KIT
- repair, wheel cylinder, Includes: Ref. 11 and 12
1шт.
11
L33424
BOOT
- cylinder
2шт.
12
L33425
CUP ASSY.
CUP - piston
2шт.
13
L33422
SCREW
- bleeder (Used with L33409 wheel cylinder only) when stock is exhausted, order L36095
1шт.
13
L36095
SCREW
- bleeder
1шт.
14
L33416
LINK
- connecting, cylinders to brake shoes
4шт.
15
L33411
ADJUSTMENT SCREW,9/16" - 12 x 1.50", LH
- adjusting, L.H. brake
2шт.
15
L33412
ADJUSTMENT SCREW,9/16" - 12 x 1.50", RH
- adjusting, R.H. brake
2шт.
16
L33413
VALVE SPRING
SPRING - adjusting screw
2шт.
17
L33418
AXLE PIN
PIN - spring, return
4шт.
18
C14652
RING
- pin retaining
4шт.
19
L33419
VALVE SPRING
SPRING - shoe return
4шт.
20
L33417
WASHER
- guide bolt
2шт.
21
131-162
LOCK NUT
NUT - hex., lock (3/8" - 24 NF)
2шт.
L35632
SHOE (ASSY)
SHOE AND LINING ASSEMBLY - brake, Includes: Ref. 22 and 23
2шт.
22
NSS
NOT SOLD SEPARAT
SHOE - brake
1шт.
23
L35633
KIT
- brake lining (Includes linings and rivets for one wheel)
1шт.
Выбрано товаров: 31
