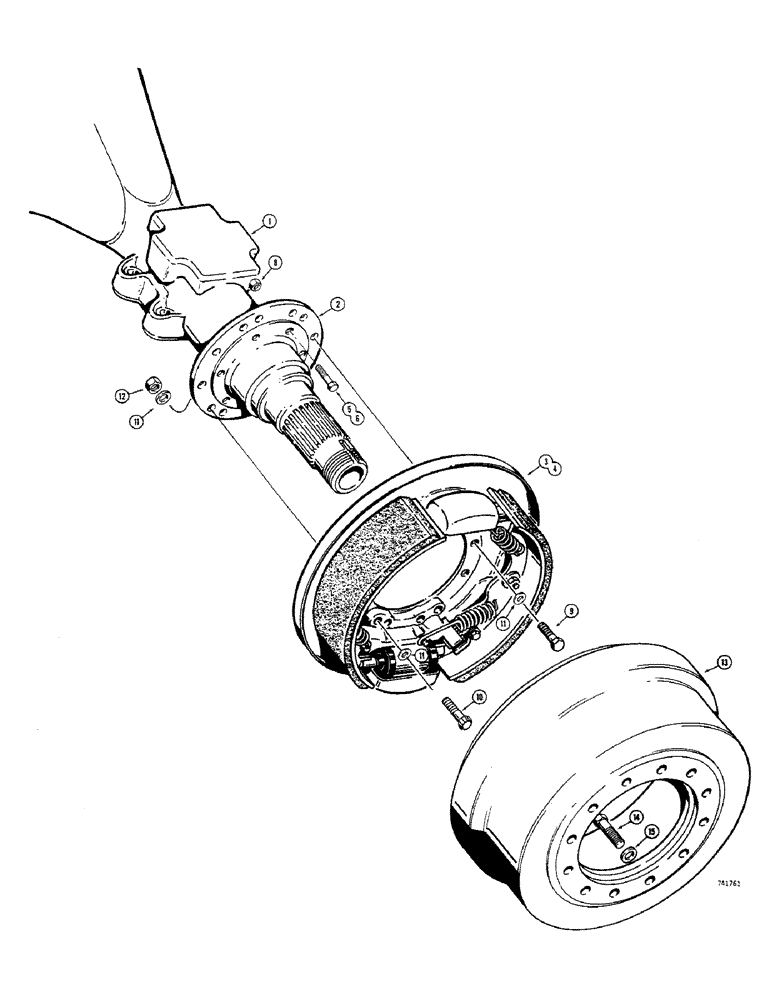

Запчасти Case 680CK (100) - L55057 BRAKE IMPROVEMENT KIT (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

HOUSING - axle (See Figure 108 for related parts)

1шт.

2

NSS

NOT SOLD SEPARAT

DISC - brake support, was L55041 now discontinued

2шт.

May be purchased in L55057 brake improvement kit.

1шт.

3

L33037

BRAKE ASSEMBLY - R.H. (Parts list Figure 104)

1шт.

May be purchased in L55057 brake improvement kit.

1шт.

4

L33036

BRAKE LINE

BRAKE ASSEMBLY - L.H. (Parts list Figure 104)

1шт.

May be purchased in L55057 brake improvement kit.

1шт.

5

114-506

BOLT,Hex, 9/16" - 18 x 2", Gr 8

HHCS - 9/16" - 18 NF x 1-1/4" (Grade 8)

4шт.

6

114-507

BOLT,Hex, 9/16" - 18 x 2-1/2", Gr 8

HHCS - 9/16" - 18 NF x 2" (Grade 8)

8шт.

8

131-96

LOCK NUT,9/16"-18, GB

NUT - hex. (9/16" - 18 NF) (Grade 8)

12шт.

9

114-504

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8, Full Thd

HHCS - 9/16" - 18 NF x 1-1/2" (Grade 8)

8шт.

May be purchased in L55057 brake improvement kit.

1шт.

10

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

BOLT - ferry cap screw (9/16" - 18 NF x 2")

16шт.

May be purchased in L55057 brake improvement kit.

1шт.

11

A43248

WASHER

- special

48шт.

May be purchased in L55057 brake improvement kit.

1шт.

12

129-558

NUT,9/16"-12, G8

-hex. (9/16" - 18 NF) grade 8

24шт.

May be purchased in L55057 brake improvement kit.

1шт.

13

L33305

DRUM HUB

DRUM - brake

2шт.

May be purchased in L55057 brake improvement kit.

1шт.

14

L33032

BOLT (SPREADER)

HHCS - special, Serial Range: (Drum-hub)

24шт.

May be purchased in L55057 brake improvement kit.

1шт.

15

L33031

WASHER

- special

24шт.

May be purchased in L55057 brake improvement kit.

1шт.
