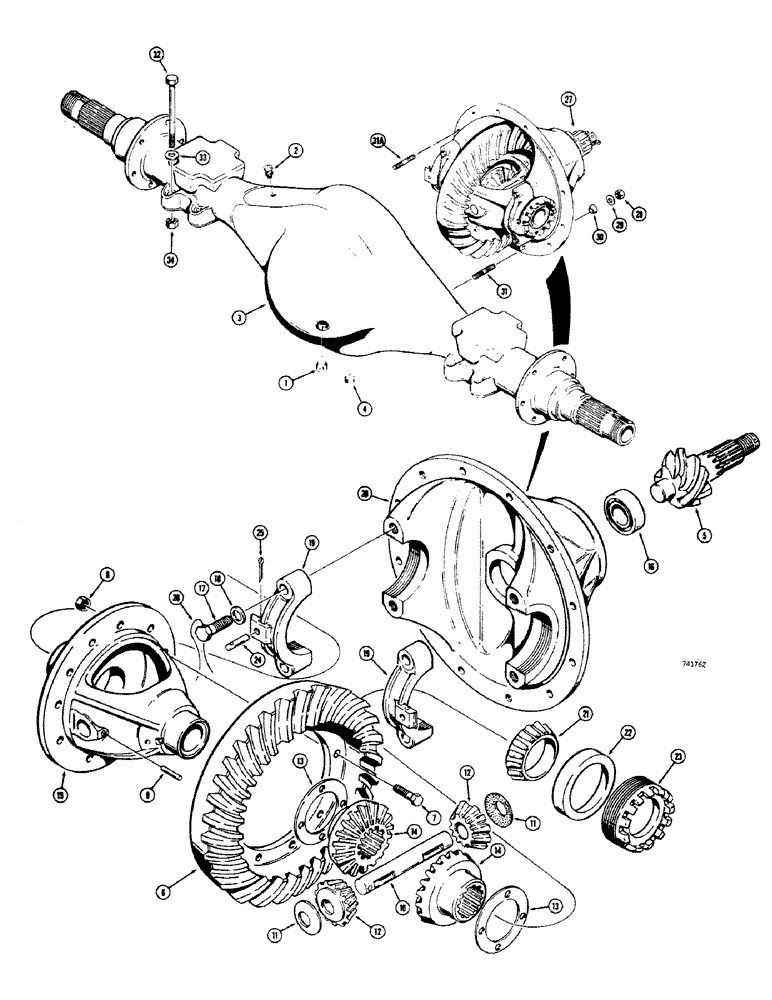

Запчасти Case 680CK (108) - DIFFERENTIAL PINION, RING GEAR AND CASE, L47295, L52065 AND L54047 REAR AXLES (27) - REAR AXLE SYSTEM

L47295

AXLE

ASSEMBLY - complete, rear (Before tractor S/N 9106564), Includes: Ref. 5 - 34

1шт.

L52065

AXLE

ASSEMBLY - complete, rear (Tractor S/N 9106564 thru 9108686; also S/N'S 9106559 and 9106561), Includes: Ref. 5 - 34

1шт.

L54047

AXLE

ASSEMBLY - complete, rear (Tractor S/N 9108687 and after), Includes: Ref. 5 - 34

1шт.

1

221-1025

PLUG

Filler, housing (3/4" NPT square socket head)

1шт.

2

L33264

BREATHER

Axle housing

1шт.

3

L33263

SPARE PART Axle

1шт.

4

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

Housing

1шт.

L33267

DIFFERENTIAL

AND CARRIER ASSEMBLY - Axle (When stock is exhausted, order L33915 differential and carrier assembly for service), Includes: Ref. 5 - 15

1шт.

L33915

DIFFERENTIAL

AND CARRIER ASSEMBLY - Axle, Includes: Ref. 5 - 15

1шт.

L33268

DIFFERENTIAL

ASSEMBLY - axle (When stock is exhausted, supply L35256 for service)

1шт.

L35256

DIFFERENTIAL

- Axle, Includes: Ref. 5 - 15

1шт.

L33269

GEAR

SET - pinion and ring gear (Matched set), Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

L33270

BOLT

Special, ring, Serial Range: gear-case

12шт.

8

131-720

LOCK NUT

Hex., lock (7/16" - 20 NF)

12шт.

L33272

SPARE PART BODY ASSEMBLY (When stock is exhausted, supply L35257 for service), Includes: Ref. 9 - 15

1шт.

L35257

BODY

ASSEMBLY - differential, Includes: Ref. 9 - 15

1шт.

9

138-160

LOCK PIN,5/16" x 2", Slotted

Pinion pin

1шт.

10

L33277

PIN

Side pinion

1шт.

11

L33275

WASHER

Thrust, pinion

2шт.

12

L35255

PINION

Side, differential

2шт.

13

L33276

WASHER

Thrust, side gear

2шт.

14

L33274

GEAR

Side, differential

2шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential body

1шт.

16

L33286

ROLLER BEARING,0.9843" ID x 2.4390" OD x 0.6693"

Pinion, inner

1шт.

16a

L33280

RETAINER

Pinion bearing (Used with L33267 differential only) not illustrated

1шт.

16a

D54777

RETAINER

Pinion bearing (Used with L33915 differential only) not illustrated

1шт.

L33278

SPARE PART CARRIER AND CAP ASSEMBLY (Used with L33267 differential and carrier assembly), Includes: Ref. 17 - 20

1шт.

D54776

DIFFERENTIAL

CARRIER AND CAP ASSEMBLY (Used with L33915 differential and carrier assembly), Includes: Ref. 17 - 20

1шт.

17

L33279

SPARE PART BOLT - special (Used with L33278 carrier and cap assembly)

4шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Used with L33917 carrier and cap assembly)

4шт.

18

L33292

WASHER - special (Used with L33279 bolt only)

4шт.

19

192-165

LOCK WASHER,5/8"

(Used with 13-1040 bolt only)

4шт.

19

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

20

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

21

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

Differential, 2-1/4 inch ID

2шт.

22

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

Bearing, differential

2шт.

23

L33287

NUT

Adjusting, bearing (Used with L33267 differential only)

2шт.

23

D54780

BEARING LOCK NUT

Adjusting, bearing (Used with L33915 differential only)

2шт.

24

L33288

AXLE PIN

LOCK - adjusting nut

2шт.

25

132-54

COTTER PIN,1/8" x 1 3/4"

2шт.

26

391-706

LOCK WIRE - bolt (18 gauge x 12" long) if used

2шт.

27

REF

INSTRUCTION

AXLE ADAPTER AND BEARING - differential (Parts list figure 94)

1шт.

28

25-178

NUT,1/2"-20, G5, Hvy

Hex. (7/16" - 20 NF) grade 8

12шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

Special

12шт.

30

L33266

DOWEL

Carrier

3шт.

31

L33265

STUD

Differential carrier to axle housing (Short)

10шт.

31a

D55439

SPARE PART Differential carrier to axle housing (Long)

2шт.

32

114-707

X

HHCS - 3/4" - 16 NF x 8" (Grade 8)

7шт.

33

L54550

WASHER

Special

8шт.

34

131-186

LOCK NUT,3/4"-16, GB

8шт.
