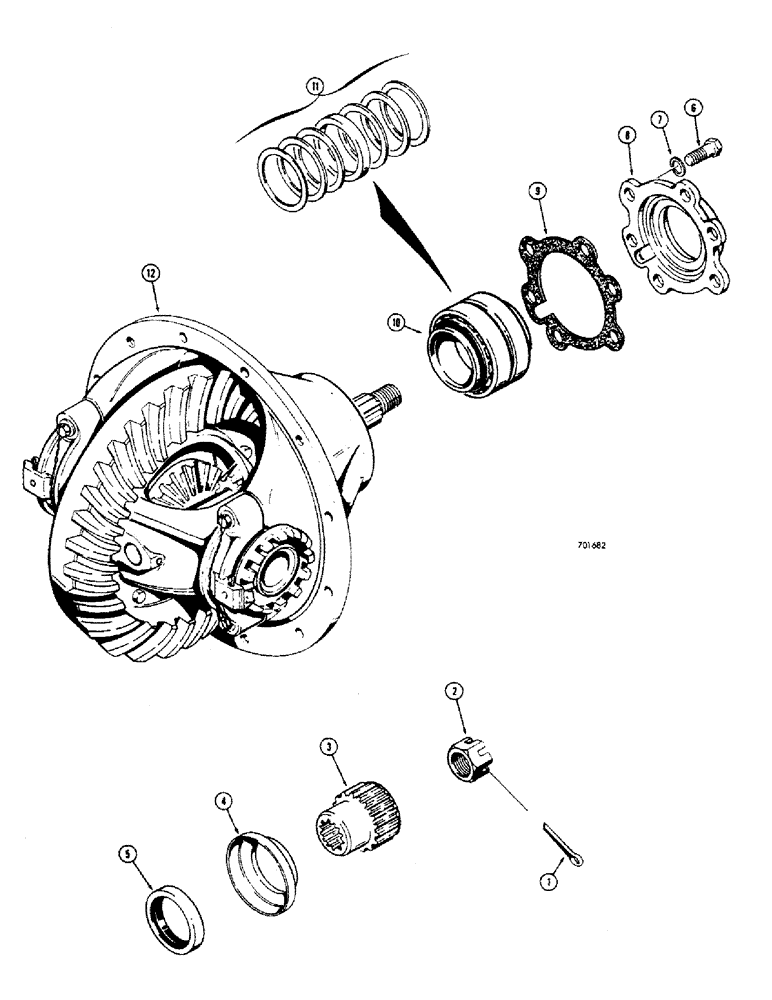

Запчасти Case 680CK (106) - DIFFERENTIAL PINION BEARINGS AND AXLE ADAPTER, L47295 (27) - REAR AXLE SYSTEM

L47295

AXLE

ASSEMBLY - complete, rear (Before tractor S/N 9106564), Includes: Ref. 1 - 12

1шт.

L52065

AXLE

ASSEMBLY - complete, rear (Tractor S/N 9106564 thru 9108686; also S/N's 9106559 and 9106561), Includes: Ref. 1 - 12

1шт.

L54047

AXLE

ASSEMBLY - complete, rear (Tractor S/N 9108687 and after), Includes: Ref. 1 - 12

1шт.

L33267

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle (When stock is exhausted, order L33915 differential and carrier assembly for service), Includes: Ref. 1 - 12

1шт.

L33915

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle

1шт.

1

132-52

COTTER PIN,1/8" x 1 1/2"

1шт.

2

L33291

NUT

Adapter to pinion shaft

1шт.

3

L48240

ADAPTER

Axle to drive shaft

1шт.

4

L33283

SHIELD

Dust, oil seal (Used with L33267 differential only)

1шт.

4

L33308

SHIELD

Dust, oil seal (Used with L33915 differential only)

1шт.

5

L33282

OIL RESERVOIR

OIL SEAL - pinion shaft

1шт.

6

113-331

NUT,Hex, 7/16"-14 x 1 1/4", G5, Full Thd

BOLT

6шт.

7

92-7

LOCK WASHER,7/16"

6шт.

8

L33280

RETAINER

Oil seal and pinion bearing (Used with L33267 differential only)

1шт.

8

D54777

RETAINER

Oil seal and pinion bearing (Used with L33915 differential only)

1шт.

9

L33281

GASKET

, Serial Range: Retainer-case

1шт.

10

L35769

BEARING ASSY

ASSEMBLY - pinion shaft, outer

1шт.

11

L33285

KIT

Spacer, pinion bearing

1шт.

12

REF

INSTRUCTION

CASE AND INTERNAL GEARING - Differential (Parts list page 108)

1шт.
