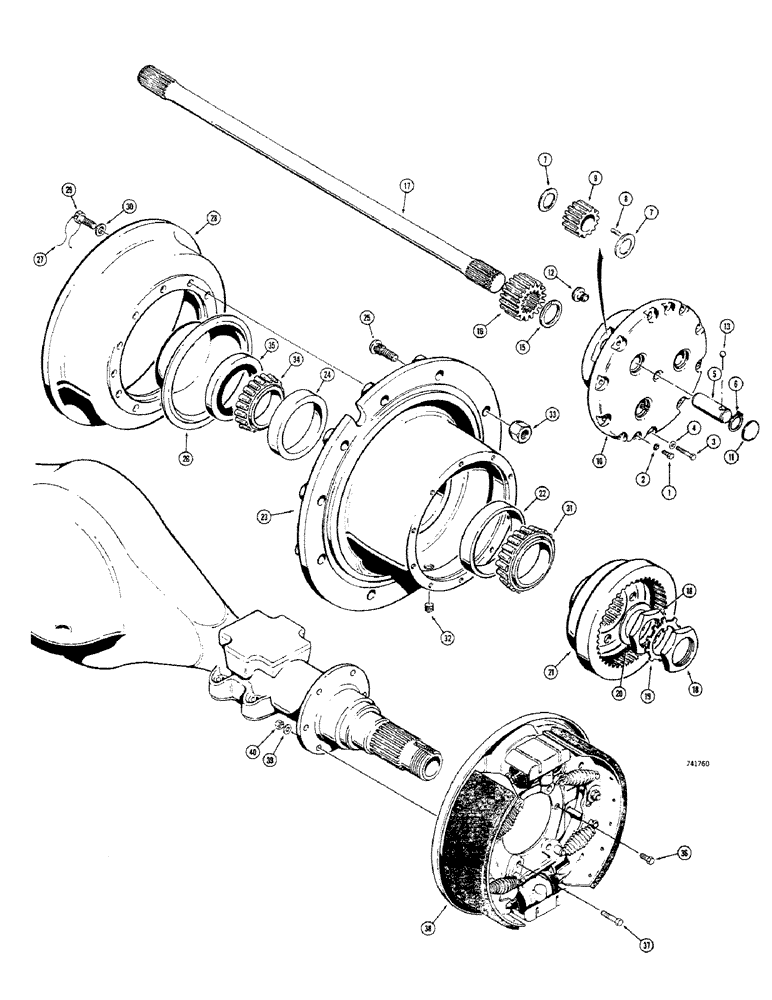

Запчасти Case 680CK (096) - L54047 REAR AXLE, AXLE AND PLANETARY (27) - REAR AXLE SYSTEM

L54047

AXLE

ASSEMBLY - complete, rear (Tractor sn. 9108687 and after), Includes: Ref. 1 - 40

1шт.

1

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

3

113-499

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8, Full Thd

- spider to hub

40шт.

4

L33002

WASHER

- special (Replaces L33022)

40шт.

D54781

SPARE PART

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 5 - 13

2шт.

5

D54783

SHAFT

- pinion

3шт.

6

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , shaft 1.06", Int, #106

3шт.

1 1/2" I.D.)

1шт.

7

D54784

WASHER

- thrust

6шт.

1 1/2" I.D.)

1шт.

8

D54785

ROLLER

- pinion

102шт.

9

D54782

GEAR WHEEL

PINION - planetary

3шт.

10

NSS

NOT SOLD SEPARAT

SPIDER - planetary (Order D54781 spider and cover assembly for service)

1шт.

1 1/2" O.D.)

1шт.

11

41-24

PLUG

- expansion, pinion shaft

3шт.

12

L33242

BUTTON

- thrust

1шт.

13

211-11

BALL,3/8" Dia

- pinion retaining

3шт.

13a

L33271

SLEEVE CYLINDER

SEAL - "O" ring, planetary cover (Not illustrated)

2шт.

14

L33246

WASHER

- thrust, sun gear (Not illustrated)

2шт.

15

L33245

RING, SNAP

RING - retaining, sun gear

2шт.

16

L33199

GEAR WHEEL

GEAR - sun

2шт.

17

L33247

SHAFT

- axle

2шт.

18

L33248

NUT

- internal, Serial Range: hub-spindle

4шт.

19

L33249

LOCK WASHER

- nut

2шт.

20

L33250

WASHER

- thrust, internal, Serial Range: hub-spindle

2шт.

21

L33251

HUB CAP

HUB AND RING GEAR - internal

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 22 - 30

2шт.

L33920

HUB ASSEMBLY - wheel, Includes: Ref. 22 - 24

1шт.

22

L33255

BEARING, CUP

CUP - bearing, outer

1шт.

23

NSS

NOT SOLD SEPARAT

HUB - wheel (Order L33920 hub assembly for service)

1шт.

Description should read "Includes Linings and Rivets for two wheels

1шт.

24

F9803

BEARING CUP

CUP - bearing, inner

1шт.

25

L33257

STUD

- wheel

10шт.

26

L33258

DEFLECTOR

SLINGER - oil

1шт.

27

391-706

WIRE - lock (18 gauge x 12" long) if used

6шт.

28

L33256

DRUM - brake

1шт.

29

L33032

BOLT (SPREADER)

BOLT - special, Serial Range: drum-hub

12шт.

30

L33031

WASHER

- special

12шт.

31

L33252

CONE

- bearing, outer

2шт.

32

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - planetary drain

2шт.

33

L33400

NUT

-, Serial Range: wheel-hub

20шт.

P/N L35632 Is one Shoe and Lining. 2 Shoe and Lining Assys are for one wheel.

1шт.

34

A50197

ROLLER BEARING,3" ID x 0.906"

CONE - bearing, inner

2шт.

35

L33259

OIL SEAL

- oil, hub

2шт.

36

114-506

BOLT,Hex, 9/16" - 18 x 2", Gr 8

HHCS - 9/16" - 18 NF x 1-1/4" (Grade 8)

4шт.

37

114-507

BOLT,Hex, 9/16" - 18 x 2-1/2", Gr 8

HHCS - 9/16" - 18 NF x 2" (Grade 8)

8шт.

38

L35631

BRAKE ASSEMBLY - wheel, L.H. (Parts list Figure 102)

1шт.

38

L35630

BRAKE ASSEMBLY - wheel, R.H. (Parts list Figure 102)

1шт.

39

L33853

WASHER

- special

12шт.

40

131-96

LOCK NUT,9/16"-18, GB

NUT - hex. (9/16" - 18 NF) grade 8

12шт.
