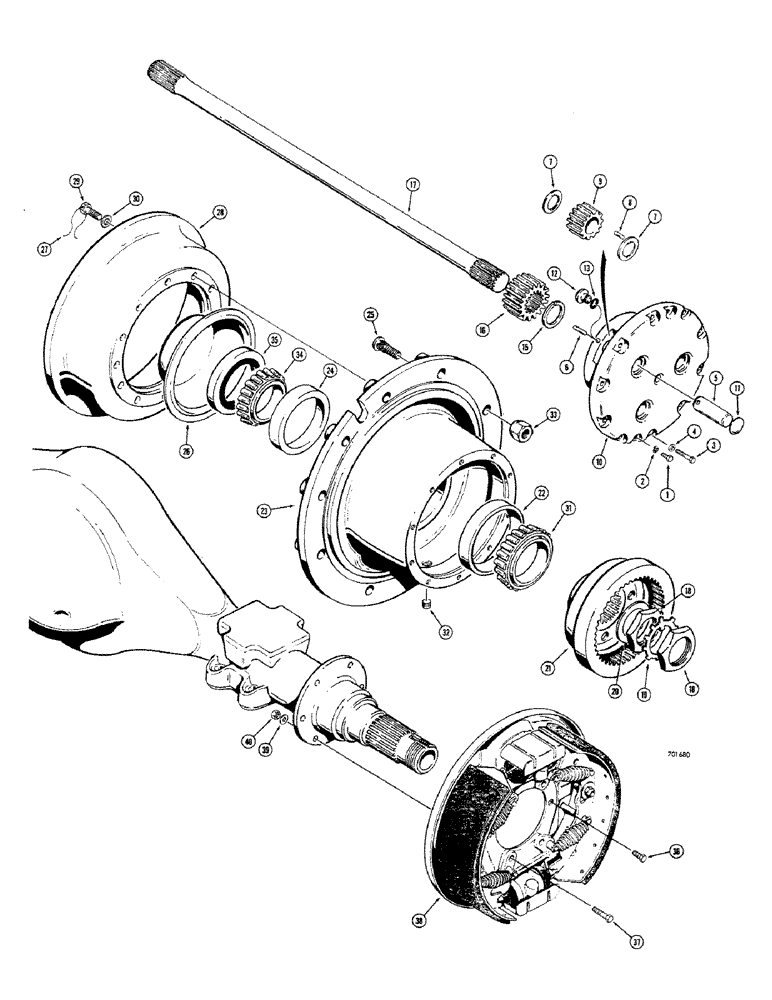

Запчасти Case 680CK (092) - L47295 AND L52065 REAR AXLES, AXLE AND PLANETARY (27) - REAR AXLE SYSTEM

L47295

AXLE

ASSEMBLY - complete, rear (Before tractor ser. no. 9106564), Includes: Ref. 1 - 40

1шт.

L52065

AXLE

ASSEMBLY - complete, rear (Tractor ser. no. 9106564 thru 9108686; also ser. nos. 9106559 and 9106561), Includes: Ref. 1 - 40

1шт.

1

113-343

BOLT,Hex, 7/16" - 14 x 7/16", Gr 5, Full Thd

Hex, 7/16"-14 x 7/16", G5, Full Thd (Used with L47295 axle only)

4шт.

1

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

(Used with L52065 axle only) Hex, 1/2"-13 x 1/2", G5, Full Thd

4шт.

2

92-7

LOCK WASHER,7/16"

used with 113-343 bolt 7/16"

4шт.

2

92-8

LOCK WASHER,1/2"

(Used with 113-477 bolt) 1/2"

4шт.

3

L33244

SCREW

BOLT - special, spider to hub (Used with L47295 axle only)

20шт.

3

113-499

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8, Full Thd

- spider to hub (Used with L52065 axle only)

40шт.

4

L33003

WASHER

- special (Used with L33244 bolt)

20шт.

4

L33002

WASHER

- special (Used with 113-499 bolt) (Replaces L33022)

40шт.

L33195

CARRIER

SPIDER AND COVER ASSEMBLY - planetary (Used with L47295 axle only), Includes: Ref. 5 - 13

2шт.

P/N L33195 Spider and Cover Assembly sub to P/N L35510. P/N L35510 subs to P/N 8718. The pinion shaft (D54783) used in P/N L35510 is not interchangable with the new shaft (N8720) used in the new carrier., Includes: Ref. 5 - 13

1шт.

L33293

CARRIER

SPIDER AND COVER ASSEMBLY - planetary (Used with L52065 axle only), Includes: Ref. 5 - 13

2шт.

5

L33196

SHAFT

- pinion

3шт.

6

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Shaft 1/4" x 1 7/8", Slotted

3шт.

7

L33197

WASHER

- thrust

6шт.

8

L33198

ROLLER

- pinion

102шт.

9

L33243

PINION

- planetary

3шт.

10

NSS

NOT SOLD SEPARAT

SPIDER - planetary (Order L33195 or L33293 spider and cover assembly for service)

1шт.

11

41-24

PLUG

- expansion, pinion shaft

3шт.

12

L33242

BUTTON

- thrust

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring, thrust button

1шт.

13a

L33271

SLEEVE CYLINDER

SEAL - "O" ring, planetary cover (Used with L52065 axle only) not illustrated

2шт.

14

L33246

WASHER

- thrust, sun gear (Not illustrated)

2шт.

15

L33245

RING, SNAP

RING - retaining, sun gear

2шт.

16

L33199

GEAR WHEEL

GEAR - sun

2шт.

17

L33247

SHAFT

- axle

2шт.

18

L33248

NUT

- internal, Serial Range: hub-spindle

4шт.

19

L33249

LOCK WASHER

- nut

2шт.

20

L33250

WASHER

- thrust, internal, Serial Range: hub-spindle

2шт.

21

L33251

HUB CAP

HUB AND RING GEAR - internal

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle

2шт.

L33254

HUB ASSEMBLY - wheel (Used with L47295 axle only)

1шт.

L33920

HUB ASSEMBLY - wheel (Used with L52065 axle only)

1шт.

22

L33255

BEARING, CUP

CUP - bearing, outer

1шт.

23

NSS

NOT SOLD SEPARAT

HUB - wheel (Order L33254 or L33920 hub assembly for service)

1шт.

24

F9803

BEARING CUP

CUP - bearing, inner

1шт.

25

L33257

STUD

- wheel

10шт.

26

L33258

DEFLECTOR

SLINGER - oil

1шт.

27

391-706

WIRE - lock (18 gauge x 12" long) if used

6шт.

28

L33256

DRUM - brake

1шт.

29

L33032

BOLT (SPREADER)

BOLT - special, Serial Range: drum-hub

12шт.

30

L33031

WASHER

- special

12шт.

31

L33252

CONE

- bearing, outer

2шт.

32

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - planetary drain

2шт.

33

L33400

NUT

-, Serial Range: wheel-hub

20шт.

34

A50197

ROLLER BEARING,3" ID x 0.906"

CONE - bearing, inner

2шт.

35

L33259

OIL SEAL

- oil, hub

2шт.

36

114-506

BOLT,Hex, 9/16" - 18 x 2", Gr 8

HHCS - 9/16" - 18 NF x 2" (Grade 8)

4шт.

37

114-507

BOLT,Hex, 9/16" - 18 x 2-1/2", Gr 8

HHCS - 9/16" - 18 NF x 2-1/2" (Grade 8)

8шт.

38

L35631

BRAKE ASSEMBLY - wheel, L.H. (Parts list page 102)

1шт.

38

L35630

BRAKE ASSEMBLY - wheel, R.H. (Parts list page 102)

1шт.

39

L33853

WASHER

- special

12шт.

40

131-96

LOCK NUT,9/16"-18, GB

NUT - hex. (9/16" - 18 NF) grade 8

12шт.
