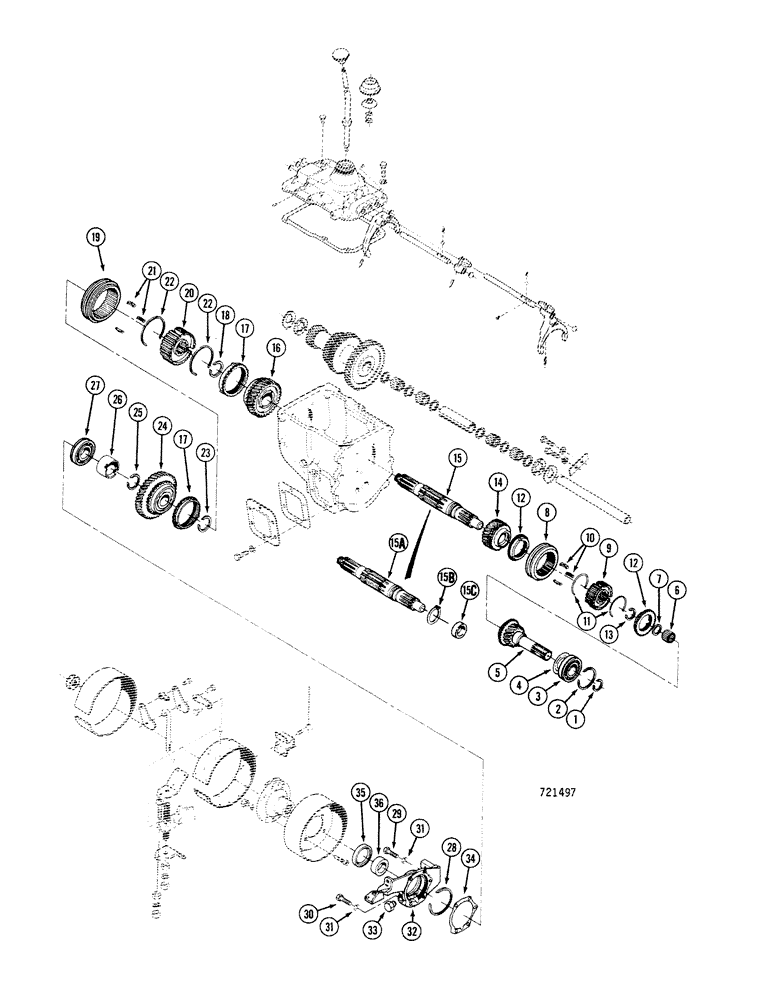

Запчасти Case 680CK (082) - TRANSMISSION, MAIN SHAFT AND GEARS (21) - TRANSMISSION

L47203

TRANSMISSION ASSEMBLY - 4 speed, Includes: Ref. 1 - 36; Transmission Housing Stamped With No. T19-148F

1шт.

1

L33360

RING

SNAP RING - main drive gear

1шт.

(.119 / .117 thick)

1шт.

1

L33361

RING, SNAP

SNAP RING - main drive gear

1шт.

(.122 / .120 thick)

1шт.

1

L33362

RING, SNAP

SNAP RING - main drive gear

1шт.

(.125 / .123 thick)

1шт.

1

L33363

RING, SNAP

SNAP RING - main drive gear

1шт.

(.129 / .127 thick)

1шт.

2

A14857

RING

SNAP RING - bearing retaining

1шт.

3

L33357

BALL BEARING,39.99mm ID x 90mm OD x 20mm W

BEARING - main drive gear

1шт.

4

L33358

PLATE

SLINGER - oil

1шт.

5

L33356

GEAR WHEEL

GEAR - main drive

1шт.

6

R17820

AXLE PIN,4.76mm OD x 25.4mm L

BEARING - roller, main shaft

22шт.

7

L33352

WASHER

SPACER - bearing

1шт.

L33333

SYNCHRONIZER

ASSEMBLY - third and fourth gear, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE - synchronizer

1шт.

10

L33395

PLATE ASSY.

PLATE - shifting

3шт.

11

L33396

SPRING

- synchronizer

2шт.

12

L33336

RING

- blocking, synchronizer (Third and fourth gears)

2шт.

13

L33337

RING, SNAP

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

14

L33335

GEAR WHEEL

GEAR - third speed

1шт.

15

L33332

SHAFT

- main (When stock is exhausted, order L35315 main shaft kit)

1шт.

L35315

KIT

- main shaft, Includes: Kit. 15A - 15C

1шт.

15a

NSS

NOT SOLD SEPARAT

SHAFT - main (Order L35315 kit)

1шт.

15b

L33338

RING

- retaining

1шт.

15c

L35314

WASHER

- thrust

1шт.

16

L33339

GEAR

- second speed

1шт.

17

L33343

RING, SNAP

RING - blocking, synchronizer (First and second gears)

2шт.

18

L33338

RING

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

L33334

SYNCHRONIZER

ASSEMBLY - (First and second gears), Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - synchronizer

1шт.

21

L33397

PLATE ASSY.

PLATE - shifting

3шт.

22

L33398

VALVE SPRING

SPRING - synchronizer

2шт.

23

L33338

RING

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

(.094 / .092 thick)

1шт.

23

L33340

RING, SNAP

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

(.097 / .095 thick)

1шт.

23

L33341

RING, SNAP

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

(.098 / .100 thick)

1шт.

23

L33342

RING, SNAP

SNAP RING -, Serial Range: synchronizer-shaft

1шт.

(.103 / .101 thick)

1шт.

24

L33344

GEAR WHEEL

GEAR - first speed

1шт.

25

L33342

RING, SNAP

SNAP RING - gear to main shaft

1шт.

26

L33345

SPACER

- reverse gear

1шт.

27

L33346

BALL BEARING

BEARING - main shaft

1шт.

28

A14857

RING

SNAP RING -, Serial Range: bearing-retainer

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

30

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

HHCS - 3/8" - 16 NC x 1-7/8"

1шт.

31

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

5шт.

32

L33359

RETAINER

- bearing, main shaft

1шт.

33

L33402

PLUG

- speedometer outlet

1шт.

34

L33364

GASKET

- bearing retainer

1шт.

35

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

OIL SEAL - main shaft

1шт.

36

L33347

SPACER

- speedometer gear

1шт.
