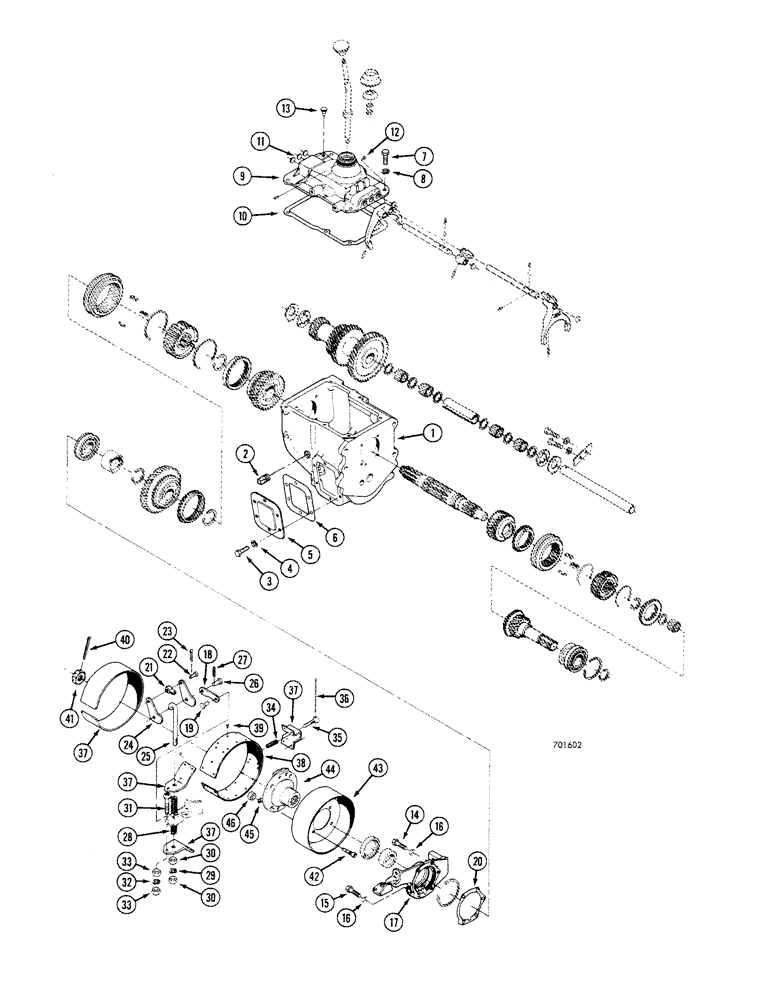

Запчасти Case 680CK (080) - TRANSMISSION, CASE, COVERS AND PARKING BRAKE (21) - TRANSMISSION

L47203

TRANSMISSION ASSEMBLY - 4 speed, Includes: Ref. 1 - 46; Transmission Housing Stamped With No. T19-148F

1шт.

1

L33329

CASE

- transmission

1шт.

2

221-676

PLUG

- drain, magnetic

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

5

L33330

COVER ASSY

COVER - side, transmission

1шт.

6

L33331

GASKET

-, Serial Range: cover-case

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

6шт.

9

L33366

HOUSING

COVER - shift control

1шт.

10

L33377

GASKET

-, Serial Range: cover-case

1шт.

11

41-12

PLUG,Exp, 3/4"

- expansion

6шт.

12

L33367

PLUG

- taper

1шт.

13

L33376

BREATHER

- transmission case

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

HHCS - 3/8" - 16 NC x 1-7/8"

1шт.

16

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

5шт.

L33359

RETAINER

AND BRACKET - parking brake and bearing, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

18

L33404

DRAG LINK

LINK - brake spacer

1шт.

19

L33405

RIVET

- special, Serial Range: link-bracket

1шт.

20

L33364

GASKET

-, Serial Range: retainer-case

1шт.

21

L33391

EYE

- brake rod adjusting

1шт.

22

L33392

AXLE PIN

PIN - yoke, Serial Range: eye-levers

1шт.

23

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

24

L33382

LEVER

- brake cam

2шт.

25

L33385

BOLT

ROD - brake band adjusting

1шт.

26

A12122

PIN - yoke, Serial Range: rod-lever

1шт.

27

132-47

COTTER PIN,1/8" x 7/8"

PIN, Split (Cotter), 1/8" x 7/8"

1шт.

28

L33386

SPRING

- brake release

2шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

129-104

NUT,7/16"-14, G5

2шт.

31

169-153

SCREW - machine, fillister head (1/4" - 20 NC x 2-5/8")

1шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

33

25-104

NUT,1/4"-20, G5

2шт.

34

L33388

SPRING

- anchor clip

1шт.

35

L33393

SCREW,Hex, 5/16" - 18 x 1 5/8"

- anchor clip

1шт.

36

391-701

ELECTRICAL WIRE

WIRE - lock, 18 gauge x 6" long

1шт.

L33394

BRAKE

BAND ASSEMBLY - parking, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

BAND - parking brake

1шт.

L33403

KIT

- lining, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

39

L33707

RIVET

- lining

20шт.

40

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

41

L48339

NUT

- transmission shaft to brake drum flange

1шт.

42

L48335

BOLT

- flange to brake drum

4шт.

43

L48243

DRUM HUB

DRUM -parking brake

1шт.

44

L48234

FLANGE

- brake, Serial Range: drum-shaft

1шт.

45

193-11

LOCK WASHER,Ext Tooth, 7/16"

WASHER - lock, Shakeproof (7/16")

4шт.

46

L48337

FLANGE NUT

- flange to brake drum

4шт.

L33986

BOOT

rubber

1шт.

Added at S/N N9106622 and transmission

1шт.
