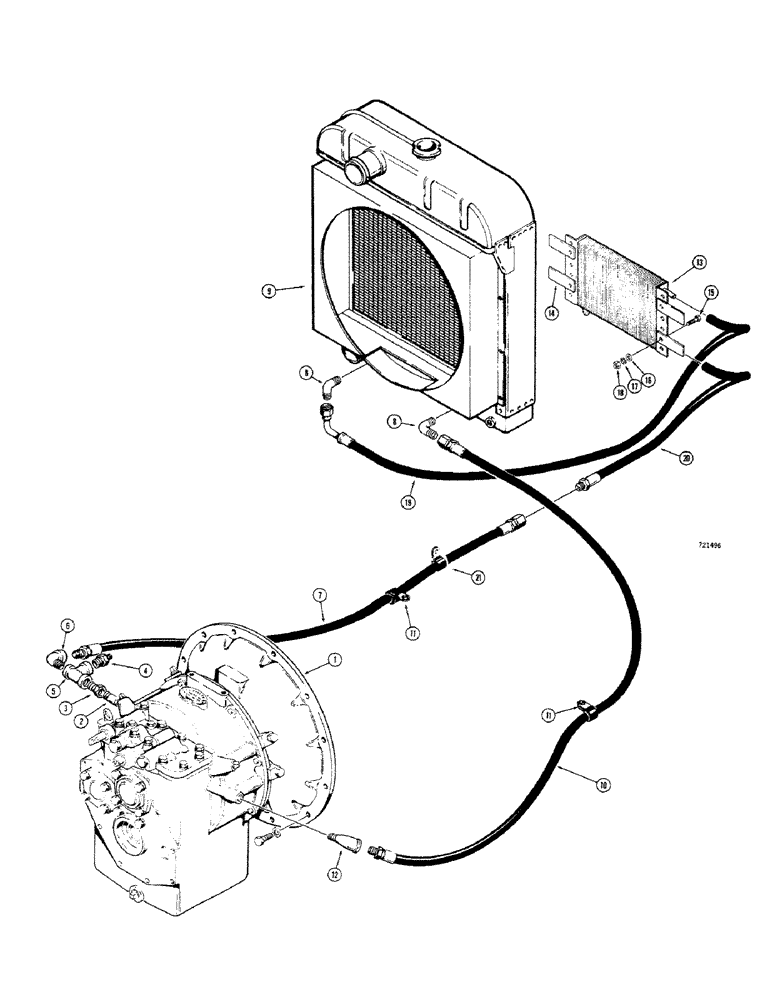

Запчасти Case 680CK (078) - FORWARD AND REVERSE TRANSMISSION COOLING SYSTEM, L54431 (21) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION - forward and reverse (See Figures 70 thru 76 for parts lists)

1шт.

2

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe (3/8" NPT x 2")

1шт.

3

221-1056

BUSHING

REDUCING BUSHING - hex., pipe (1/2" x 3/8" NPT)

1шт.

4

A13795

SENDER UNIT

SENDING UNIT - torque converter temperature gauge

1шт.

5

221-1424

TEE,Pipe, 1/2" NPT

- pipe (1/2" NPT)

1шт.

6

221-1377

ELBOW,90 Degree, 1/2" NPT

- pipe, 90 degrees (1/2" NPT) tee to hose

1шт.

7

L48749

HOSE

- forward and reverse transmission to radiator (56" long)

1шт.

8

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- special, at radiator (Replaces 218-1098)

2шт.

9

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine and forward and reverse transmission cooling (See Figure 66 for related parts)

1шт.

10

L48750

HOSE

- radiator to forward and reverse transmission (62" long)

1шт.

11

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose to frame

2шт.

12

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.

13

L54413

COOLER

- converter oil, kit

1шт.

14

L54240

BRACKET

- mounting, oil cooler, converter kit

4шт.

15

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Converter cooling kit Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

16

195-21

WASHER,5/16"

- plain (), Converter cooling kit 5/16"

4шт.

17

92-5

LOCK WASHER,5/16"

med sect., converter cooling kit 5/16"

4шт.

18

131-607

NUT

- Tinnerman (5/16" - 18 NC), converter cooling kit

4шт.

19

L54410

HOSE

- radiator outlet to cooler, converter cooling kit

1шт.

20

L54409

HOSE,0.38" ID x 26.00"

ASSY, , Return, Converter Cooling Kit 0.38" ID x 26.00"

1шт.

21

D35908

CLAMP,1" Clamping pipe

- hose, converter cooling kit

1шт.
