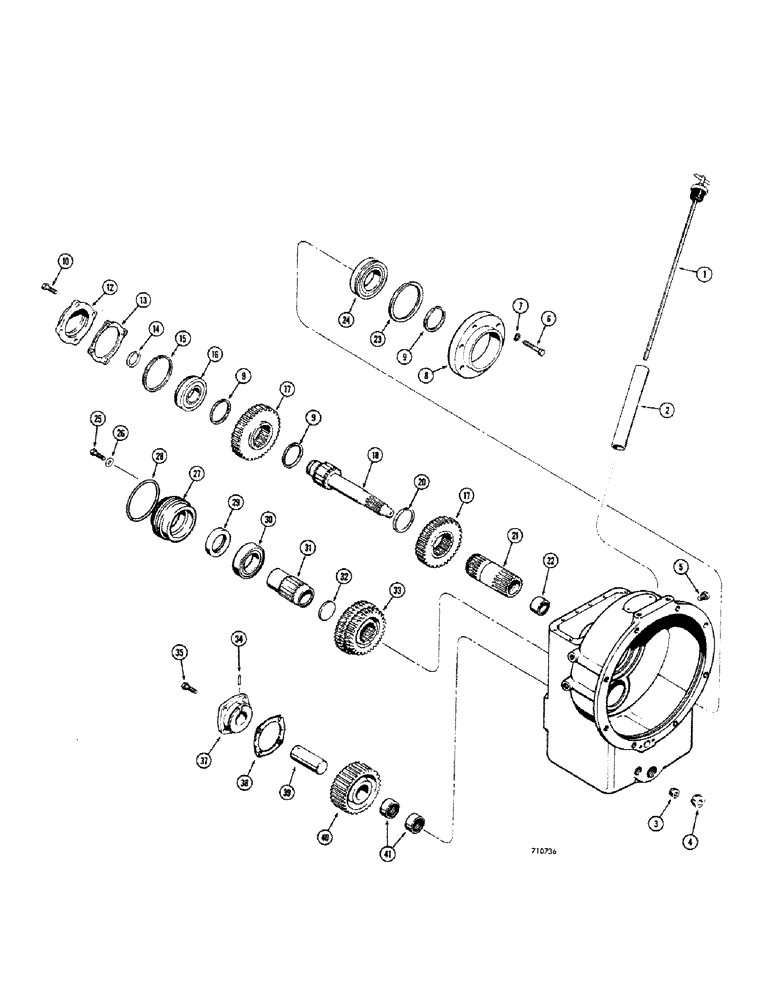

Запчасти Case 680CK (076) - TRANSMISSION, POWER SHUTTLE AND HOUSING (21) - TRANSMISSION

1

L50475

GAUGE ASSY.

DIPSTICK - oil level

1шт.

2

L15281

TUBE,1.005" OD x 8.3" L

- filler and dipstick

1шт.

L47622

TRANSMISSION ASSEMBLY - tractor (Before tractor ser. no. 9108375; except ser. nos. 9106333 thru 9108371), Includes: Ref. 3 - 41

1шт.

L51113

TRANSMISSION ASSEMBLY - tractor (Tractor ser. no. 9108375 and after; also ser. nos. 9106333 thru 9108371), Includes: Ref. 3 - 41

1шт.

3

221-654

PLUG,Hex Hd, 1/2"-14

- pipe, hex. head (1/2" NPT)

1шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. socket head (1" NPT)

1шт.

5

221-1662

PLUG

- pipe, hex. head (1/4" NPT) if used

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

5шт.

7

92-5

LOCK WASHER,5/16"

med sect. 5/16"

5шт.

8

L30236

RETAINER

- bearing

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

3шт.

10

L32122

BOLT

- locking and sealing

4шт.

12

A14854

RETAINER - shaft bearing

1шт.

13

A14855

GASKET

- bearing retainer

1шт.

14

A14835

RING, SNAP

RING - snap, shaft

1шт.

15

A28153

RING

- snap, Serial Range: bearing-retainer

1шт.

16

A14851

BEARING

- forward drive shaft (When stock is exhausted, order L33854 for service)

1шт.

16

L33854

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - forward drive shaft

1шт.

17

A14853

GEAR

- low and reverse (35 teeth)

2шт.

18

A14850

SHAFT

- forward drive

1шт.

L30230

SHAFT

ASSEMBLY - drive, Includes: Ref. 20 - 24

1шт.

20

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

22

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle

1шт.

23

L30233

RING, SNAP

RING - snap, bearing

1шт.

24

A31209

BALL BEARING,49.99mm ID x 89.98mm OD x 20mm W

BEARING - reverse

1шт.

25

L33321

BOLT - locking and sealing (Retainer to transmission case)

2шт.

26

195-23

X

WASHER - plain (3/8") locking, Serial Range: bolt-retainer

2шт.

27

L33320

RETAINER

- output shaft bearing

1шт.

28

D50034

O-RING,0.139" Thk x 3.484" ID

- "O" ring, retainer

1шт.

29

A55446

OIL SEAL

SEAL - oil, output shaft

1шт.

30

G13075

BEARING, BALL

BEARING - output shaft

1шт.

L30336

SHAFT

ASSEMBLY - output

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

32

A7509

PLUG

- expansion

1шт.

33

L30470

GEAR

- countershaft

1шт.

34

A30589

PIN

- lock, shaft

1шт.

35

L32122

BOLT

- locking and sealing

4шт.

37

A14843

CAP

RETAINER - idler shaft

1шт.

38

A14844

GASKET

- retainer

1шт.

39

A14841

SHAFT

- idler gear

1шт.

A14840

GEAR ASSEMBLY - idler, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

41

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle

2шт.
