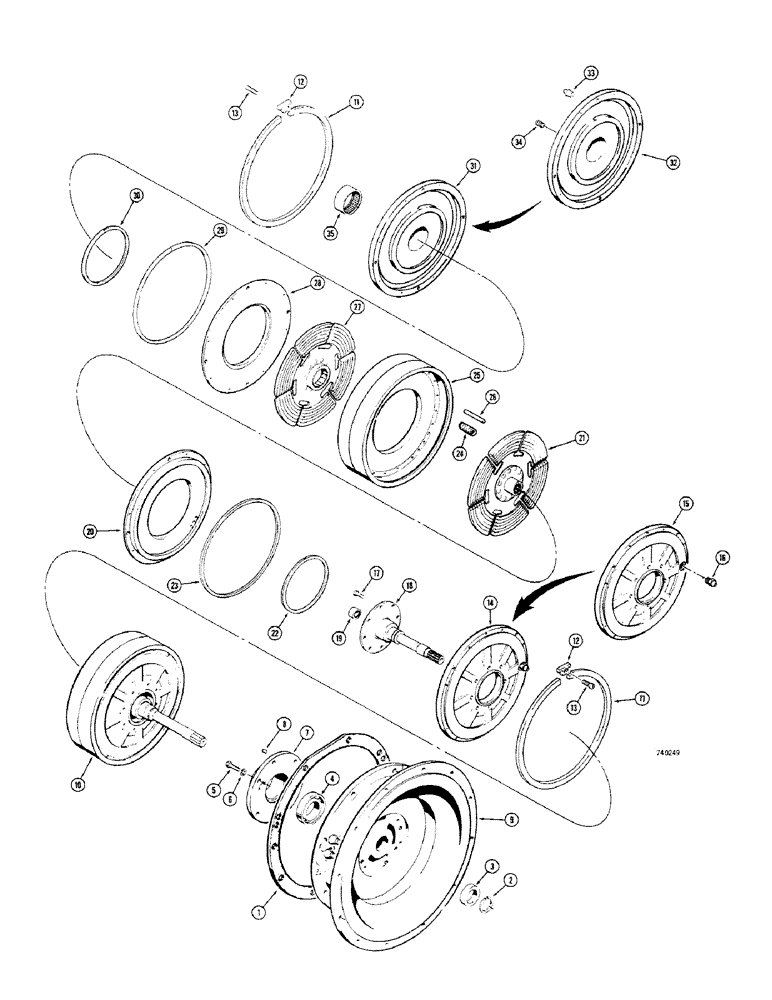

Запчасти Case 680CK (072) - TRANSMISSION, FORWARD AND REVERSE CLUTCH (21) - TRANSMISSION

L47622

SPARE PART TRANSMISSION ASSEMBLY - tractor (Before tractor ser. no. 9108375; except ser. nos. 9106333 thru 9108371), Includes: Ref. 1 - 35

1шт.

L51113

SPARE PART TRASNMISSION ASSEMBLY - tractor (Tractor ser. no. 9108375 and after; also ser. nos. 910633 thru 9108371), Inlcudes: Ref. 1 - 35

1шт.

1

A14886

GASKET

GASKET - transmission housing

1шт.

2

L30484

RING, SNAP

RING SNAP RING - snap, input shaft

1шт.

3

L30483

SPACER

SPACER - bearing

1шт.

4

L30481

BEARING

SPARE PART BEARING - clutch

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

6

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

6шт.

L30479

CAP

RETURN ASSEMBLY - bearing, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

8

L30245

PLUG

PLUG - retainer

2шт.

9

REF

INSTRUCTION

ADAPTER - transmisssion housing to torque converter housing (See Figure 70 for service)

1шт.

10

L33322

CLUTCH

CLUTCH ASSEMBLY - forward and reverse, Includes: Ref. 11 - 35

1шт.

11

L32121

RING, SNAP

RING SNAP RING - snap, Serial Range: cylinder-plate

2шт.

12

L32120

PLATE ASSY.

PLATE - lock, snap ring

2шт.

13

L32084

SCREW

SCREW - locking

2шт.

L33323

SPARE PART CYLINDER AND SHAFT ASSEMBLY - clutch, Includes: Ref. 14 - 19

1шт.

14

L33324

CYLINDER

CYLINDER AND FLYBALL ASSEMBLY - front clutch

1шт.

15

NSS

NOT SOLD SEPARAT

CYLINDER - front clutch

1шт.

16

L33326

SLEEVE CYLINDER

SPARE PART SLEEVE - flyball

1шт.

17

L30440

BOLT

BOLT - special

8шт.

L30477

SHAFT

SHAFT ASSEMBLY - input

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

19

T32720

BEARING

BEARING - needle

1шт.

20

A14830

PISTON ASSY.

PISTON - clutch

1шт.

21

A14822

PLATE

PLATE - front, clutch

1шт.

21

A14822R

REMAN-CLUTCH PLATE

680CK Series C S/N 910600 To 9111008

1шт.

21

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

22

A14832

RING

RING - seal, inner

1шт.

23

A14831

RING

RING - seal, outer

1шт.

24

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

L30694

PLATE

PLATE ASSEMBLY - pressure, Includes: Ref. 25 and 26

1шт.

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assembly, Pressure

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

26

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

27

A14823

PLATE

PLATE - rear, clutch

1шт.

28

A14830

PISTON ASSY.

PISTON - clutch

1шт.

29

A14831

RING

RING - seal, outer

1шт.

30

A14832

RING

RING - seal, inner

1шт.

L33327

CYLINDER

CYLINDER AND BEARING ASSEMBLY - clutch, Includes: Ref. 31 - 34

1шт.

31

NSS

NOT SOLD SEPARAT

CYLINDER AND FLYBALL ASSY. - rear clutch, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

CYLINDER - rear clutch

1шт.

33

L33326

SLEEVE CYLINDER

SPARE PART SLEEVE - flyball

1шт.

34

L30245

PLUG

PLUG - cylinder

2шт.

35

L30246

BEARING

BEARING - needle

1шт.
