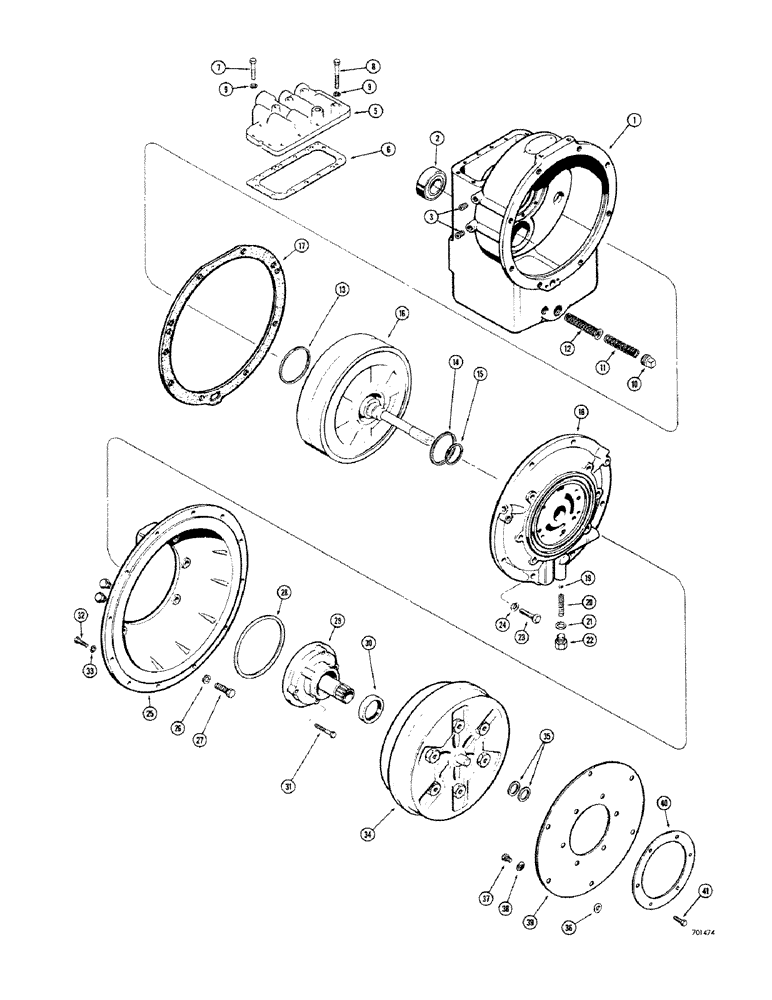

Запчасти Case 680CK (070) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP (21) - TRANSMISSION

L47622

TRANSMISSION ASSEMBLY - tractor (Before tractor ser. no. 9108375; except ser. nos. 9106333 thru 9108371), Includes: Ref. 1 - 31

1шт.

L51113

TRANSMISSION ASSEMBLY - tractor (Tractor ser. no. 9108375 and after; also ser. nos. 9106333 thru 9108371), Includes: Ref. 1 - 31

1шт.

L33890

CASE

HOUSING ASSY. - trans., Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-841

PLUG

- pipe, hex. socket head (1/4" NPT)

2шт.

4

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT) not shown

2шт.

5

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control (Parts list Figure 74)

1шт.

6

L32119

GASKET

- valve body

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

8шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

12шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

1шт.

11

L32746

SPRING

- screen

1шт.

12

L32745

FILTER SCREEN

SCREEN - oil

1шт.

13

L30237

SEAL

RING - sealing

2шт.

14

A14833

SEALING RING

RING - seal, cylinder to torque converter housing

1шт.

15

L30486

SEAL

RING - sealing

1шт.

16

L33322

CLUTCH

ASSEMBLY - forward and reverse (Parts list Figure 72)

1шт.

17

D66388

GASKET

- transmission housing

1шт.

18

L30482

ADAPTER

- transmission to converter (When stock is exhausted, use D66453 adapter, L33705 spring and 211-12 ball for service)

1шт.

18

D66453

ADAPTER retired, Serial Range: transmission-converter

1шт.

See Figures 70 thru 76 for complete transmission

1шт.

Part of Adapter Kit P/N L33856

1шт.

19

211-11

BALL,3/8" Dia

steel, (.) L30482 adapter 3/8" Dia

1шт.

19

211-12

BALL,7/16 Dia

steel, (7/16" dia.) P/N D66453 adapter

1шт.

See Figures 70 thru 76 for complete transmission

1шт.

Part of Adapter Kit P/N L33856

1шт.

20

L30251

VALVE SPRING

SPRING valve, pop,L30482 adapter

1шт.

20

L33705

SPRING

pop, valve, P/N D66453 adapter

1шт.

See Figures 70 thru 76 for complete transmission

1шт.

Part of Adapter Kit P/N L33856

1шт.

21

A14810

WASHER

special

1шт.

See Figures 70 thru 76 for complete transmission

1шт.

Part of Adapter Kit P/N L33856

1шт.

22

A14811

SEAT, VALVE

SEAT valve, spring, pop

1шт.

See Figures 70 thru 76 for complete transmission

1шт.

Part of Adapter Kit P/N L33856

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

25

L58680

HOUSING

- torque converter

1шт.

26

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

6шт.

27

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

6шт.

28

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- pump

1шт.

29

L30488

PUMP

ASSEMBLY - torque converter charging, Includes: Ref. 30

1шт.

29

137093A1R

REMAN-HYD PUMP

680CK, (S/N 910600 TO 9111008), REMAN for Part No. L30488, N.A. Only

1шт.

29

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

30

L30489

OIL SEAL

- pump

1шт.

31

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

12шт.

34

L46455

CONVERTER

- torque

1шт.

35

L11172

SHIM,.0478" Thk

Pump engagement .0478" Thk

1шт.

36

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, steel (3/8" I.D.)

1шт.

L11783

KIT

- torque converter drive, P/N L11783

1шт.

37

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- place (5/16" - 18 NC x 3/4")

6шт.

38

A14512

WASHER

- torque converter drive plate

6шт.

39

A14509

PLATE

- torque converter drive

1шт.

40

A14510

PLATE

- reinforcement

1шт.

41

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- place (3/8" - 24 NF x 1/2")

6шт.

L33856

ADAPTER

KIT - adapter, Includes: Ref. 18, 19, 20, 21 and 22

1шт.
