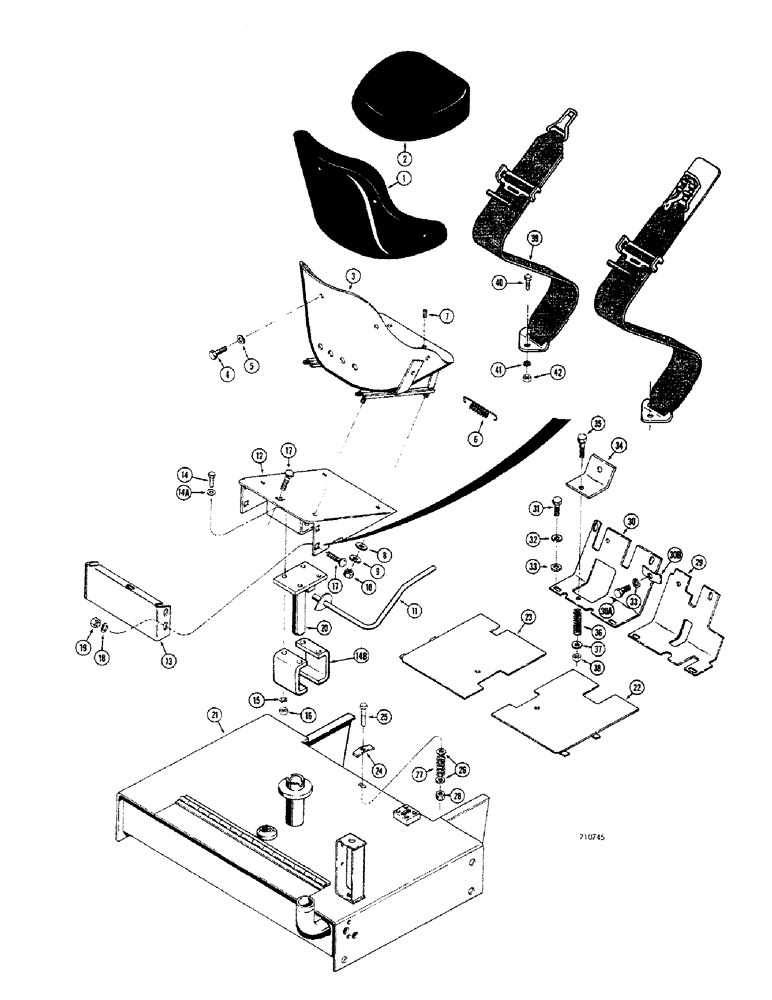

Запчасти Case 680CK (160) - FUEL TANK, FLOOR PLATES AND SEAT (10) - ENGINE

L11074

SEAT

ASSEMBLY - operator's (When stock is exhausted, use L48539 seat), Includes: Ref. 1 - 10

1шт.

L48539

SEAT

ASSEMBLY - operator's takes wide seat belt (Use before tractor sn. 9106180), Includes: Ref. 1 - 10

1шт.

L50199

SEAL

SEAT ASSEMBLY - operators takes 3" seat belt (Use on tractor sn. 9106180 and after), Inclues: Ref. 1 - 10

1шт.

1

L30536

BACKREST

- L11074 seat

1шт.

1

A42747

BACKREST

- L48539 and L50199 seats

1шт.

2

L30535

SEAT CUSHION

CUSHION - L11074 seat

1шт.

2

A42745

SEAT

CUSHION - L48539 and L50199 seats

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

5

195-525

WASHER,3/8", SAE

- plain (3/8") zinc plated

5шт.

6

L30533

VALVE SPRING

SPRING - adjusting

2шт.

7

L30534

X

PIN - cushion alignment (L11074 seat)

2шт.

7

L32870

PIN

- cushion alignment (l48539 and L50199 seats)

2шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

9

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

11

L16245

LEVER

- seat adjustment

1шт.

12

L16669

SUPPORT - seat

1шт.

13

L11422

PANEL - seat

1шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

14a

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

14b

L50408

CLAMP - seat post

2шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

18

92-5

LOCK WASHER,5/16"

med sect. 5/16"

5шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

5шт.

20

L16251

POST - seat, inside

1шт.

21

L51592

TANK ASSEMBLY - fuel

1шт.

22

L46807

PLATE - floor, R.H. (Rear)

1шт.

23

L46805

PLATE - floor, L.H. (Rear)

1шт.

24

L11056

LATCH - floor plate, battery access

1шт.

25

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

26

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

27

A33749

SPRING

- compression, latch

1шт.

28

13-134

NUT - hex. lock (5/16" - 18 NC)

1шт.

29

L41336

PLATE - floor board, R.H. (Front)

1шт.

30

L25723

PLATE - floor board, L.H. (Front) when stock is exhausted, use L50182 plate

1шт.

30

L50182

PLATE - floor board, L.H.

1шт.

30a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

30b

L11056

LATCH - floor plate

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

32

92-5

LOCK WASHER,5/16"

med sect. 5/16"

7шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

6шт.

34

L50411

COVER

- access, floor board

1шт.

35

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

36

A33749

SPRING

- compression, latch

1шт.

37

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

1шт.

39

L48907

BELT

SAFETY BELT, 3" wide (Machinery item)

1шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Square shoulder Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

42

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2")

2шт.
