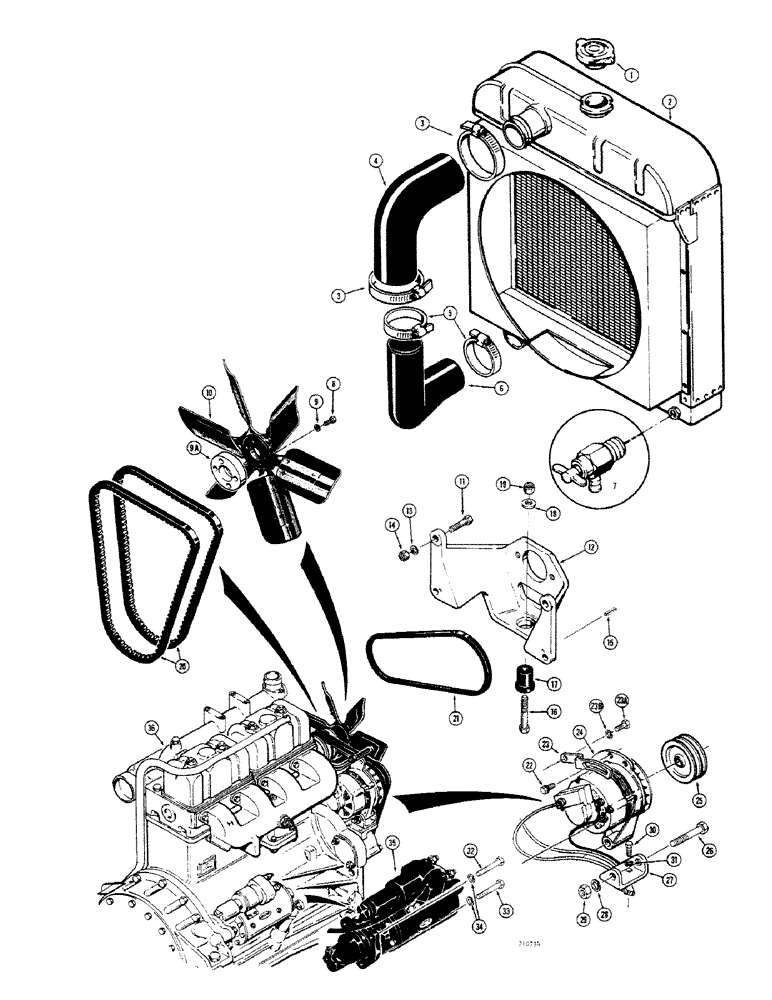

Запчасти Case 680CK (066) - ENGINE AND RELATED PARTS (10) - ENGINE

1

D25826

CAP

- radiator, 7 P.S.I.

1шт.

2

L46138

RADIATOR

- engine cooling (Before tractor ser. no. 9108541)

1шт.

2

L52053

RADIATOR

- engine cooling (Tractor ser. no. 9108541 and after)

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, upper

2шт.

4

L45794

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Upper 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- radiator hose, lower #28, 1.31/2.25 Type F Worm

2шт.

6

L45810

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Lower 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.

7

A23655

VALVE

- radiator drain

1шт.

8

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8" (Used with L49007 spacer only)

4шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4" (Used with A61268 spacer only)

4шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9a

L49007

SPACER

- fan (Used with suction fan on tractors before ser. no. 9108541)

1шт.

9a

A61268

BUSHING

SPACER - fan (Used with suction fan on tractors ser. no. 9108541 and after - used on tractors with optional pusher fan ser. no. 9108541 and after)

1шт.

10

L13551

FAN

- suction (Standard)

1шт.

10

L52024

FAN

- pusher (Optional)

1шт.

11

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

12

L46461

BRACKET

- engine and equipment pump mounting

1шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

14

25-1012

NUT,3/4"-10, G5

4шт.

15

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, #5 x 1-1/2"

2шт.

16

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

17

A19066

MOUNTING PARTS

MOUNT - engine, rubber

1шт.

18

195-48

WASHER,3/4" x 2 7/8" x .165"

- plain (3/4")

1шт.

19

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

20

L49006

SET OF BELTS,0.50" W x 57.00" L

Matched, Fan and alternator drive 0.50" W x 57.00" L

1шт.

21

L11403

BELT,36.50" L

Vacuum pump drive 36.50" L

1шт.

22

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

AND LOCKWASHER - 5/16" - 18 NC x 3/4"

1шт.

23

L41455

STRAP

- alternator adjusting

1шт.

23a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

23b

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

24

A41340

ALTERNATOR

- electrical (Parts list Figure 44)

1шт.

25

A41057

PULLEY

- alternator

1шт.

26

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

27

A38492

BRACKET

- alternator mounting

1шт.

28

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5 (Used with A59217 starter)

1шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3" (Used with L52632 starter)

1шт.

33

A10000

SNAP RING,#306, Ext

BOLT - special (Used with A59217 starter)

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Used with L52632 starter) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

35

R24323

WASHER

- special, starter mounting (Used with L52632 starter only)

3шт.

36

NSS

NOT SOLD SEPARAT

STARTER - engine, electrical (See Figures 38 & 40 for proper starter)

1шт.

37

NSS

NOT SOLD SEPARAT

ENGINE - diesel, 301 cubic inch (Parts list Figures 8 thru 36)

1шт.
