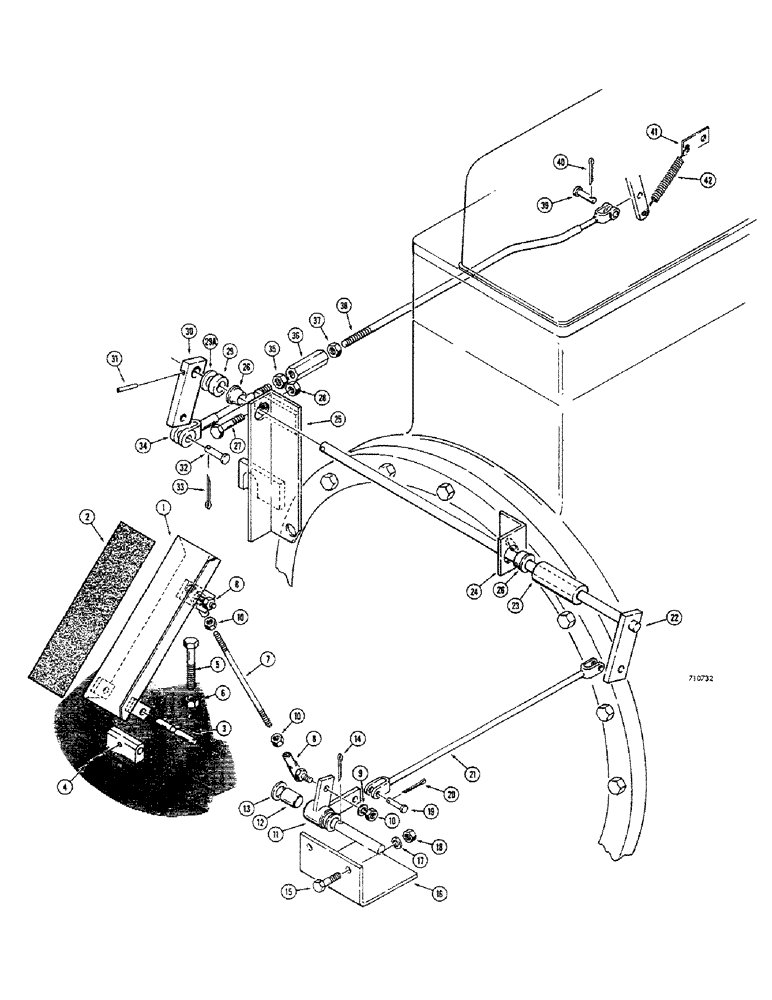

Запчасти Case 680CK (060) - ENGINE CONTROLS, ACCELERATOR PEDAL AND LINKAGE (10) - ENGINE

1

L47228

PEDAL

- accelerator, foot

1шт.

2

L12421

PAD

- accelerator pedal

1шт.

3

L12427

PIN

- pivot, accelerator

1шт.

4

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

5

113-685

HHCS - 1/2" - 13 NC x 4" (Accelerator stop)

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

7

L47225

LINK - accelerator pedal to control arm

1шт.

8

D38296

JOINT

BALL JOINT - accelerator link

2шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

10

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

4шт.

L47723

ARM ASSEMBLY - accelerator pedal to throttle rod, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ARM - pedal to throttle rod

1шт.

12

A29946

BUSHING

- arm

1шт.

13

195-541

WASHER,5/8", SAE

- plain (5/8")

2шт.

14

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

L47219

SUPPORT - throttle linkage

1шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

20

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter, 3/32" dia. x 1/2"

2шт.

21

L47221

ROD - throttle, primary

1шт.

22

L19426

CROSS SHAFT - throttle control

1шт.

23

L19244

SPACER - cross shaft, R.H.

1шт.

24

L23825

BRACKET ASSEMBLY - cross shaft, R.H., Includes: Ref. 26

1шт.

25

L47227

BRACKET ASSEMBLY - cross shaft, L.H., Includes: Ref. 26

1шт.

26

L23765

BEARING

- cross shaft

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Low idle adjustment Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

28

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

29

L19983

SPACER

- cross shaft, L.H.

1шт.

29a

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

30

L19245

LEVER

- throttle control, L.H.

1шт.

31

135-334

PULLEY

PIN - roll, 5/32" dia. x 1"

1шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

33

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter, 3/32" dia. x 7/8"

1шт.

34

L19541

ROD

- throttle control, rear

1шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC) R.H. thread (If used)

1шт.

36

F22267

TURNBUCKLE

- throttle rod adjustment

1шт.

37

25-343

NUT - hex., jam (3/8" - 16 NC) L.H. thread

1шт.

38

L19542

ROD

- throttle control, front

1шт.

39

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

1шт.

40

132-4

PIN - cotter, 1/16" dia. x 7/16"

1шт.

41

L40703

PLATE ASSY.

PLATE - retaining, throttle return spring

1шт.

42

L50735

VALVE SPRING

SPRING - throttle return

1шт.
