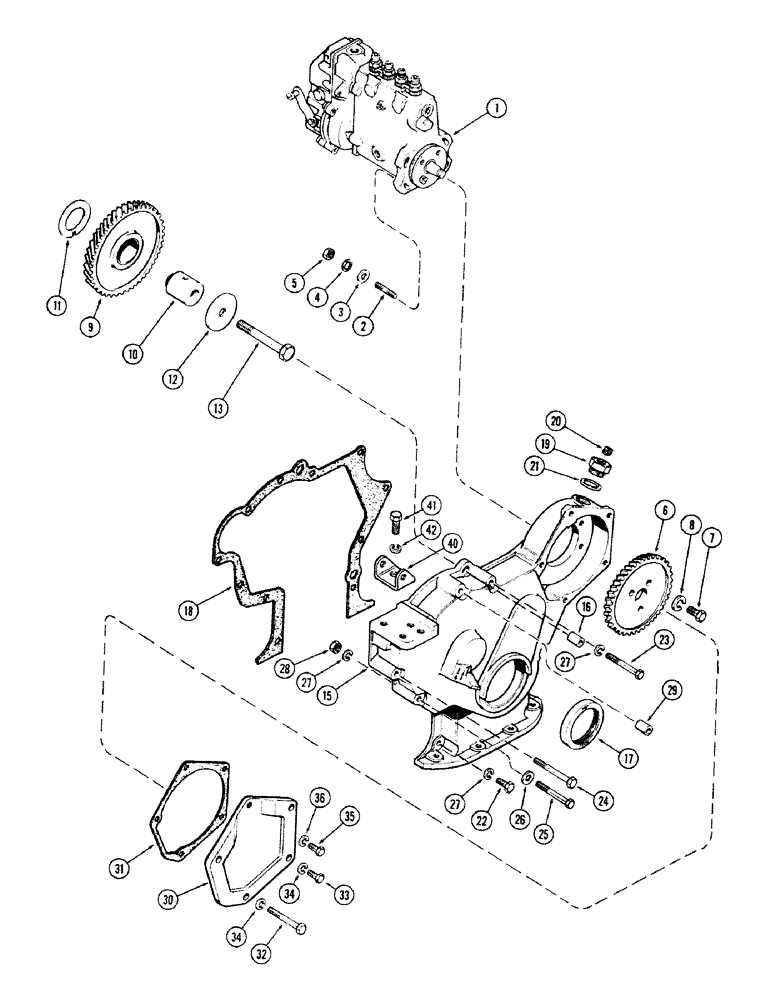

Запчасти Case 680CK (034) - FUEL INJECTION PUMP AND DRIVE, (301B) DIESEL ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A62453
PUMP, FUEL INJECTION
PUMP ASSY. - fuel injection (See Figure 36)
1шт.
2
A58689
STUD
- 3/8" N.C. x 1-7/8"
4шт.
3
A57470
WASHER
- stud, 13/32 x 11/16 x 16 ga.
4шт.
4
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
5
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
6
A58693
GEAR
- injection pump
1шт.
7
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
3шт.
8
92-6
LOCK WASHER,3/8"
3шт.
9
A62542
GEAR
ASSY. - idler w/bushing
1шт.
10
A58690
SHAFT
- idler gear
1шт.
11
A58691
WASHER
- thrust, idler shaft
1шт.
12
A58692
PLATE
- thrust, idler shaft
1шт.
13
13-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
1шт.
15
A58609
COVER
ASSY. - timing gear, Includes: Ref. 16
1шт.
16
A58611
PIN
- dowel
2шт.
17
A62049
OIL SEAL
- crankshaft front oil
1шт.
18
A58612
GASKET
-, Serial Range: cover-block
1шт.
19
A18550
PLUG
- timing window
1шт.
20
221-843
PLUG,Hex Soc, 3/8"-18
- 3/8" P.T. hex. sckt. hd.
1шт.
21
A58613
SEALING WASHER
GASKET - plug
1шт.
22
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
23
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" N.C. hex.
2шт.
24
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
1шт.
25
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
- 3/8 x 3-3/4" N.C. hex.
2шт.
26
195-25
WASHER,3/8"
- 13/32 x 13/16 x 1/16"
2шт.
27
92-6
LOCK WASHER,3/8"
9шт.
28
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
29
A19774
BUSHING
SPACER - alternator pry point
1шт.
30
A61053
COVER
- fuel pump
1шт.
31
A58615
GASKET
- cover
1шт.
32
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
2шт.
33
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
34
92-6
LOCK WASHER,3/8"
4шт.
35
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
36
92-5
LOCK WASHER,5/16"
1шт.
40
A38492
BRACKET
- alternator mounting
1шт.
41
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
42
92-6
LOCK WASHER,3/8"
2шт.
Выбрано товаров: 38
