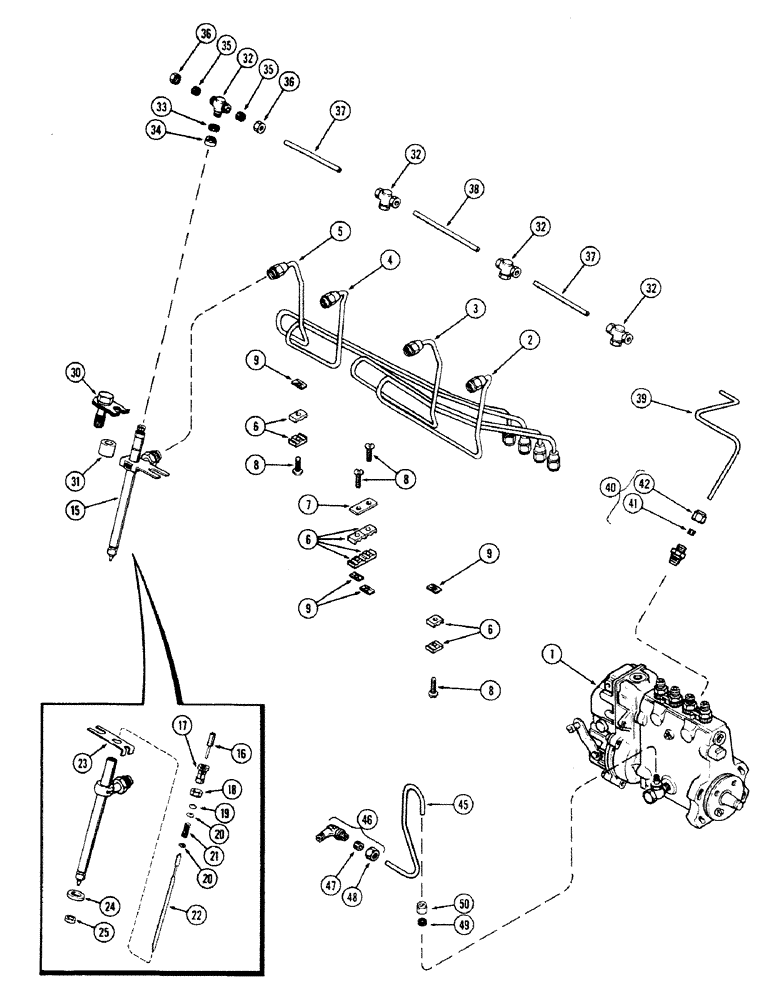

Запчасти Case 680CK (030) - FUEL INJECTION SYSTEM, (301B) DIESEL ENGINE (10) - ENGINE

1

A62453

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (See Figure 36)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58709

BRACKET

- clamp, injection tube

8шт.

7

A58710

PLATE

- bracket

1шт.

8

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C. rd. hd.

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat Tinnerman

4шт.

15

A58694

NOZZLE

ASSY. - fuel injection (See note) (Supplier's no. I18084 stamped on body), Includes: Ref. 16 - 25

4шт.

A138322R

REMAN-INJECT NOZZLE

680CK SERIES-C (S/N 910600 TO 9111008) REMAN FOR NEW P/N A58694

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - adjusting

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

18

A42424

LOCK NUT

- hex.

1шт.

19

A41407

WASHER

- ball

1шт.

20

A41401

SEAT

- spring

2шт.

21

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

30

A58695

CLAMP

ASSY. - nozzle

4шт.

31

A58696

SPACER

- nozzle clamp

4шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSY. - nozzle leak-off

4шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

4шт.

34

A58961

NUT

- tee

4шт.

35

222-102

SLEEVE,1/4" Tube

8шт.

36

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

8шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

2шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

1шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A28098

VALVE

ASSY. - check, leak-off, Includes: Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

45

A59226

TUBE

- heat exchanger to injection pump

1шт.

46

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4 x 1/4" P.T., Includes: Ref. 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

- for 1/8" tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/8" tube

1шт.

49

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer (3/4" P.T. to 1/4" P.T.)

1шт.

50

222-102

SLEEVE,1/4" Tube

- for 1/8" tube

1шт.

51

87017024

TUBE NUT,1/2"-24

NUT - for 1/8" tube

1шт.
