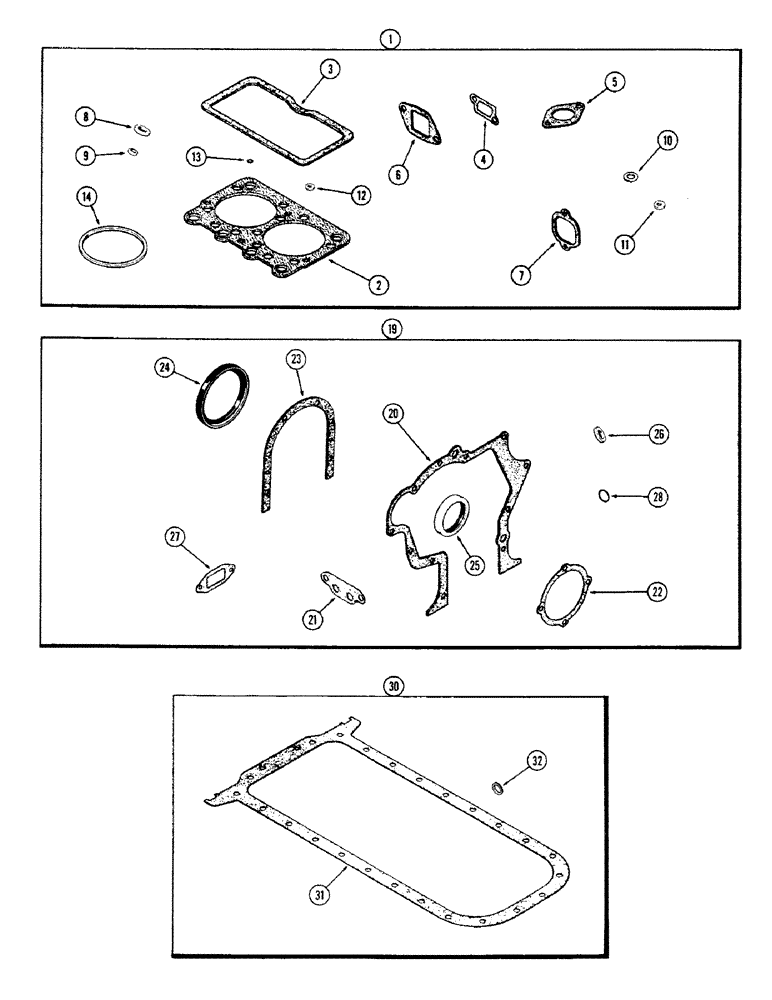

Запчасти Case 680CK (028) - ENGINE GASKET KITS, (301B) DIESEL ENGINE (10) - ENGINE

1

A42891

KIT

VALVE GRIND GASKET KIT - (See note), Includes: Ref. 2 - 14

1шт.

2

A62216

GASKET

- cylinder, Serial Range: head-block

2шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, injector nozzle

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

2шт.

11

A23684

GASKET

GASKET - cover studs

4шт.

12

A34133

GASKET

- breather screw

2шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

14

A59095

GASKET

RING - fire, cylinder head

4шт.

19

A42096

GASKET

CYLINDER BLOCK GASKET KIT - (See note), Includes: Ref. 20 - 28

1шт.

20

A58612

GASKET

- timing gear cover

1шт.

21

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

22

A58646

GASKET

- water pump

1шт.

23

A32830

GASKET

- rear oil seal retainer

1шт.

24

A23085

OIL SEAL

- crankshaft rear

1шт.

25

A57342

SEAL

- oil, crankshaft front

1шт.

26

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

27

A58649

GASKET

- water pump body

1шт.

28

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - filter base (Not applicable)

3шт.

30

A42221

GASKET KIT

OIL PAN GASKET KIT - (See note), Includes Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 30)

1шт.

32

A58933

OIL PAN GASKET SET

- drain plug

1шт.
