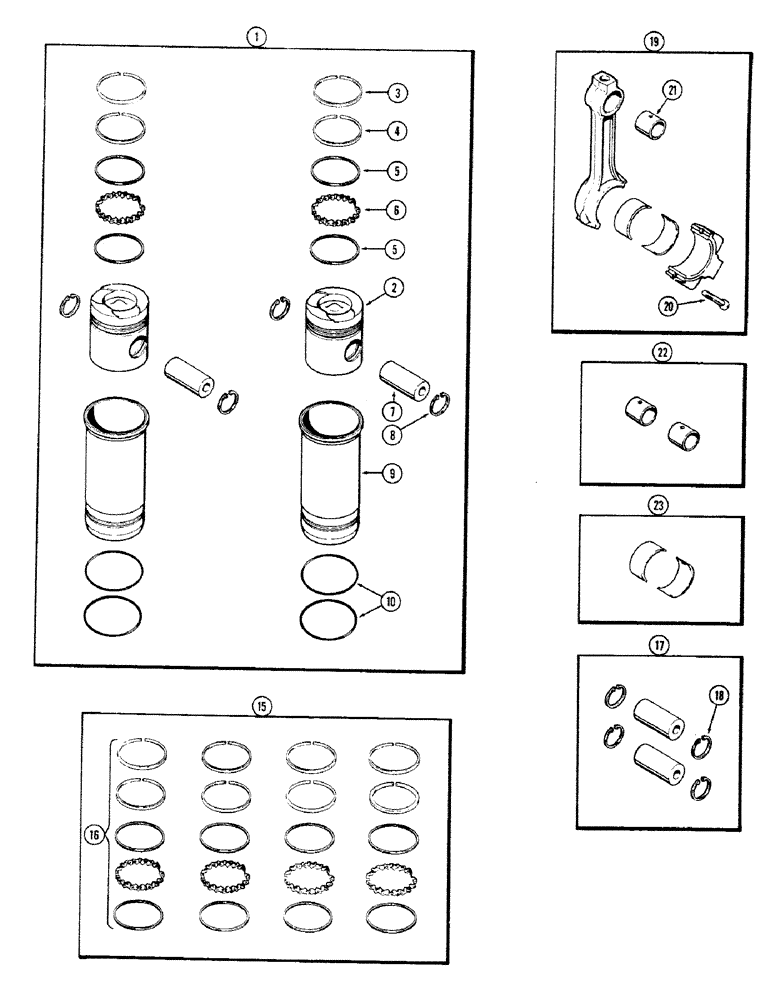

Запчасти Case 680CK (020) - PISTON ASSEMBLY AND CONNECTING RODS, (301B) DIESEL ENGINE (10) - ENGINE

1

A43023

PISTON

& SLEEVE KIT - (Matched set of 2) (Replaces A42069), Includes: Ref. 2 - 9

2шт.

2

A58864

PISTON

- cylinder, 4-3/8" dia.

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top (Order ref. 15 or 16)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref. 15 or 16)

2шт.

5

NSS

NOT SOLD SEPARAT

RAIL - oil control ring (Order ref. 15 or 16)

4шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - oil control ring (Order ref. 15 or 16)

2шт.

7

NSS

NOT SOLD SEPARAT

PIN - wrist, piston (Order ref. 17)

2шт.

8

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , wrist pin, see ref. 17 1.50", Int, #150

4шт.

9

A59093

SLEEVE

- cylinder, 4-3/8" bore

2шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing, 4-1/2 x 4-3/4 x 1/8"

8шт.

15

A43031

KIT

RING KIT - re-ring (4 pistons) (Replaces A42240), Includes: Ref. 16

1шт.

16

A43028

RING, SET

RING KIT - re-ring (1 piston) (Replaces A42079)

4шт.

17

A21725

KIT

PIN KIT - wrist (Set of 2), Includes: Ref. 18

2шт.

18

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , wrist pin 1.50", Int, #150

4шт.

19

A62952

ROD

ASSY. - connecting (1st used eng. ser. no. 2331513)

4шт.

(For Large Cranks)

1шт.

19

A58862

ROD

ASSY. - connecting (Used prior to eng. ser. no. 2331513), Includes: Ref. 20

4шт.

(For Small Cranks)

1шт.

20

A62184

STEP BOLT

BOLT - connecting rod cap

2шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - wrist pin (Order ref. 22)

1шт.

22

A21722

BUSHING

KIT - wrist pin (Set of 2)

2шт.

23

A20393

LINING

LINERS - bearing, conn. rod (Std.)

4шт.

23

A20569

JOURNAL

LINERS - bearing, conn. rod (.002" undersize)

4шт.

23

A20571

BEARING LINER

LINERS - bearing, conn. rod (.010" undersize)

4шт.

23

A20573

KIT

LINERS - bearing, conn. rod (.020" undersize)

4шт.

23

A20576

LINING

LINERS - bearing, conn. rod (.030" undersize)

4шт.
