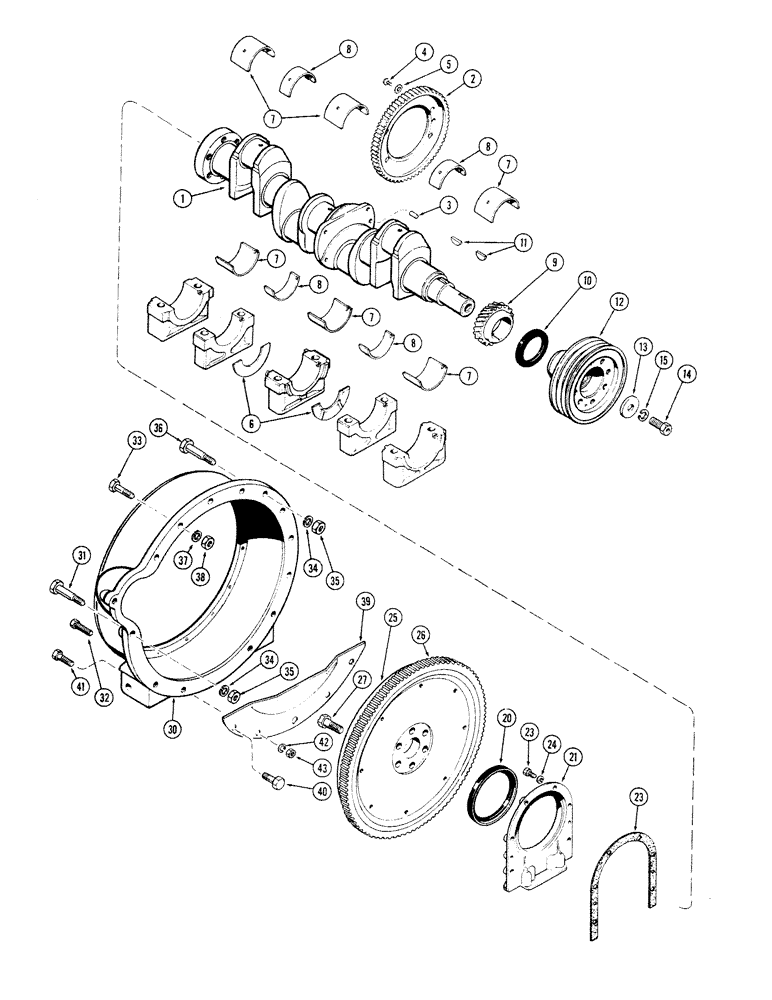

Запчасти Case 680CK (018) - CRANKSHAFT, FLYWHEEL AND HOUSING, (301B) DIESEL ENGINE (10) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62450

GEAR

- balancer drive (10 pitch)

1шт.

(86 Teeth)

1шт.

3

A8134

PIN

- dowel, balancer drive gear

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - drive gear mounting

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (Std.)

2шт.

6

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.006" oversize)

2шт.

7

A42490

BEARING LINER

LINERS - wide, crankshaft bearing (Std.)

3шт.

7

A42486

LINING

LINERS - wide, crankshaft bearing (.002" undersize)

3шт.

7

A42487

LINER

S - wide, crankshaft bearing (.010" undersize)

3шт.

7

A42488

LINER

S - wide, crankshaft bearing (.020" undersize)

3шт.

7

A42489

BEARING

LINERS - wide, crankshaft bearing (.030" undersize)

3шт.

8

A42492

KIT

LINERS - narrow, crankshaft bearing (Std.)

2шт.

8

A42482

LINING

LINERS - narrow, crankshaft bearing (.002" undersize)

2шт.

8

A42483

LINING

LINERS - narrow, crankshaft bearing (.010" undersize)

2шт.

8

A42484

KIT

LINERS - narrow, crankshaft bearing (.020" undersize)

2шт.

8

A42485

LINING

LINERS - narrow, crankshaft bearing (.030" undersize)

2шт.

9

A58573

GEAR

- crankshaft

1шт.

10

A62049

OIL SEAL

- oil, crankshaft front (2-5/8 x 3-5/8 x 1/2")

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

12

A60012

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- pulley retainer, 21/32 x 2-1/8 x 1/4"

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley, 5/8 x 1-1/2" N.F. hex. spec.

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A62050

OIL SEAL

- oil, crankshaft rear (4-3/4 x 5-3/4 x 1/2")

1шт.

21

A57457

RETAINER

- oil seal, crankshaft rear

1шт.

22

A32830

GASKET

- retainer, rear oil seal

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A60500

FLYWHEEL ASSY., Includes: Ref. 26

1шт.

26

A58778

GEAR

- ring, flywheel (139 teeth)

1шт.

27

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- 5/8 x 1-1/2" N.F. hex.

6шт.

30

A9397

HOUSING

- flywheel

1шт.

31

A61040

STEP BOLT

BOLT - dowel, 1/2 x 3" N.C. hex.

1шт.

31

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-7/16" N.C. hex.

1шт.

32

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

3шт.

33

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex.

3шт.

34

92-8

LOCK WASHER,1/2"

8шт.

35

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

5шт.

36

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3" N.C. 12 pt.

2шт.

37

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

38

25-1012

NUT,3/4"-10, G5

2шт.

39

A58931

GUARD

SHIELD - dust, flywheel

1шт.

40

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2 x 3/4" N.C. hex.

2шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.
