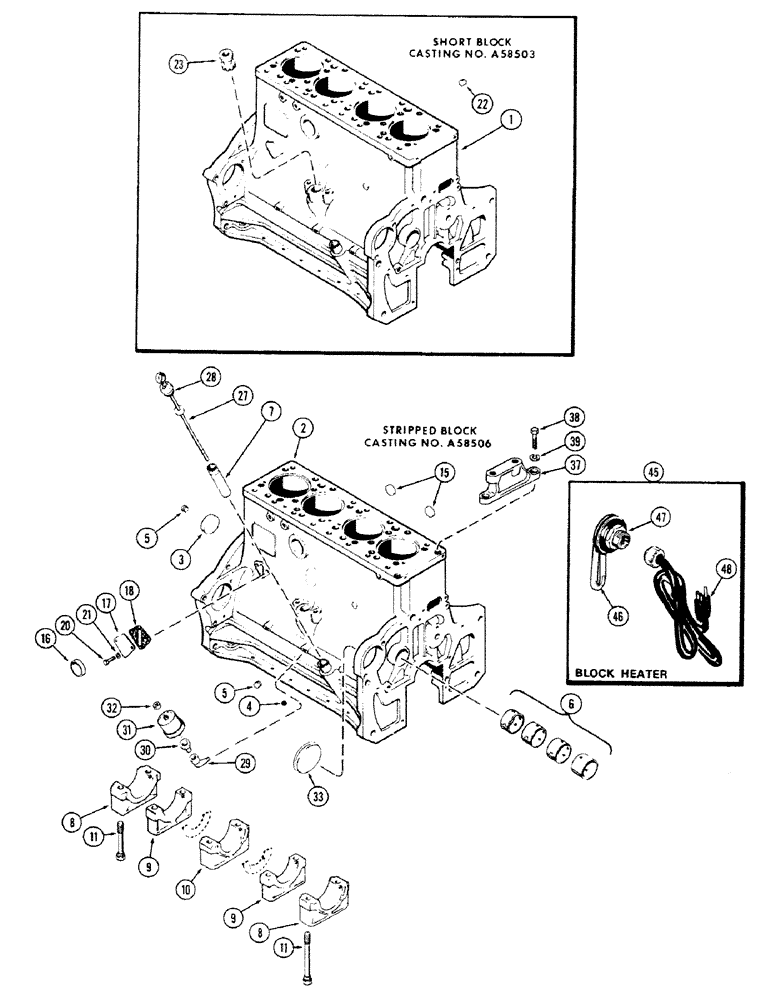

Запчасти Case 680CK (016) - CYLINDER BLOCK ASSEMBLY, (301B) DIESEL ENGINE, BLOCK HEATER (10) - ENGINE

1

A43053

BLOCK

ASSY. - short (Includes stripped block, pistons, conn. rods & brgs., crankshaft & brgs., rear oil seal, camshaft, lifters & timing gears) (Casting no. A58503), Includes: Ref. 2 - 23

1шт.

2

NLS

NO LONGER SERVICED

ASSY. - stripped (Casting no. A58506), Includes: Ref. 3 - 21

1шт.

3

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

4

221-1041

PLUG

- oil gallery, 1/8" P.T. sltd. hdless.

2шт.

5

221-1843

PLUG

- oil gallery, 3/8" P.T. sckt. hd.

4шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

8

A58783

BEARING CAP

CAP - wide crankshaft bearing

2шт.

9

A58784

BEARING CAP

CAP - narrow crankshaft bearing

2шт.

10

A58785

BEARING CAP

CAP - thrust bearing, crankshaft

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap, 5/8 x 4-1/2" N.C. spec.

10шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

2шт.

16

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup type

1шт.

17

G11702

COVER

- fuel pump opening

1шт.

18

G46902

GASKET

- cover

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" P.T. sckt. hd., L.H. side

1шт.

23

A34266

DRIVE

ASSY. - tachometer

1шт.

27

A34541

DIPSTICK

- oil level, Includes: Ref. 28

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

29

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

30

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- 3/8 x 1/8" hex. reducing

1шт.

31

A35031

SENDER UNIT

UNIT - sending, engine oil pressure

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. Keps

1шт.

33

A29268

PLUG

COVER - pump opening

1шт.

37

A61155

BRACKET

- compressor mounting

1шт.

38

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

39

92-8

LOCK WASHER,1/2"

2шт.

45

A42279

HEATER

ASSY. - block, Inlcudes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - block heater, Includes: Ref. 47 and 48

1шт.

47

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - 1-3/4 x 2 x 1/8", Block Heater

1шт.

48

A42297

LAMP

CORD ASSY. - block heater, w/plugs

1шт.
