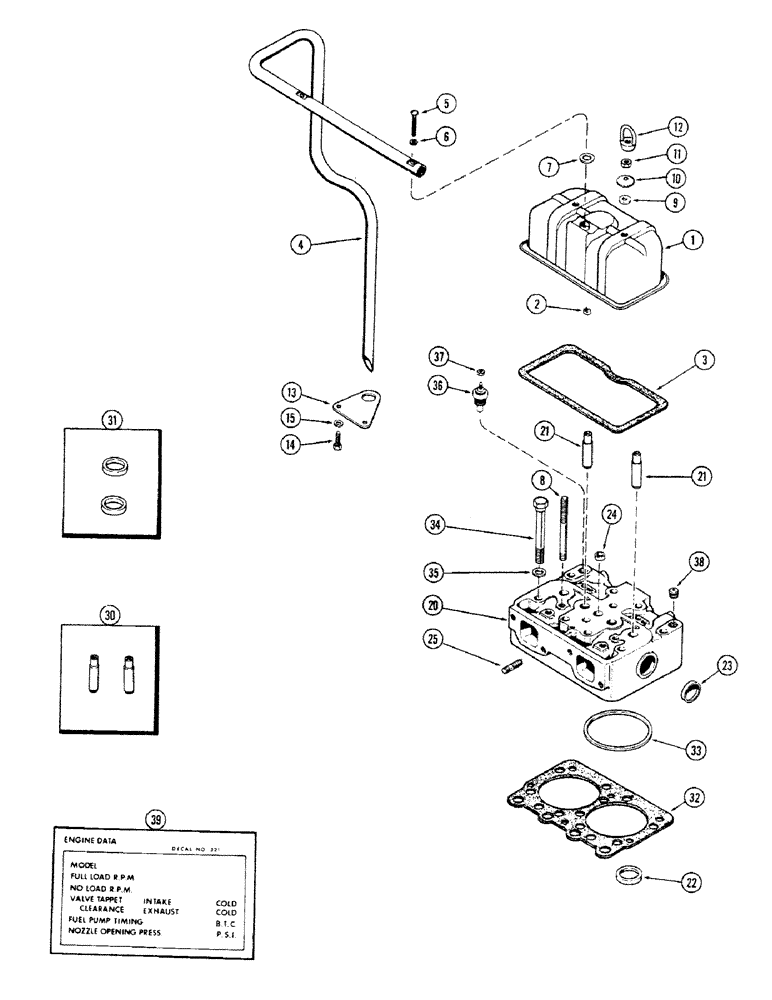

Запчасти Case 680CK (012) - CYLINDER HEAD AND COVER, (301B) DIESEL ENGINE (10) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Inlcudes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A58928

CYLINDER HEAD GASKET

- cover

2шт.

4

A58733

TUBE

- breather

1шт.

5

75-440

SCREW

- 1/4 x 2-1/2" rd. hd. mach.

2шт.

6

A34133

GASKET

- tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

2шт.

8

A60885

STUD

- 7/16" N.C. x 6-1/16"

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

- dished, cover stud

4шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

12

A60567

EYE

BOLT - eye, engine lifting

2шт.

13

A58734

BRACKET

- breather tube

1шт.

14

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. Sems

2шт.

15

195-25

WASHER,3/8"

- spacer, 13/32 x 13/16 x 1/16"

8шт.

20

A58867

CYLINDER

HEAD ASSY. - cylinder (Casting no. A58522), Includes: Ref. 21 - 24

2шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 30)

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 31)

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

25

A59077

STUD

- manifold, 3/8" N.C. x 1-13/16"

16шт.

30

A41781

GUIDE

S - valve stem (Set of 2)

4шт.

31

A33454

INSERT

S - exhaust valve seat (Set of 2)

2шт.

32

A62216

GASKET

- cylinder head

2шт.

33

A59095

GASKET

RING - fire (Std.)

4шт.

33

A42595

GASKET

RING - fire, thick (Coded w/blue stripe)

4шт.

34

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex.

20шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 3/16"

20шт.

36

A21462

SENDER UNIT

UNIT - sender, engine temperature (Replaces F13156) (1st used eng. ser. no. 2320751)

1шт.

37

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. Keps, brass

1шт.

38

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

3шт.

39

321-1754

DECAL - engine data

1шт.
