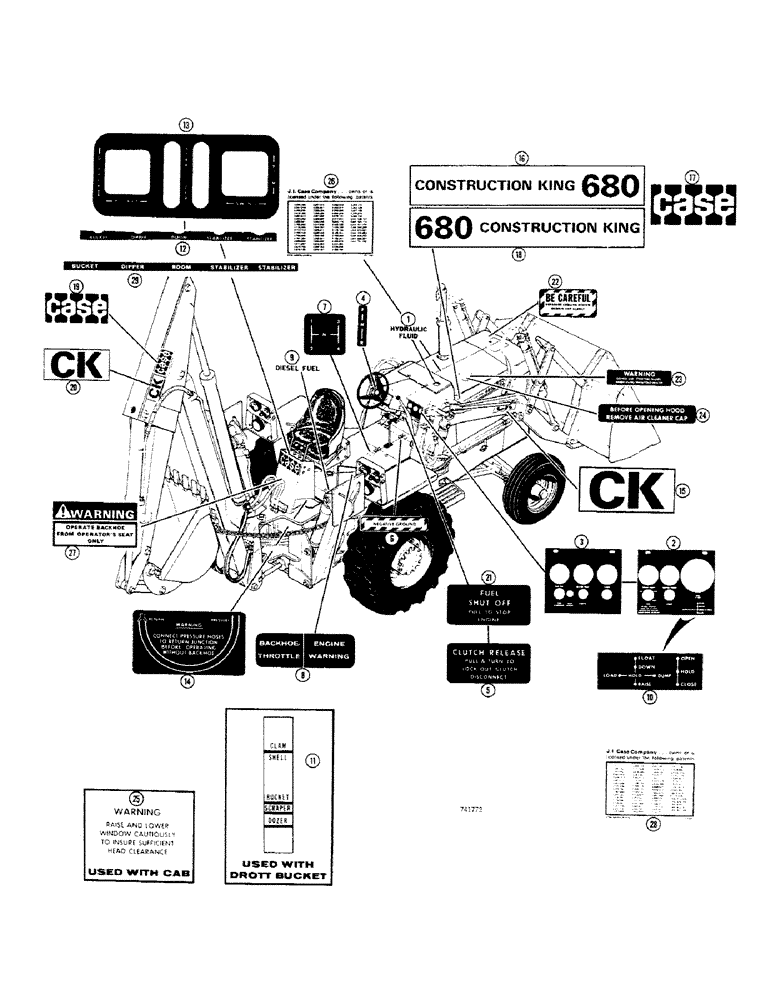

Запчасти Case 680CK (386) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

L48914

KIT

DECAL KIT - 680 C.K., series "C", Inlcudes: Ref. 1 - 29

1шт.

1

321-229

DECAL

- hydraulic fluid

1шт.

2

321-1262

DECAL - instrument panel, R.H.

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

3

321-1263

DECAL

- instrument panel, L.H.

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

4

321-1001

DECAL

- forward and reverse shift pattern

1шт.

5

321-1776

DECAL - clutch release information

1шт.

6

321-704

DECAL

- negative ground

1шт.

7

321-1000

DECAL

- transmission shift pattern

1шт.

8

321-1261

DECAL

- backhoe throttle and engine warning light

1шт.

9

321-230

DECAL

- diesel fuel

1шт.

10

321-1318

DECAL - control valve, Drott 4-in-1 bucket

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

11

321-1225

DECAL - bucket position, Drott 4-in-1 bucket

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

12

321-1264

DECAL

- backhoe control panel (Used on individual lever console)

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

13

321-1037

DECAL - backhoe control panel (Used on dual lever console)

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

14

321-1301

DECAL - backhoe removal warning

1шт.

15

321-1560

DECAL

- CK, at loader lift frame

2шт.

16

321-1874

DECAL

- construction king 680 (R.H.) hood support channel

1шт.

17

321-1440

DECAL

- CASE (Hood support channel)

2шт.

18

321-1873

DECAL

- 680 construction king (L.H.) hood support channel

1шт.

19

321-1572

DECAL

- CASE (At control and at both sides of dipper)

3шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

20

321-1482

DECAL

- CK (Both sides of dipper)

2шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

21

321-1775

DECAL - fuel shut off

1шт.

22

321-122

DECAL

- cooling system, at radiator cap

1шт.

23

321-1012

DECAL

- cold weather start warning

1шт.

24

321-1006

DECAL

- hood raising instructions, at air cleaner cap

1шт.

25

321-1291

DECAL - warning, rear window clearance

1шт.

This item is not part of the L48914 decal kit and must be ordered separately.

1шт.

26

321-246

DECAL

- tractor patents

1шт.

27

321-2091

DECAL

- backhoe warning

1шт.

28

321-663

DECAL

- patent

1шт.

29

321-2495

DECAL - backhoe operator's console

1шт.
