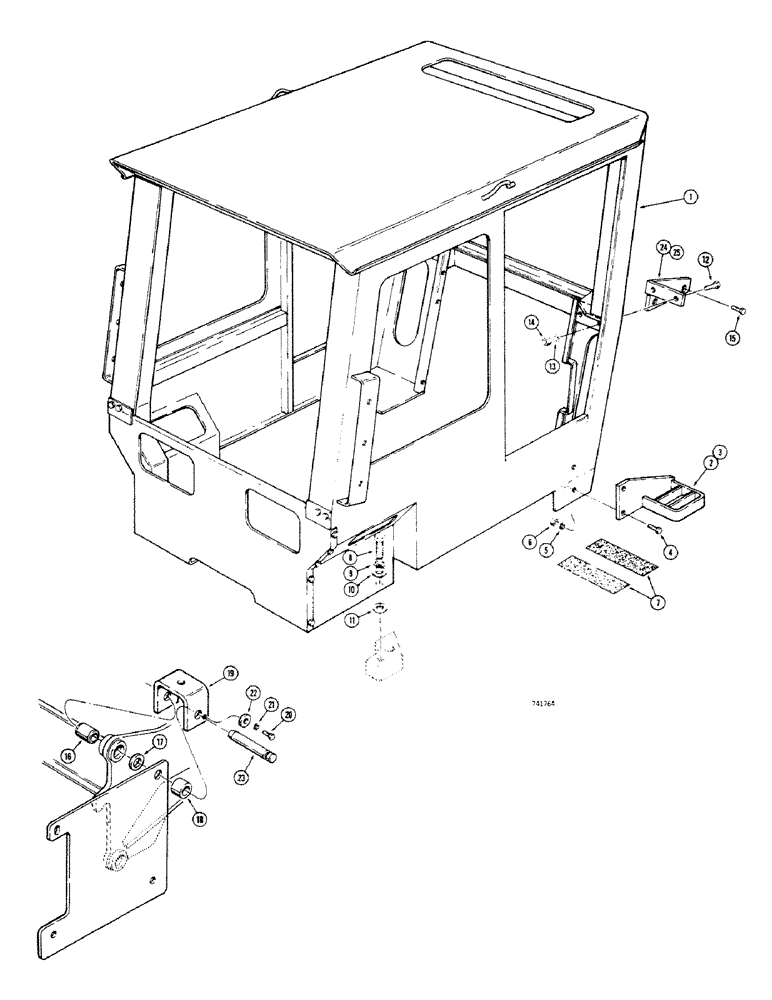

Запчасти Case 680CK (166) - ROPS CANOPY, (USED ON BACKHOE AND COUNTERWEIGHT MODELS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L52509

CANOPY - ROPS (Used on models with backhoe)

1шт.

1

L53198

CANOPY - ROPS (Used on models with counterweight)

1шт.

2

L15161

STEP - operators cab, R.H.

1шт.

3

L15162

STEP - operator's cab, L.H.

1шт.

4

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

6

26-107

NUT - hex. (7/16" - 14 NC)

4шт.

7

A55582

PAD

- non-slip

4шт.

8

113-906

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8, Full Thd

HHCS - 1" - 8 NC x 2-3/4" (Cab or canopy rear mounting)

2шт.

9

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

10

195-2100

WASHER,1 1/32" x 2" x .238"

- plain (1")

2шт.

11

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Cab or canopy front mounting) Hex, 1/2"-13 x 2", G5

4шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

16

D44549

BUSHING

- tractor chassis, mouting parts

2шт.

17

L53147

SPACER - bracket (Inner), mounting parts

2шт.

18

L53148

SPACER - bracket (Outer), mounting parts

2шт.

19

L53146

BRACKET - canopy or cab mounting parts

2шт.

20

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4", mounting parts

2шт.

21

92-8

LOCK WASHER,1/2"

med. sect., mounting parts 1/2"

2шт.

22

L40681

LOCK WASHER

- pin retainer, mounting parts

2шт.

23

L53143

PIN - bracket to chassis, mounting parts

2шт.

24

L35808

BRACKET - mounting, front (R.H.) used on all models, parts

1шт.

25

L35809

BRACKET - mounting, front (L.H.) used on all models, parts

1шт.
