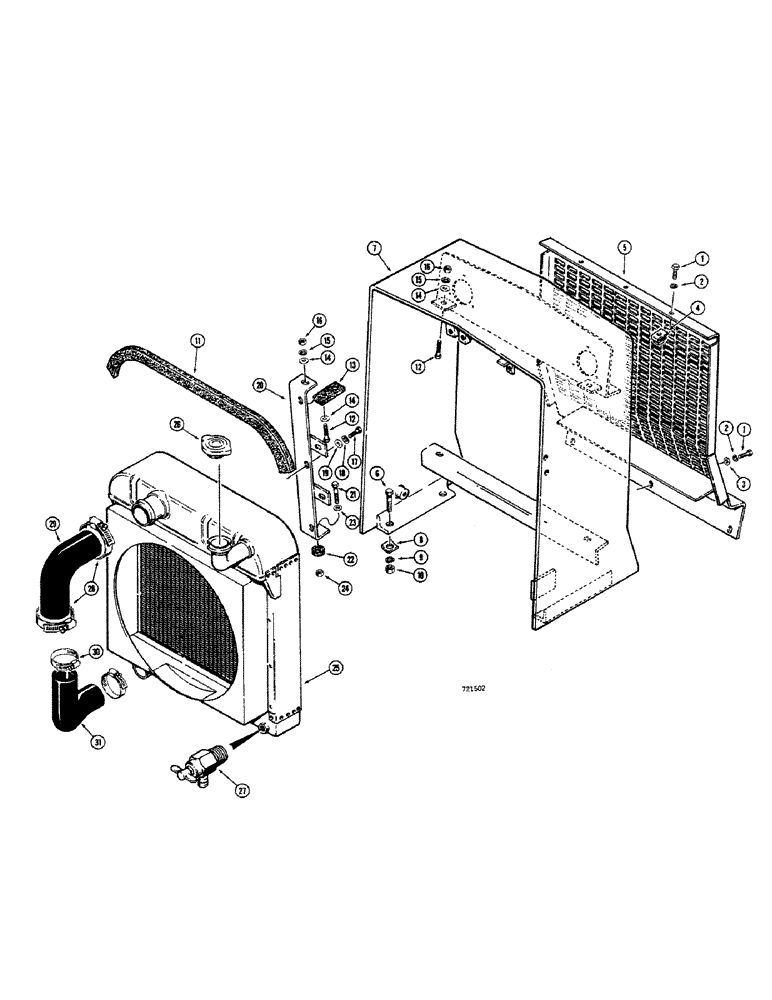

Запчасти Case 680CK (156) - RADIATOR FRAME AND GRILLE, (TRACTOR SER. NO. 9108541 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

2

92-5

LOCK WASHER,5/16"

med sect. 5/16"

6шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

4

131-124

NUT

- Tinnerman (5/16" - 18 NC)

3шт.

5

L51296

GRILLE - radiator

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Frame mounting) Hex, 5/8"-11 x 2", G5

4шт.

7

L51275

FRAME - radiator guard

1шт.

8

195-903

WASHER

- beveled, square

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25-1010

NUT,5/8"-11, G5

4шт.

11

L52062

BAFFLE

- radiator, upper

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13

L51308

STRAP

- upper radiator mounting

2шт.

14

95-6

WASHER,3/8"

- plain () 3/8"

6шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

18

92-5

LOCK WASHER,5/16"

med sect. 5/16"

6шт.

19

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

6шт.

20

L51277

BRACKET - radiator mounting (Sides)

2шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

L52327

WASHER

MOUNT - radiator, rubber (Bottom)

2шт.

23

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

24

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

25

L52053

RADIATOR

- engine cooling

1шт.

26

D25826

CAP

- radiator

1шт.

27

A23655

VALVE

- radiator drain

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - upper radiator hose

2шт.

29

L45794

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Upper 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- hose, lower #28, 1.31/2.25 Type F Worm

2шт.

31

L45810

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Lower 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.
