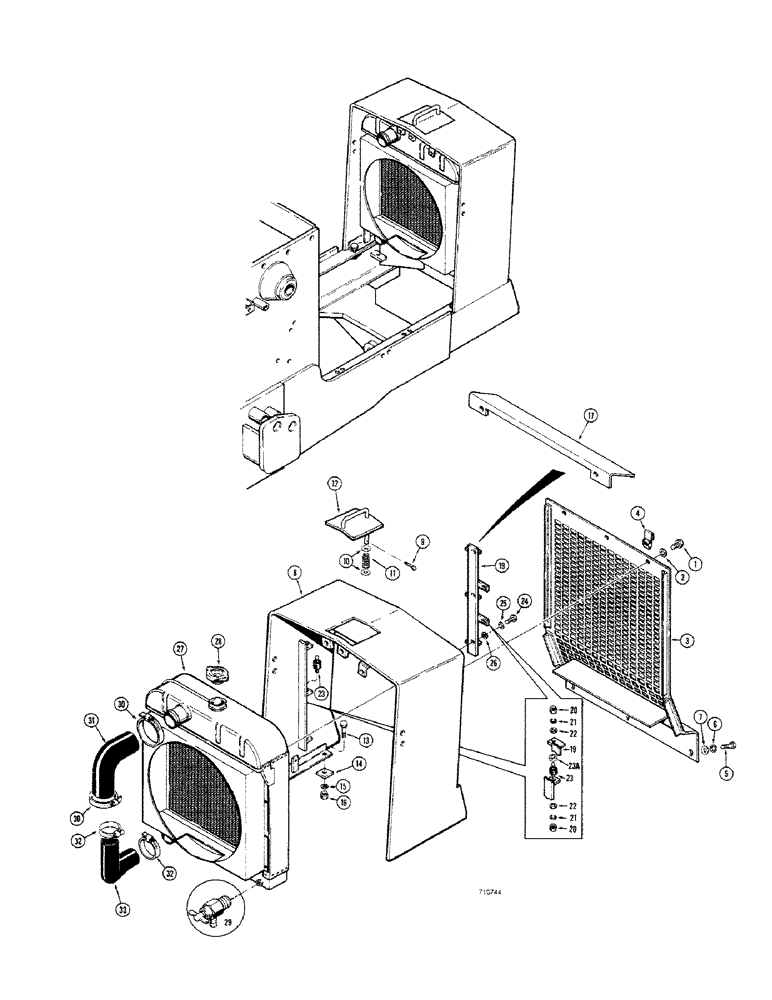

Запчасти Case 680CK (154) - RADIATOR FRAME AND GRILLE, (BEFORE TRACTOR SER. NO. 9108541) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

2

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

3

NSS

NOT SOLD SEPARAT

GRILLE - radiator (When stock is exhausted, order L51287 for service) (Replaces L46129)

1шт.

3

L51287

GRILLE - radiator

1шт.

4

131-124

NUT

- Tinnerman, "u' type (5/16" - 18 NC)

3шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

6

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

3шт.

8

L46128

FRAME - radiator guard

1шт.

9

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

1шт.

10

95-4

WASHER,1/4"

- standard wrot () 1/4"

2шт.

11

R14066

SPRING - cover (Used with L46122 cover)

1шт.

11

L50537

SPRING - cover (Used with L51325 cover)

1шт.

12

L46122

COVER - radiator cap access (Before tractor ser. no. 9106282) service with L51325 cover and L50537 spring

1шт.

12

L51325

COVER - radiator cap access (Tractor ser. no. 9106282 and after)

1шт.

13

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

14

195-903

WASHER

- square, beveled

4шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

25-1010

NUT,5/8"-11, G5

4шт.

17

L46712

BAFFLE - radiator, upper

1шт.

18

L47150

BRACKET - radiator mounting, R.H. (Not shown)

1шт.

19

L47151

BRACKET - radiator mounting, L.H.

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

12шт.

21

92-5

LOCK WASHER,5/16"

med sect. 5/16"

12шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

12шт.

23

L11236

BOLT

BOLT - special, cushion mount

6шт.

23a

T24401

WASHER

SPACER - thick

6шт.

24

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

HHCS - 5/16" - 18 NF x 5/8"

6шт.

25

92-5

LOCK WASHER,5/16"

med sect. 5/16"

6шт.

26

L46137

WASHER - special

6шт.

27

L46138

RADIATOR

- engine and hydraulic oil cooling

1шт.

28

D25826

CAP

- radiator, 7 P.S.I.

1шт.

29

A23655

VALVE

- radiator drain

1шт.

30

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - upper radiator hose

2шт.

31

L45794

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Upper 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.

32

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- hose, lower #28, 1.31/2.25 Type F Worm

2шт.

33

L45810

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Lower 2.50" ID x 6.50", SAE 20R4 Class SC

1шт.
