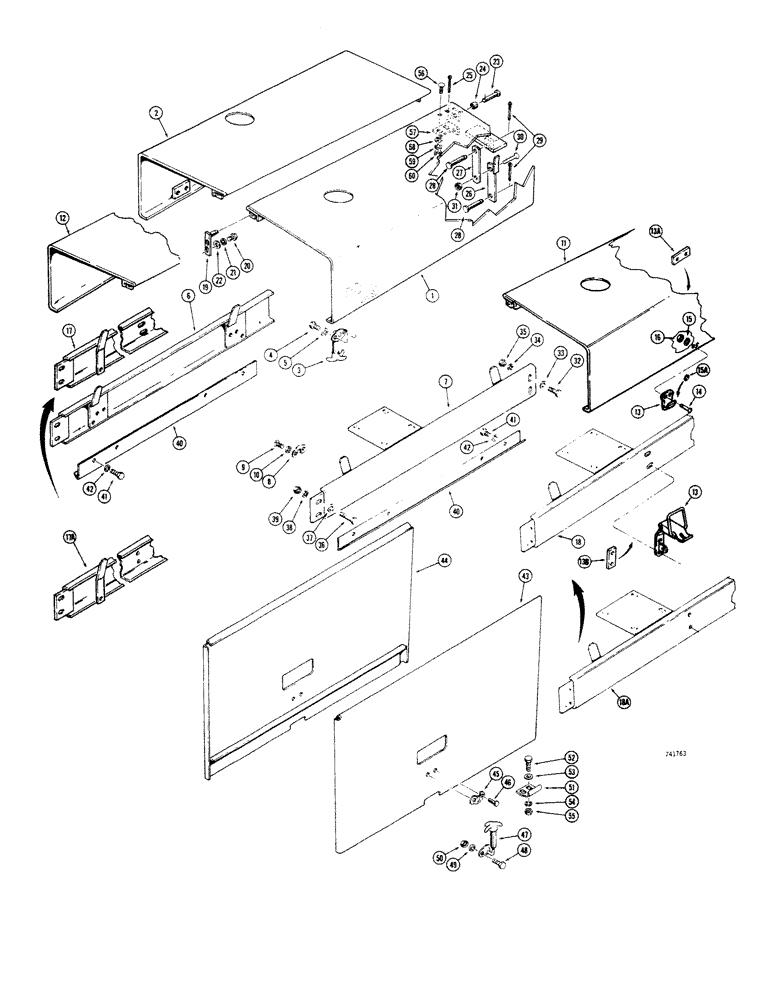

Запчасти Case 680CK (150) - HOOD AND ENGINE SIDE PANELS, EARLY PRODUCTION, (BEFORE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L46440

HOOD - engine, R.H side

1шт.

2

L46441

HOOD - engine, L.H. side

1шт.

3

A17232

LATCH ASSY.

LATCH - hood

4шт.

4

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

HHCS - 1/4" - 20 NC x 3/8"

8шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

L16386

CHANNEL - hood support, L.H.

1шт.

7

L46434

CHANNEL - hood support, R.H.

1шт.

8

A17237

HOOK

CATCH - hood latch

4шт.

9

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

RHMS - #10 - 24 NC x 3/8" (Zinc plated)

8шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

11

L51704

HOOD - engine, R.H. side (Tractor sn. 9108070 thru 9108412), late production

1шт.

11

L53027

HOOD - engine,R.H. side (Tractor sn. 9108413 and after), late production

1шт.

12

L51706

HOOD

- engine, L.H. side (When stock is exhausted, order L53275 for service), late production

1шт.

12

L53275

HOOD

- engine, L.H. side, late production

1шт.

13a

L53257

PLATE - hood latch (If used), late production

2шт.

13b

L53280

SPACER - hood latch mounting (If used), late production

2шт.

14

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - #10 - 24 NC x 3/4" (Used without 13A and 13B), late production

8шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

RHMS - #10 - 24 NC x 1" (Used with 13A and 13B), late production

8шт.

15

195-12

WASHER,#10

- med. sect. lock, (If used), late production #10

8шт.

15a

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (If used), late production Ext-Int Tooth, #10

8шт.

16

86625057

NUT,#10-24, GB

NUT, LOCK, , Late production #10-24, GB

4-8шт.

17

L51708

CHANNEL - hood support, L.H. (Slotted center holes), late production

1шт.

17a

L53277

CHANNEL - hood support, L.H. (Round center holes), late production

1шт.

18

L51711

SUPPORT

CHANNEL - hood support, R.H. (Slotted center holes), late production

1шт.

18a

L53279

SUPPORT

CHANNEL - hood support, R.H. (Round center holes), late production

1шт.

19

L16389

PIN - pivot, hood, used on all models

2шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Used on all models Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

med. sect., used on all models 3/8"

4шт.

22

95-6

WASHER,3/8"

- plain (), used on all models 3/8"

8шт.

23

T11231

AXLE PIN

PIN - clevis (7/16"), used on all models

2шт.

24

D44696

BUSHING

SPACER - hood, used on all models

2шт.

25

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Used on all models 1/8" x 1"

2шт.

26

L17619

LINK - hood support, lower, used on all models

1шт.

27

L17622

DRAG LINK

LINK - hood support, upper, used on all models

1шт.

28

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4"), used on all models

2шт.

29

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), , Used on all models 1/16" x 3/4"

2шт.

30

78-410

SCREW - machine, truss head (1/4" - 28 NF x 5/8"), used on all models

1шт.

31

131-30

LOCK NUT,1/4"-28, G8

NUT - hex, lock (1/4"-28 NF), used on all models

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on all models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

33

195-33

WASHER,1/2"

- plain (), used on all models 1/2"

4шт.

34

92-8

LOCK WASHER,1/2"

med. sect., used on all models 1/2"

4шт.

35

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on all models

4шт.

36

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", used on all models

4шт.

37

95-8

WASHER,1/2"

- plain, used on all models 1/2"

4шт.

38

92-8

LOCK WASHER,1/2"

med. sect., used on all models 1/2"

4шт.

39

25-108

NUT,1/2"-13, G5

- (1/2" - 13 NC), used on all models

4шт.

40

L46825

SUPPORT - hood and side panel, used on all models

2шт.

41

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2", used on all models

4шт.

42

92-6

LOCK WASHER,3/8"

med. sect., used on all models 3/8"

4шт.

43

L25710

PANEL ASSY.

PANEL - engine side, R.H., used on all models

1шт.

44

L25709

PANEL - engine side, L.H., used on all models, Includes: Ref. 45 and 46

1шт.

45

A17237

HOOK

CATCH - panel latch, used on all models

1шт.

46

151-551

RIVET - button head (3/16" dia. x 1/8"), used on all models

2шт.

47

A17232

LATCH ASSY.

LATCH - engine side panel, used on all models

2шт.

48

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on all models Hex, 1/4"-20 x 1", G5

4шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on all models 1/4"

4шт.

50

25-104

NUT,1/4"-20, G5

Used on all models 1/4"-20, G5

4шт.

51

L11440

RETAINER

- side panels, used on all models

4шт.

52

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on all models Hex, 1/4"-20 x 1", G5

8шт.

53

195-18

WASHER,1/4"

- plain (), used on all models 1/4"

8шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on all models 1/4"

8шт.

55

25-104

NUT,1/4"-20, G5

Used on all models 1/4"-20, G5

8шт.

56

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - carriage (5/16" - 18 NC x 7/8"), used on all models

4шт.

57

L46384

BRACKET

- pivot, hood mounting (If used), used on all models

2шт.

58

195-521

WASHER,5/16", SAE

- plain (5/16"), used on all models

4шт.

59

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on all models 5/16"

4шт.

60

9635082

NUT,5/16" - 18, Gr 5

Used on all models 5/16"-18, G5

4шт.
