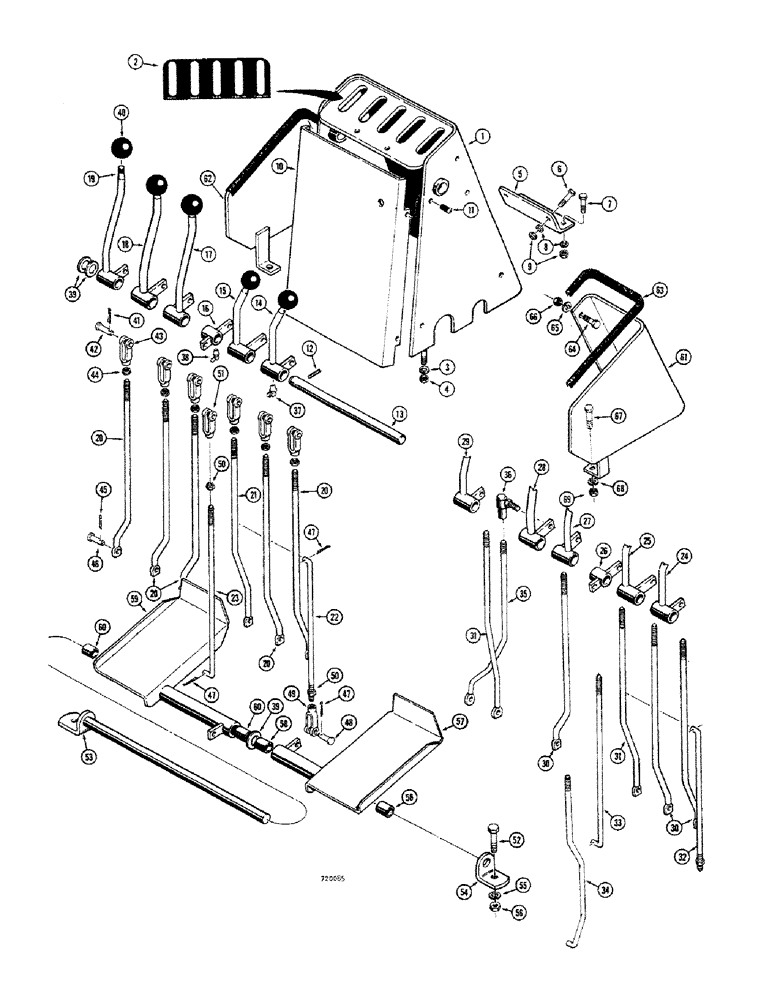

Запчасти Case 680CK (228) - INDIVIDUAL LEVER BACKHOE CONTROL, (FOOT SWING), CONSOLE (84) - BOOMS, DIPPERS & BUCKETS

1

D45375

CONSOLE - backhoe control

1шт.

2

321-1264

DECAL

- control console

1шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

5

D38292

COVER PLATE

BRACKET - console mounting (Early production)

1шт.

5

L53462

BRACKET - console mounting (Late production) has tapped block for hose clamp

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

10

D40292

COVER - console, rear (Models without dipper light)

1шт.

10

L43733

COVER - console, rear (Models with dipper light)

1шт.

11

75-58

BOLT (MACHINE),5/16" x 1/2"

RHMS - 5/16" - 18 NC x 1/2"

4шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

D30817

SHAFT

- control levers

1шт.

14

L46693

HANDLE

LEVER - control, R.H. stabilizer, control and connecting rods early production

1шт.

15

L46692

HANDLE

LEVER - control. L.H. stabilizer, control and connecting rods early production

1шт.

16

D48270

LEVER

- pivot, swing, control and connecting rods early production

1шт.

17

L46694

HANDLE

LEVER - control, boom, control and connecting rods early production

1шт.

18

L46695

HANDLE

LEVER - control, dipper, control and connecting rods early production

1шт.

19

L46696

HANDLE

LEVER - control, bucket, control and connecting rods early production

1шт.

20

D45372

ROD - connecting, R.H. and L.H. stabilizer, boom, dipper and bucket control, control levers and connecting rods early production

5шт.

21

D38314

ROD

- connecting, swing control, control levers and connecting rods early production

1шт.

22

D21762

ROD

- connecting, R.H. swing control, control levers and connecting rods early production

1шт.

23

D30819

ROD

- connecting, L.H. swing control, control levers and connecting rods early production

1шт.

24

L46693

HANDLE

LEVER - control, R.H. stabilizer, control and connecting rods late production

1шт.

25

L46692

HANDLE

LEVER - control, R.H. stabilizer, control and connecting rods late production

1шт.

26

D48270

LEVER

- pivot, swing, control and connecting rods late production

1шт.

27

L46694

HANDLE

LEVER - control, boom, control and connecting rods late production

1шт.

28

L46695

HANDLE

LEVER - control, dipper, control and connecting rods late production

1шт.

29

L46696

HANDLE

LEVER - control, bucket, control and connecting rods late production

1шт.

30

D45372

ROD - connecting, R.H. and L.H. stabilizer and boom, control levers and connecting late production

3шт.

31

D38314

ROD

- connecting, swing and bucket control, control levers and connecting late production

2шт.

32

D21762

ROD

- connecting, R.H. swing control, control levers and connecting late production

1шт.

33

D30819

ROD

- connecting, L.H. swing control, control levers and connecting late production

1шт.

34

L50123

ROD - connecting, L.H. swing control (Hydra-Guide models only), control levers and connecting late production

1шт.

35

L51110

ROD - connecting, dipper control, control levers and connecting late production

1шт.

36

D38296

JOINT

BALL JOINT - dipper control rod, swing control

1шт.

37

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degrees, swing control

5шт.

38

219-39

FITTING

- grease, 45 degrees, swing control

1шт.

39

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16"), swing control

1шт.

40

D49996

KNOB

- control lever, swing control

5шт.

41

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), , Swing control 3/32" x 5/8"

6шт.

42

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting, swing control 3/8" x 1.060"

6шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod, swing control

6шт.

44

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF), swing control

6шт.

45

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), , Swing control 3/32" x 5/8"

6шт.

46

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting, swing control 5/16" x .940"

6шт.

47

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), , Swing control 3/32" x 5/8"

3шт.

48

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting, swing control 3/8" x 1.060"

1шт.

49

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod, swing control

1шт.

50

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF), swing control

2шт.

51

D37600

YOKE

- connecting rod, swing control

1шт.

52

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Swing control Hex, 3/8"-16 x 2", G5

2шт.

53

D40859

SHAFT

- swing pedals, swing control

1шт.

54

D40858

BRACKET - shaft, swing control

1шт.

55

92-6

LOCK WASHER,3/8"

med. sect., swing control 3/8"

2шт.

56

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), swing control

2шт.

57

D47224

PEDAL

- swing, R.H., swing control, Includes: Ref. 58

1шт.

58

D30706

BUSHING

- pedal, swing control

2шт.

59

D47225

PEDAL - swing, L.H., swing control, Includes: Ref. 60

1шт.

60

D30706

BUSHING

- pedal, swing control

2шт.

61

L48666

GUARD - swing pedal, R.H., swing control

1шт.

62

L48667

GUARD - swing pedal, L.H., swing control

1шт.

63

D47936

LINING

TRIM - pedal guard, swing control

2шт.

64

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Swing control Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

65

92-6

LOCK WASHER,3/8"

med. sect., swing control 3/8"

4шт.

66

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), swing control

4шт.

67

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4", swing control

2шт.

68

92-8

LOCK WASHER,1/2"

med. sect., swing control 1/2"

2шт.

69

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC), swing control

2шт.
