Артикул
Название
Примечание
Количество
1
L47214

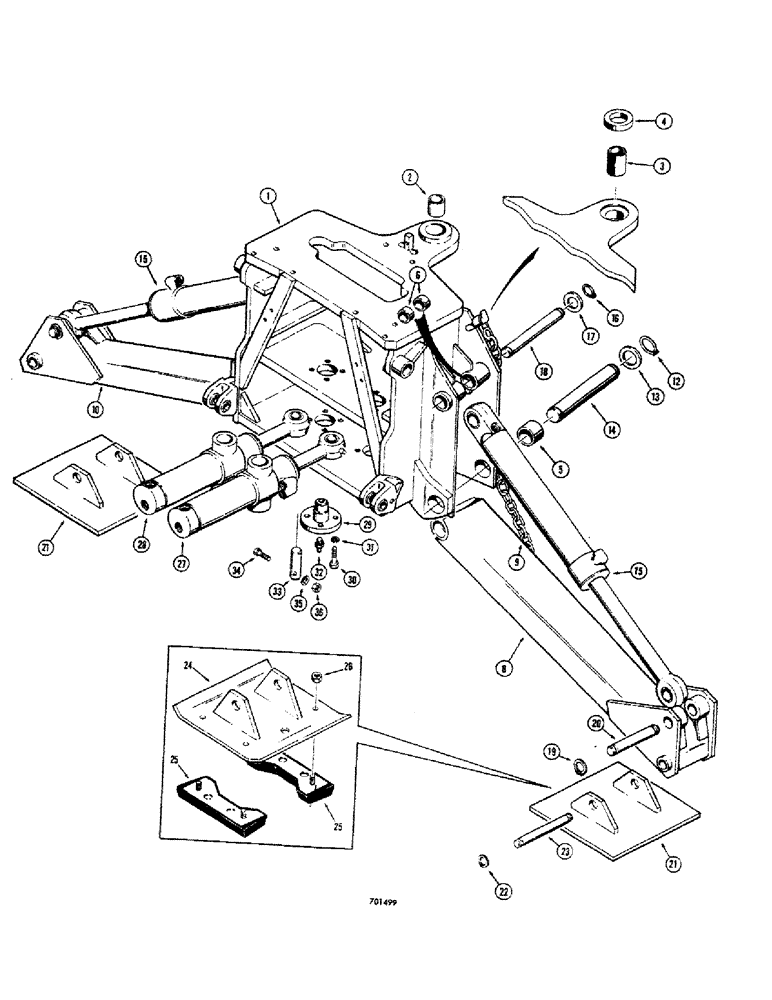

FRAME - backhoe mounting, Includes: Ref. 2 - 6
1шт.
2
D33023
BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L
- upper, frame to swing tower
1шт.
3
D43508
BUSHING
- lower, frame to swing tower
1шт.
4
D44613
SPACER
WASHER - special, lower mounting
1шт.
5
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- stabilizer leg mounting
4шт.
6
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
- stabilizer cylinder mounting
4шт.
8
D43292
SUPPORT ASSY.
LEG - stabilizer, R.H., Includes: Ref. 9
1шт.
9
D43895
CHAIN (AG)
CHAIN - transport
1шт.
10
D43291
SUPPORT ASSY.
LEG - stabilizer, L.H., Includes: Ref. 11
1шт.
11
D43895
CHAIN (AG)
CHAIN - transport (Not shown)
1шт.
12
D26919
SNAP RING,#200, Ext
RING, Snap, , pin #200, Ext
4шт.
13
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, steel (2-1/16")
4шт.
14
D45523
PIN,50.8mm OD x 276.35mm L
- stabilizer to mounting frame
2шт.
15
REF
INSTRUCTION
CYLINDER - stabilizer (See Figures 312 thru 316 for cylinders)
2шт.
16
D25280
SNAP RING,#175, Ext
RING, Snap, , pin #175, Ext
4шт.
17
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
- flat, steel (1-5/16")
4шт.
18
D37611
PIVOT PIN,44.45mm OD x 255.59mm L
PIN - stabilizer cylinder, closed end
2шт.
19
D25280
SNAP RING,#175, Ext
RING, Snap, , pin #175, Ext
4шт.
20
D42912
AXLE PIN
PIN - stabilizer cylinder, rod end
2шт.
21
D42767
PAD
FOOT - stabilizer, cleated
2шт.
22
D26918
SNAP RING,#125, Ext
RING, Snap, , pin #125, Ext
4шт.
23
D42785
AXLE PIN
PIN - stabilizer foot
2шт.
24
D43295
FOOT - stabilizer, street and cemetery pad (Optional)
2шт.
25
D40469
SHOE (ASSY)
PAD - rubber, D43295 stabilizer foot (Optional)
4шт.
26
D29712
SPECIAL NUT
- hex., special
8шт.
27
REF
INSTRUCTION
CYLINDER - swing, R.H. (See Figures 300 thru 308 for cylinders)
1шт.
28
REF
INSTRUCTION
CYLINDER - swing, L.H. (See Figures 300 thru 308 for cylinders)
1шт.
29
D48220
PIN
- swing, Serial Range: cylinder-frame
4шт.
30
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
16шт.
31
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
16шт.
32
219-39
FITTING
- grease, 45 degrees (1/8" NPT) top (Not shown)
2шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT) bottom
2шт.
33
D47866
PIN,38.1mm OD x 139.7mm L
- swing cylinder to swing tower
2шт.
34
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
HHCS - 5/8" - 11 NC x 4"
2шт.
36
25-1010
NUT,5/8"-11, G5
2шт.
Выбрано товаров: 36
