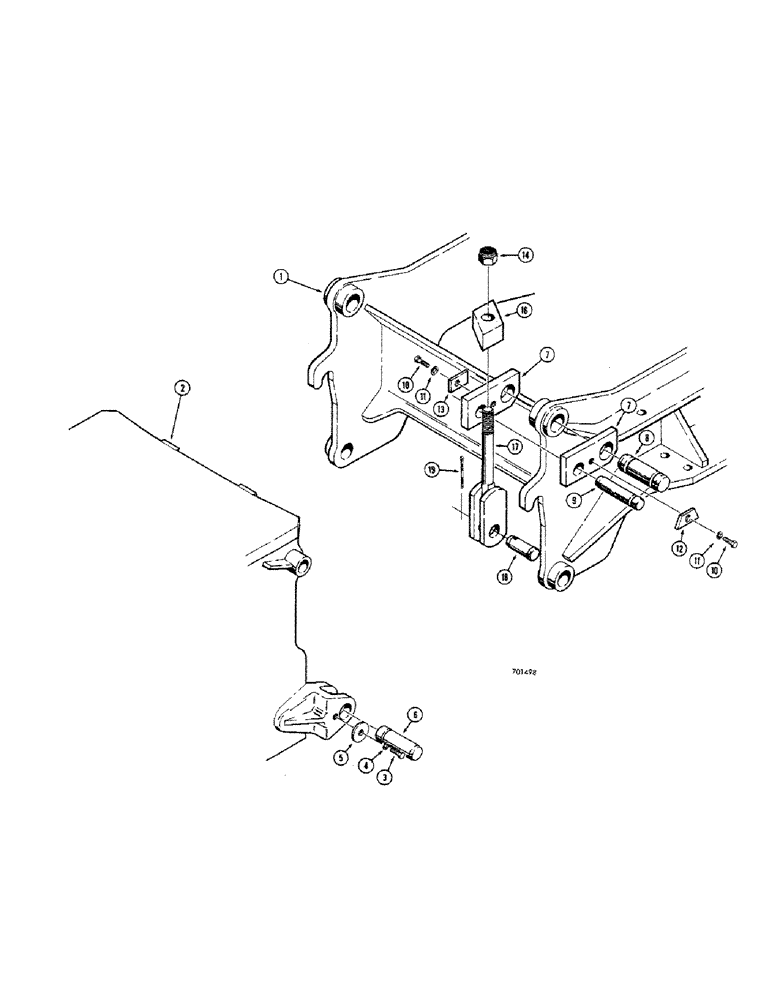

Запчасти Case 680CK (210) - BACKHOE MOUNTING PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

L46228

CHASSIS - engine frame and loader (See Figure 146 for related parts)

1шт.

2

L47214

MOUNTING FRAME - backhoe (See Figure 212 for related parts)

1шт.

3

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

5

L40681

LOCK WASHER

- pin locking, lower

2шт.

6

L47752

PIN

- lower mounting, Serial Range: frame-chassis

2шт.

7

L47736

PLATE ASSY.

PLATE - linking, chassis to mounting frame

4шт.

8

L47820

PIN

- upper mounting (At chassis)

2шт.

9

L47873

AXLE PIN

PIN - upper mounting (At frame)

2шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

12

L50043

BLOCK

PLATE - pin lock, outer

2шт.

13

L47874

PLATE - pin lock, inner

2шт.

14

131-82

NUT,1"-8

NUT - hex., lock (1" - 8 NC)

2шт.

16

L53087

BRACKET

BLOCK - retaining, tension rod

2шт.

17

L47824

ROD

- tension, Serial Range: frame-chassis

2шт.

18

L10994

AXLE PIN

PIN -, Serial Range: rod-chassis

2шт.

19

132-99

COTTER PIN,3/16" x 2"

PIN, Split (Cotter), 3/16" x 2"

2шт.
